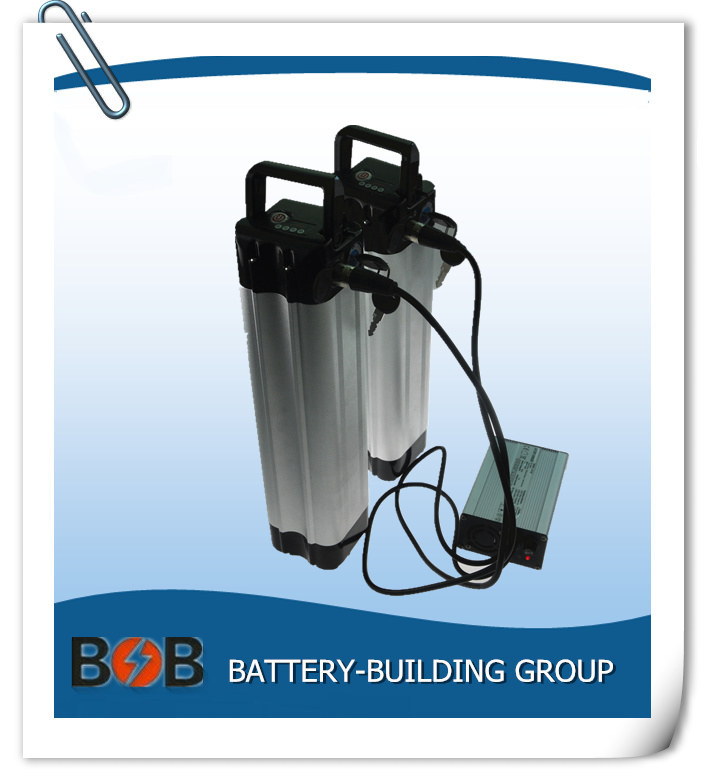

12s3p 36V 350W LiFePO4 Battery Pack

Prod Model:	BBG-SF-LFP3609
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Application:	E-Bike, E-Scooter
Structure:	Ifr26650 3000mAh 10s3p
Dimension:	76X111X390mm
Working Current:	15A
Connection Mode:	Series and Parallel
Type:	LiFePO4
Usage:	E-Bike
Standard Voltage:	36V
Rated Capacity:	9ah
Electrolyte:	LiFePO4

Product Description

12S3P 36V 350W LiFePO4 Battery Pack

36V Battery Pack Specification :
1. Nominal voltage:36Volts.
2. Rated capacity:9Ah.(Min)
3. Dimension: 76x111x390mm
4. Operating temperature:- 20 °C to 60 °C
5. Charge temperature: 0 °C to 45 °C
6. Storage temperature: -20 °C to 45 °C
7.Operating humidity:5% to 90%
8.Continuous discharge current:15A
9.Instantaneous maximum current:35±5A
10.Cut-off voltage:27-30V(Discharge protection voltage)
11..Charging voltage:43.8V(Full voltage)
12.Combination:12S3P
13.Cycle life:The cycle life can reach 2000 times with 80% DOD at recommended charge and discharge under 25ºC temperature

Application:
·Electric Vehicles, such as E-bike, E-scooters, E-cars, E-bus;
·Electric boats, such as trolling fishing boat;
·Robots for industries and military;
·Remote data transfer system;
·Satellite communication station;
·Un-manned submarine;
·Un-manned aircrafts;
·Power tools, such as drilling, cutting and polishing tools;
·Power station for low temperature application, such as -40;
·Power supplier for Training systems, such as Torpedo Trainer

Advantages:
·Fast charging
·Large overcharge tolerance and safe performance
·Self balance
·Simplifying battery management system (BMS) and battery charger
·Longer cycle life; It extends its cycle life up to 2000cycles
·High temperature performance

Shipping:
1. We will ship the products within 15 workdays after receipt of payment.
2. We can ship to you by UPS/FEDEX/DHL and so on. Other shipping terms can also be arranged according to specific requirements.
3. We are not responsible for any accidents, delays or other issues that are the responsiblility of the shipping service.

Payment:
1. We accept T/T, PAYPAL, Western Union, Cash and so on.
2. If you prefer other payment terms, please contact us.

How to order?
1. Please let us know what kind of model you need?
2. We make invoice for you.
3. Please check and confirm the invoice.
4. Once confirmed the order, please pay it soon.
5. After payment, all goods will be sent to you in 2 weeks.

Moew models:

Model	Style	Material	Voltage	Capacity	Dimension	Weight	Charger
					Include BMS and housing
			(V)	(Ah)	L*W*K  (mm)	(kg)	(A)
BBG-SF-LFP2408	Silver fish	LiFePO4	24	8	75*110*378	4	2
BBG-SF-LFP24081	Silver fish	LiFePO4	24	8	89*89*401	4	2
BBG-SF-LN2410	Silver fish	LNCM	24	10	89*89*401	3.5	2
BBG-RR-LFP2408	Rear rack	LiFePO4	24	8	70*150*245	4	2
BBG-RR-LN2410	Rear rack	LNCM	24	10	70*150*246	3.5	2
BBG-SF-LFP2410	Silver fish	LiFePO4	24	10	75*110*378	4.2	2
BBG-LF-LFP2410	Frog	LiFePO4	24	10	80*150*180	4.2	2
BBG-RR-LFP2410	Rear rack	LiFePO4	24	10	70*150*245	4.2	2
BBG-WB-LFP2410	water bottle	LiFePO4	24	10	91*91*410	4.5	2
BBG-SF-LFP2420	Silver fish	LiFePO4	24	20	135.5*88.8*395	6	5
BBG-SF-LFP3608	Silver fish	LiFePO4	36	8	75*110*385	4.2	2
BBG-RR-LFP3608	Rear rack	LiFePO4	36	8	70*150*365	4.2	2
BBG-LF-LFP3606	Frog	LiFePO4	36	6	80*150*180	4	2
BBG-SF-LFP3610	Silver fish	LiFePO4	36	10	75*110*385	4.5	2
BBG-RR-LFP3610	Rear rack	LiFePO4	36	10	70*150*365	4.5	2
BBG-WB-LN3610	water bottle	LNCM	36	10	91*91*435	4	2
BBG-FB-LN3610	Frog	LNCM	36	10	80*150*180	4	2
BBG-RR-LFP3612	Rear rack	LiFePO4	36	12	69*150*480	4.5	2
BBG-SF-LFP3612	Silver fish	LNCM	36	12	89*85*385	4.5	2
BBG-RR-LN3614	Rear rack	LiFePO4	36	14	68*148*385	5.5	3
BBG--RR-LFP4810	Rear rack	LiFePO4	48	10	68*150*480	7	2
BBG-LFP4820	Epoxy board & PVC packaged	LiFePO4	48	20	320*140*150	14.5	4
