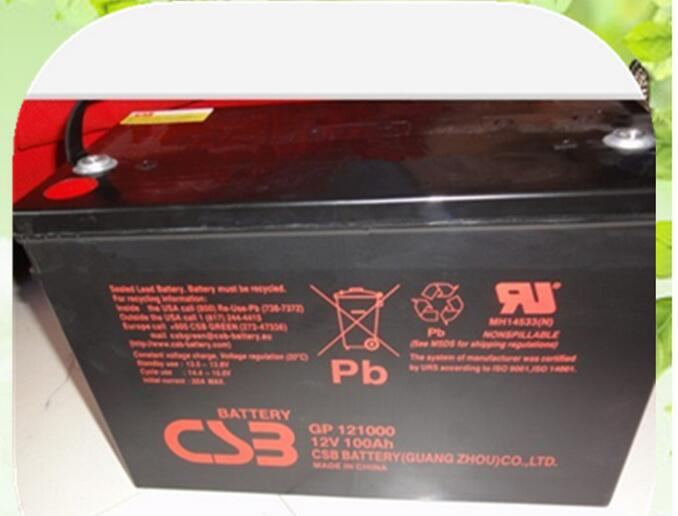

12V 100ah Csb Battery (GPL121000)

Name: 12V 100ah Csb Battery (GPL121000)
Brand: all-electronics-online.com
SKU: 816599865
Availability: InStock
Rating: 4.5 (137 reviews)

Price:	US $ 138-155/Piece
Min Order:	5/Piece
Pay Type:	T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	GPL121000
Voltage:	12V
Capacity:	100ah
Type:	Lead-Acid Batteries
Usage:	Electric Bicycle
Nominal Voltage:	12V
Shape:	Cylindrical Battery
Rechargeable:	Chargeable

Product Description

GPL121000 is a general purpose battery up to 10 years expected life under normal float charge.
As with all CSB batteries, all are rechargeable, highly efficient, leak proof and maintenance free.

Spec

Voltage

12 V

Amp.	100Ah @ 20hr-rate to 1.75V per cell @ 25°C (77°F)

Weight (kg)

Approx. 33.5kg. (73.85 lbs)

Maximum current

800A/130A (5sec.)

(mΩ)	Approx. 3.5mΩ

Working temperature

Discharge:-15ºC~50ºC(5°F~122°F)
Charge:-15ºC~40ºC(5°F~104°F)
Storage:-15ºC~40ºC(5°F~104°F)

Normal working temp.

25°C ± 3°C (77°F ± 5°F)

Float Charging condition

13.5 to 13.8 VDC/unit Average at 25°C (77°F)

Suggested max.charging current

30A

Equalizing charging condition

14.4 to 15.0 VDC/unit Average at 25°C (77°F)

Self discharge

it should be more than 75% of the capacity that before storage after stocked for 6 months at ambient temp. 25ºC

Terminal

F1/F2-Faston Tab187/250

Groove material

ABS(UL94-HB) & Flammability resistance of(UL94-V0) can be available upon request.

Constant current discharge characteristics:Unit: Amp.(25°C,77°F)

Termination Voltage/ Time	5MIN	10MIN	15MIN	30MIN	60MIN	90MIN	2HR	3HR	5HR	8HR	10HR	20HR
1.60V	35.60	22.00	16.50	9.61	5.51	3.92	3.08	2.13	1.34	0.92	0.77	0.45
1.67V	33.10	21.00	15.90	9.36	5.41	3.85	3.02	2.08	1.31	0.90	0.76	0.44
1.70V	31.90	20.50	15.60	9.24	5.37	3.82	3.00	2.06	1.30	0.89	0.75	0.43
1.75V	29.60	19.60	15.10	9.03	5.30	3.77	2.96	2.02	1.27	0.88	0.74	0.42
1.80V	27.20	18.60	14.40	8.77	5.23	3.71	2.91	1.98	1.25	0.87	0.73	0.42
1.85V	24.50	17.40	13.70	8.44	5.14	3.66	2.87	1.95	1.22	0.86	0.71	0X

Constant power discharge characteristic: Unit W (25°C,77°F)

Termination voltage/ Time	5MIN	10MIN	15MIN	30MIN	60MIN	90MIN	2HR	3HR	5HR	8HR	10HR	20HR
1.60V	360.00	245.00	183.00	108.00	64.40	47.10	37.70	26.60	17.30	11.80	9.80	5.37
1.67V	340.00	235.00	177.00	106.00	63.60	46.40	37.10	26.30	17.00	11.60	9.68	5.27
1.70V	331.00	231.00	174.00	105.00	63.10	46.10	36.90	26.20	16.90	11.50	9.54	5.23
1.75V	313.00	222.00	170.00	103.00	62.40	45.50	36.40	25.90	16.70	11.40	9.47	5.15
1.80V	295.00	213.00	165.00	101.00	61.70	45.00	35.90	25.60	16.50	11.30	9.40	5.07
1.85V	276.00	202.00	158.00	99.00	60.80	44.30	35.40	25.20	16.30	11.20	9.29	4.99
