12V 100ah Deep Cycle Lithium Battery Recahargeable Batteries

Name: 12V 100ah Deep Cycle Lithium Battery Recahargeable Batteries
Brand: all-electronics-online.com
SKU: 753282235
Availability: InStock
Rating: 4.4 (121 reviews)

Price:	US $ 580/Piece
Trade Terms:	FOB,CIF,EXW
Min Order:	5/Piece
Pay Type:	T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	WTM-12V 100AH
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Capacity:	100ah
Rated Voltage:	12V
Size:	329172214mm
Weight:	14kg
Standar:	UL, Ce, RoHS, ISO9001, Ts16949, SGS, BV, IEC62133
Warranty:	5-8years
Life Cycles:	2000times
Application:	E-Car, E-Bike, Scooter, E-Walker, UPS
Lead Time:	25days
Dsicharge Current:	<3c
Usage:	E-Bike
Nominal Voltage:	12V
Discharge Rate:	Medium Discharge Rate
Shape:	Cylindrical Battery
Rechargeable:	Chargeable
Electrolyte:	LiFePO4
Type:	Lithum Iron Phoshate Battery

Product Description

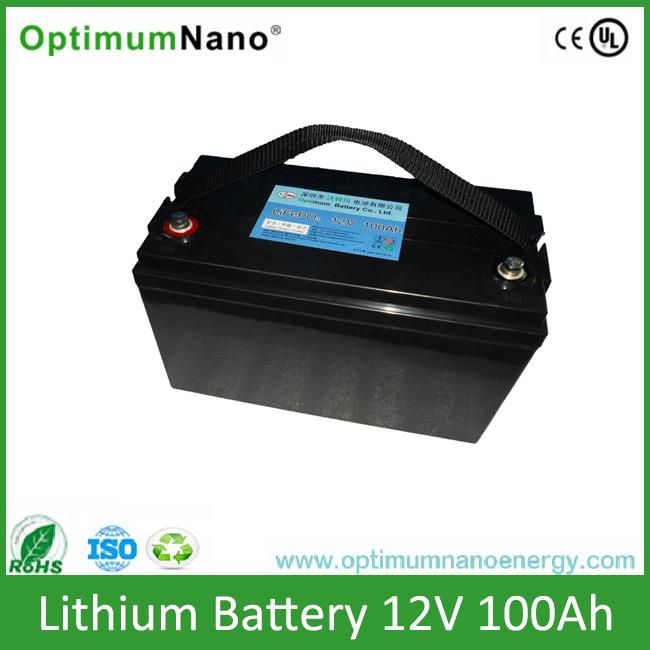

12v 100ah Deep Cycle Lithium Battery Recahargeable Batteries

Product description:

Key Features:

Attractive cycle life

Extended safety performance
Wide operating temperature range

Unrivalled high temperature performance

Green energy without metal contaminant

High capacity

Steady output voltage

Little self-discharge

Double safety protection

Withstanding very high level of vibrations and shocks

Specification:

Electrical Charateristics

Nominal Voltage	12V
Nominal Capacity (at 0.5C, 25 degC)	100Ah
DC Internal Resistance	≤50mΩ
Expected Cycle Life	More than 2000 cycles, with 1C charge and discharge rate, at 25 ºC

Mechanical Characteristics

Height	214±2mm
Width	172±2mm
Length	329±2mm
Net Weight	~14Kg

Operation Conditions

Charge Method	CC-CV
Max. Charge Voltage	14.6V
Continuous Charge Current	Max. 20A
Charge Temperature	0ºC~45ºC
Continuous Discharge Current	Max. 80A
Peak Instant Discharge Current(10 Seconds)	100A,
Discharge Cut-off Voltage	10.0V
Discharge Temperature	-20ºC~65ºC
Storage Temperature	-20ºC~45ºC
Self Discharge (Stored at 50% SOC)	<= 3%/month

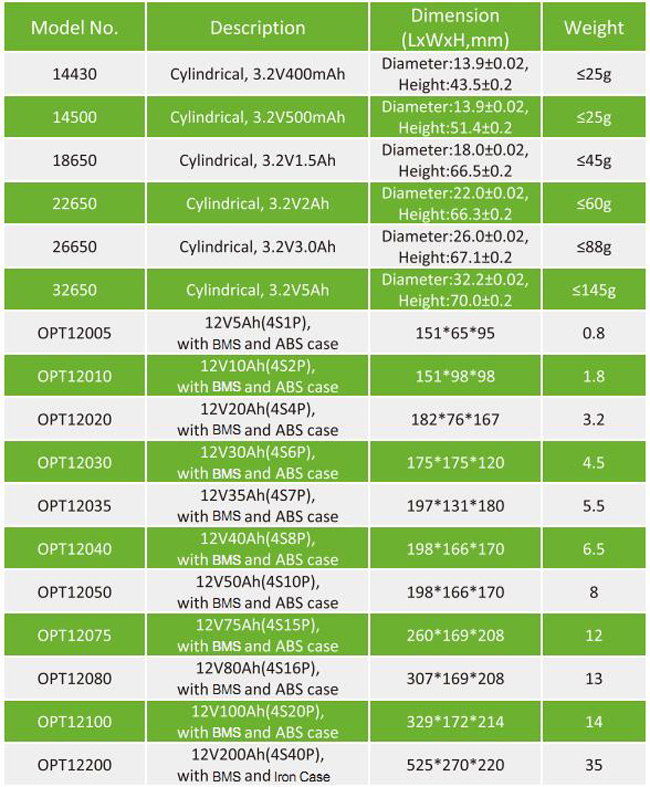

Product :

Certificate :

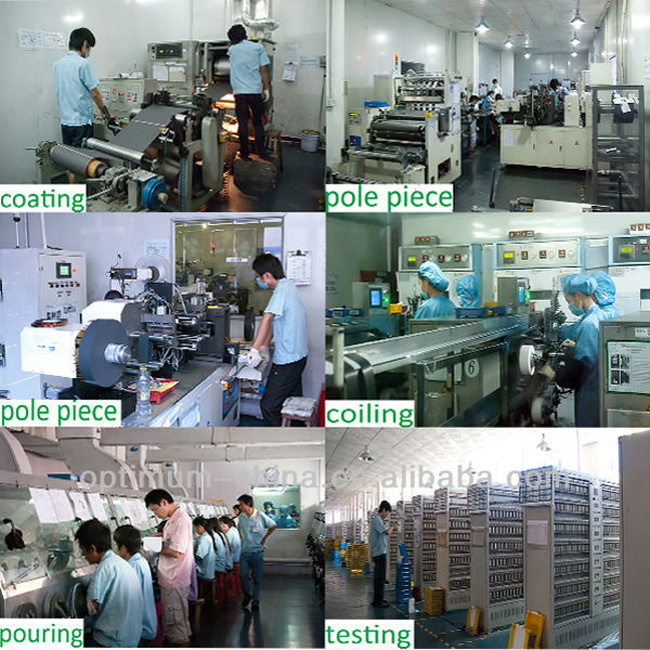

Workshop:

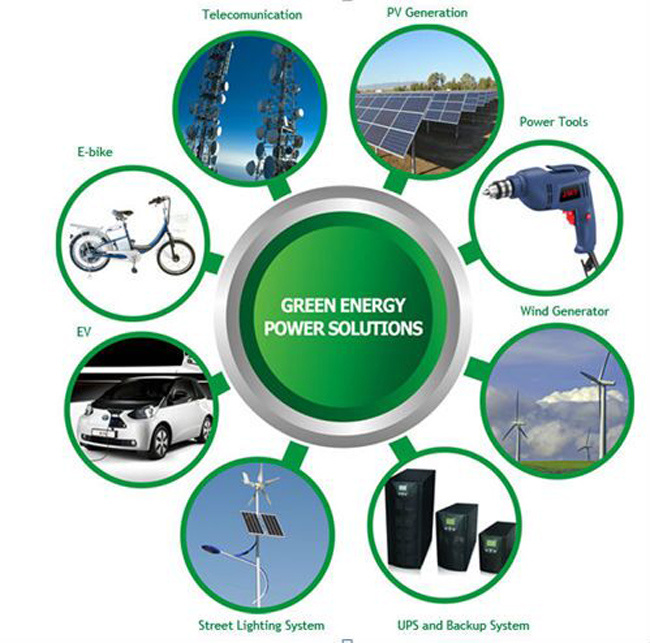

Application :

Welcome to visit our website : optimumnanolithiumbattery.com

Company Name: OptimumNano Energy Co., Ltd

Name of Exhibition: The China Sourcing Fair

Address: Hong Kong Asia Exhibition Hall

Booth No: At at 9B05

Dates: Oct 11-14, 2015(4 Days)

In 2002, OptimumNano Energy Co., Ltd started the battery business in Shenzhen.

In 2006, OptimumNano began to focus on the production, Engineering, researching and manufacturing of LiFePO4-Lithium Iron Phosphate Battery, we believe the LiFePO4 shall be the best Lithium-ion Power Solution in the future

In 2008, OptimumNano finished the first Pure Electric Bus with LiFePO4 Battery, demonstrating and running for Shanghai EXPO.

In 2009, OptimumNano was awarded the honor of "National High-tech Enterprise".

In 2011, OptimumNano was the main vehicle power battery supplier of the 26th World Universiade Games.

In 2012, OptimumNano was selected as one the supporting company of "2012 New Energy Automotive Industry Technology Innovation Project", which was launched by the Ministry of Finance, the Ministry of Industry and the Ministry of Science and Technology.

In 2013, OptimumNano moved to new and bigger factory to meet our 500, 000 PCS daily production requirement.

In 2014, Shenzhen mayor Mr. Wang Rong and others come to our company to make researches and guidances and gave high praise for our company achievement in the new energy industry

OptimumNano set up the workstation for Academician Material Application. With around 500 R&D staffs, now we have more than 200 patents at home and abroad.

After over 13 years' development, OptimumNano has offices in local 31 cities, distribute our LiFePO4 batteries to over 40 countries in the world.
