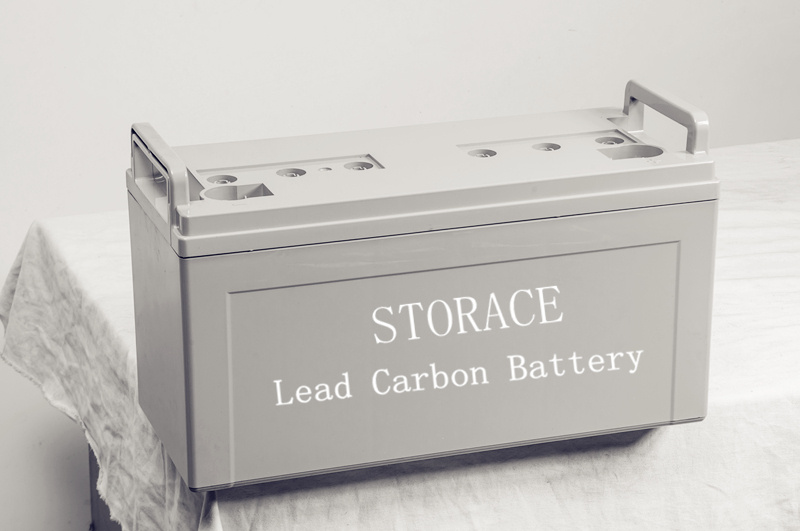

12V 100ah Lead Carbon Battery

Name: 12V 100ah Lead Carbon Battery
Brand: all-electronics-online.com
SKU: 765308485
Availability: InStock
Rating: 4.8 (92 reviews)

Price:	US $ 104-135/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	50/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	SRC100-12
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Size:	407174209mm
Weight:	34.20/37.00kg
Color:	Black / Dark Gray
Cell:	6
Sealing:	Glue Sealing
Terminal Type:	Copper
Separator:	PE
Battery Case:	ABS
Safety:	Explosion-Proof
Plate:	Flat Plate
Usage:	Solar
Nominal Voltage:	12V
Discharge Rate:	Low Discharge Rate
Rechargeable:	Chargeable
Type:	Lead Carbon Batteries
Shape:	Rectangle

Product Description

12v100ah lead carbon Battery

(SRC100-12)

lead carbon series ups batteries are designed with AGM (Absorbent Glass Mat) technology, high performance plates and electrolyte to gain extra power output for common power backup system applications.

The advantages of Lead carbon battery:
1).The cycle life is over 2,500 cycles for 50% DOD.
2).Partial State of Charge (PSoC) : Lead sulfate formation is inevitable under PSOC operation. (Lead sulfate formation is one of the major failure reasons of AGM battery.)
3).Carbon battery wide operation temperature: -23oC to 60oC.
4).Due to add the carbon material which is good for heat conduction, carbon battery is suitable working at high temperature environment.
5).Good discharge performance in low temperature: The discharge rate of carbon battery at -20oC is 66% which is higher than the traditional lead acid battery (50%).
6).High charging current ability: The max. charging current of carbon battery is 0.6C which is higher than the traditional lead acid battery (0.2C). It can shorten the charging time and especially suitable for solar system application.
7).PROFLEX carbon battery is true front terminal battery. It is easy for maintenance. No maintenance space between tier to tier, it can save the installation area.

Main Application

1. Communication Systems: Switch, Microwave Stations, Mobile Base Stations, Data Centers, Radio and Broadcasting Stations
2. Motivity Field: Robots, Electric Toys, Electric Tools & Portable Vacuum Cleaners
3. Solar & Wind Power Generation Systems
4. Signal System & Emergency Lighting Systems
5. EPS & UPS Systems

Data sheet

Capacity 77° F(25º C)	100 hours rate(1.1A 11.1V)	110Ah
	20 hours rate(5A 10.5V)	100Ah
	10 hours rate(9.2A 10.5V)	92Ah
	1 hour rate(58A 9.6V)	58Ah
Internal Resistance	Full charged battery 77° F(25º C): 10mΩ

Operating Temperature Range	Discharge: -20 to 60 º C
	Charge: -10 to 60 º C
	Storage: -20 to 60 º C
Self-Discharge
3% of capacity declined per month at 20º C(average)
Max discharge current77° F(25º C800A(5S)
Charge (Constant Voltage)	Float: 13.38 to 13.68V/77° F(25º C)
	Cycle: 14.28 to 14.52V/77° F(25º C)
	Max Current: 25A

Guangzhou Xuntian Electronic Technology Co., Ltd.is located in beautiful flower city-----Guangzhou, Guangdong province, China. Our company is a high new technical company, and we focus on research and development of lead acid battery, deep cycle battery and Gel storage battery. Beside, we sale full range of different capacity 12 voltage, 6 voltage or 2 voltage battery.

Storage Battery is used mainly in UPS electric power; Telecommunication; Solar or wind power system; Aerospace and navigation; Bank and medical system; Rail transit; Military area and so on.

After years of development, we builded up a professional product reseach and develop term, and a mature engineering technology reseach centre. With such facility and domestic famous senior engineers of battery production as consultant, our technology is leading in battery production field.

Our reseached and developed storage battery earned a high reputation not only in China but also in all over the world. Our batteries sale to European market; American market; Southeast Asia market; Africa market and Middle East market, what is more, they all received high compliment from customer.
