12V 100ah LiFePO4/Lithium Battery for Energy Storage System

Name: 12V 100ah LiFePO4/Lithium Battery for Energy Storage System
Brand: all-electronics-online.com
SKU: 723437995
Availability: InStock
Rating: 4.6 (140 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB,CIF
Min Order:	1/Piece
Pay Type:	T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	OPT-012-100
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Rated Voltage:	12.8V
Standard Capacity:	100ah
Max Charge Voltage:	14.6V
Cut Off Voltage:	10V
Size:	323171215mm
Weight:	15kg
Composed Type:	in Parallels and Series
Certification:	UL, CE, RoHS, ISO9001 etc
Type:	Lithium-Ion Battery Pack
Connection Mode:	Series and Parallel

Product Description

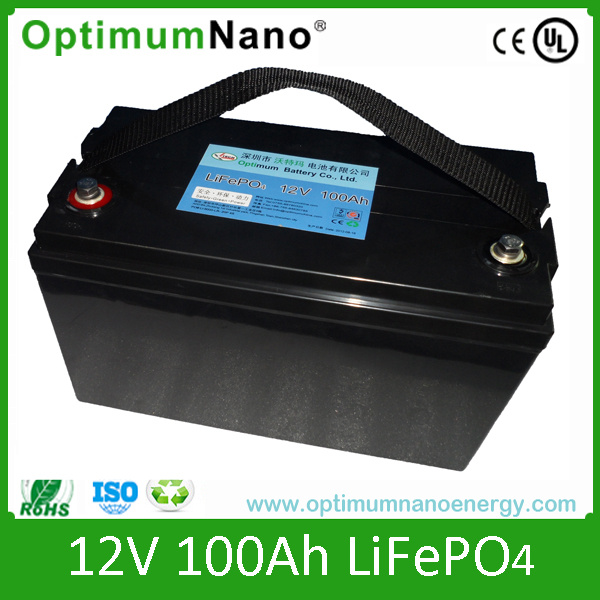

12V 100ah LiFePO4/Lithium Battery for Energy Storage System

*Quick Details

Place of Origin: Guangdong China (Mainland)
Brand Name: OPTIMUM
Model Number: OPT-12-100

Usage: Energy storage
Voltage: 12V
Nominal Capacity: 100Ah

Max charge voltage: 14.6V
Cut off voltage: 10V
Size: 323*215*171mm
Weight: About 12kg

Maintenance Type: Free

Charge rate: 0.1C~1C
Discharge rate: 1C~3C
Color: Blue&Black

Working life: More than 2000 cycles
Certification: UL, CE, RoHS, ISO9001 etc
Warranty:2years

*Produce show

*Packaging & Delivery

Packaging Detail: Plastic case(Negotiable)

Delivery Detail: 15~30days

*Application

E-bike
Telecom and server room UPS standby power
Hospital, bank, airport, power station
SMR/cable UPS battery

*Characteristics

1. Extremely safe and stable chemistry: Rigid aluminum alloy housing protection, BMS or PCB built inside to protect the battery over charge and discharge.

2. Long life-cycle: 5~7 years / 2000 times cycle life.

3. Lighter and smaller: 1/3 weight of lead acid battery, 70% size/weight of Ni-MH/Ni-CD battery.

4. Wide operating temperature: High temperature resistance (-20~60 degrees Celsius).

5. Steady performance: High power output, 1C continuous, 3C pulse for normal cells and 20C for special design. Low self-discharge rate, less than 3% per month.

6. No memory effects and highly efficient charge: It can be recharged anytime, no reduction of the capacity

7. Green product: Environment friendly, clean and green energy, no pollution on our environment.

8. Quality assurance: BV and SGS approved supplier, with TS16949 and ISO9001 quality management certificates and UL, CE, IEC62133 etc...Product certificates.

OEM orders are welcome!

And different voltage and capactiy pack is workable!

Please tell us your requirements.

*About Optimum Battery Co., Ltd.

1. The approved supplier of Universiade Shenzhen 2011, their 80% lithium battery offered by us.

2. As the professional and leading LiFePO4 battery manufacturer in China, we have a capacity of 1.25 MWh per day.

3. Established in 2001, Optimum Battery Co., Ltd is high-tech corporation with independent intellectual-property and core technologies, which is specialized in LiFePO4 and NI-ZN battery's R & D, production and management. Adjacent to Shenzhen Grand Industrial Park, and with an occupation about 20, 000 square meters, we have more than 1000 employees and over 50 senior engineers.

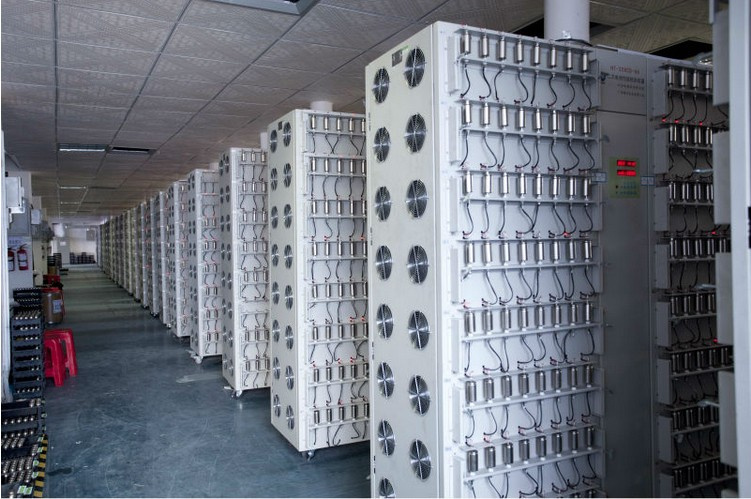

*Workshop

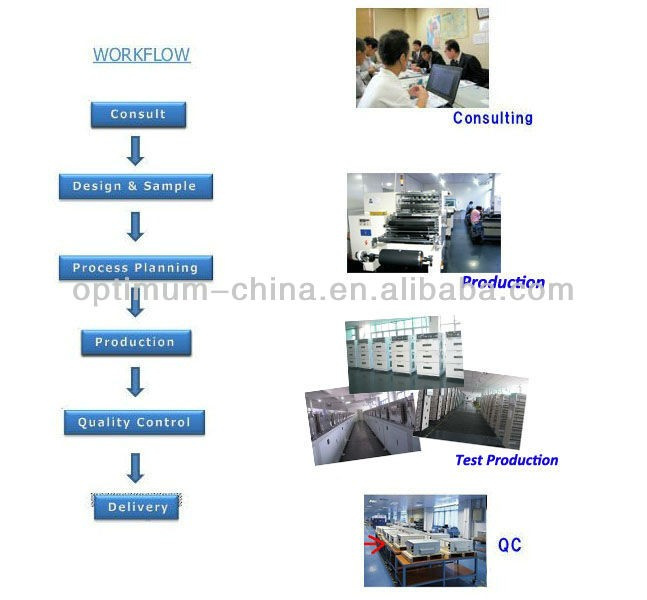

*Produce lines

Welcome to OptimumNano Energy Co., Ltd

NO.	Item		General Parameter				Remark
1	Model		IFR 32650
2	Case material		steel case for single cells
3	Standard capacity(0.2C)		100Ah
4	Minimum capacity (1C)		90Ah
5	Rated voltage		12.8V
6	Max.Charge voltage		14.6V
7	Cut-off voltage		10V
8	Standard charge current		50 A				0.5C
9	Max charge current		50 A				0.5C
10	Max discharge current		100A				1C(2mintues)
11	Pulse discharge current		200A				2C(10seconds)
12	Battery dimension		323171215 mm
13	Weight(Approx,including case)		About14kg
14	Impedance(Max, at 1000Hz.)		≤ 30mΩ
15	Charge method (CC/CV)	Standard	CC	0.2C		3.65V cut off
			CV	3.65V		0.05C cut off
		Rapid	CC	1C		3.8V cut off
			CV	3.65V		0.05C cut off
16	Operate temperature		Charge		0~45
			discharge		-20~60
			storage		-20~55

Company Name: OptimumNano Energy Co., Ltd

Name of Exhibition: The China Sourcing Fair

Address: Hong Kong Asia Exhibition Hall

Booth No: At at 9B05

Dates: Oct 11-14, 2015(4 Days)

In 2002, OptimumNano Energy Co., Ltd started the battery business in Shenzhen.

In 2006, OptimumNano began to focus on the production, Engineering, researching and manufacturing of LiFePO4-Lithium Iron Phosphate Battery, we believe the LiFePO4 shall be the best Lithium-ion Power Solution in the future

In 2008, OptimumNano finished the first Pure Electric Bus with LiFePO4 Battery, demonstrating and running for Shanghai EXPO.

In 2009, OptimumNano was awarded the honor of "National High-tech Enterprise".

In 2011, OptimumNano was the main vehicle power battery supplier of the 26th World Universiade Games.

In 2012, OptimumNano was selected as one the supporting company of "2012 New Energy Automotive Industry Technology Innovation Project", which was launched by the Ministry of Finance, the Ministry of Industry and the Ministry of Science and Technology.

In 2013, OptimumNano moved to new and bigger factory to meet our 500, 000 PCS daily production requirement.

In 2014, Shenzhen mayor Mr. Wang Rong and others come to our company to make researches and guidances and gave high praise for our company achievement in the new energy industry

OptimumNano set up the workstation for Academician Material Application. With around 500 R&D staffs, now we have more than 200 patents at home and abroad.

After over 13 years' development, OptimumNano has offices in local 31 cities, distribute our LiFePO4 batteries to over 40 countries in the world.
