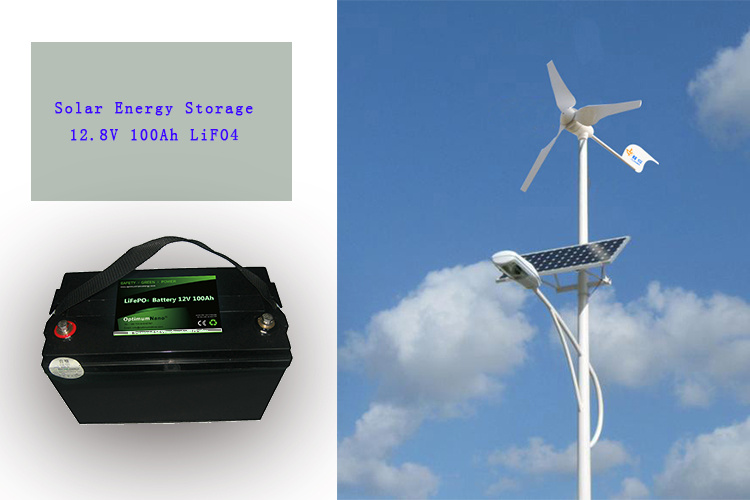

12V 100ah Lithium Ion Solar Battery with CE UL

Prod Model:	OPT-012100
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Battery Cell Type:	LiFePO4 Battery(Ifr 32650-3.2V5ah Per Cell)
Composed Type:	4 Series 20 Parallel
OEM/ODM:	Acceptable
Certifications:	CE, UL, RoHS, IEC, BV, SGS, Rbrc
Type:	Lithium-Ion Battery Pack
Connection Mode:	Series and Parallel
Standard Voltage:	12V
Electrolyte:	LiFePO4

Product Description

Basic information:


Rated Voltage: 12V
Rated capacity: 100 Ah
Max charging voltage: 14.6 V
Cut off voltage: 10V
Recommend charge current: <40 A (optional)
Recommend continuous discharging current: <100A (customized)
Pulse discharging current: 150 A (customized)
Life cycle: Over 2000 cycles >80% capacity
Case: ABS case or customized
Size: 325*172*215MM or customized
Weight: About 16 KG
Self discharge rate: ≤ 3% monthly
Operate temperature -20º C-60º C
Warranty time is 2 years
Certifications: CE, UL, ROHS, IEC, BV, SGS, RBRC

Features of Optimumnano LiFePO4 battery pack:

Quality features of optimumnano LiFePO4 battery pack:


Remarks:

1) MOQ: 10 pcs
The quotation is include BMS and packing, but not the charger
2) Payment: T/T 100% for sample, T/T 30% in advance, 70% before sending the goods for the
Order.
3) Order Lead time: 4-6 weeks for order upon receipt of 30% deposit
4) Sample lead time: Within 2-3 weeks
5) Delivery: FOB Shenzhen port
6) Warranty: 24 Months from the day when you receive the goods

Attention:
Don't throw the battery into water and fire or don't hot it up.
Don't break up the battery
Never throw the battery into water, keep it under dry, shady and cool circumstance when
Not use.
Never keep the battery beside high temperature source examples: Fire, heating machine and
Ect.
Please use the stated charger when charging

Never upside down the positive and negative.

Never cut the battery in socket directly

Never connect the positive and negative of battery with metal.

Never use or keep the battery under the high temperature. Otherwise it will cause battery
Heat, get into fire or lose some function and reduce the life.

Never use the battery under strong static and strong magnetic field, otherwise it will
Destroy the protecting device.

If battery leaked, the electrolyte get into eyes, please don't knead, please wash eyes
By water and send to hospital. Otherwise it will hurt eyes

If battery emit peculiar smell, heating, distortion or appear any unconventionality

During using, storage or charging process, please take it out from device or charge and
Stop using.

Performance Comparison between LiFePO4 Battery and Lead acid Battery
Item	LiFePO4 Battery	Lead acid Battery	Notes
Weight to Power Ratio	120-130 Wh/kg	32-37 Wh /kg	4:1
Dimension to power ratio	210 Wh/L	70 Wh/L	3:1
Cycle Life	Over  2000 times(1C)	300 times(1C)	6:1
High Rate Charge /Discharge Performance	Higher than 96%	60%~70%	1.6:1
Charging performance	1 Hour	4 Hours	1:4
Temperature Range & performance	-20ºC-60ºCLiFePO4 High temperature discharge current is about 105%,	-20ºC-45ºC Lead acid Battery temperature discharge current is about 80%	1.3:1
Monthly Self-discharge Rate	About 3%	More than 10%	1:3
