| Prod Model: |
FG097 |
| Item Name: |
Storage Battery |
| Maintenance Type: |
Free |
| Size: |
328*172*222mm |
| Weight: |
30 Kg/PCS |
| Material: |
Fire Proof Case |
| Warranty: |
3 Years |
| Terminal Type: |
Copper/Lead |
| Working Temperate: |
-15 to 45 |
| Certificate: |
Ce, UL,ISO, MSDS |
| Cell: |
6 |
| Type: |
Lead-Acid Batteries |
| Usage: |
Electric Bicycle |
| Nominal Voltage: |
12V |
| Discharge Rate: |
High Discharge Rate |
| Shape: |
Square Battery |
| Rechargeable: |
Chargeable |
Product Description

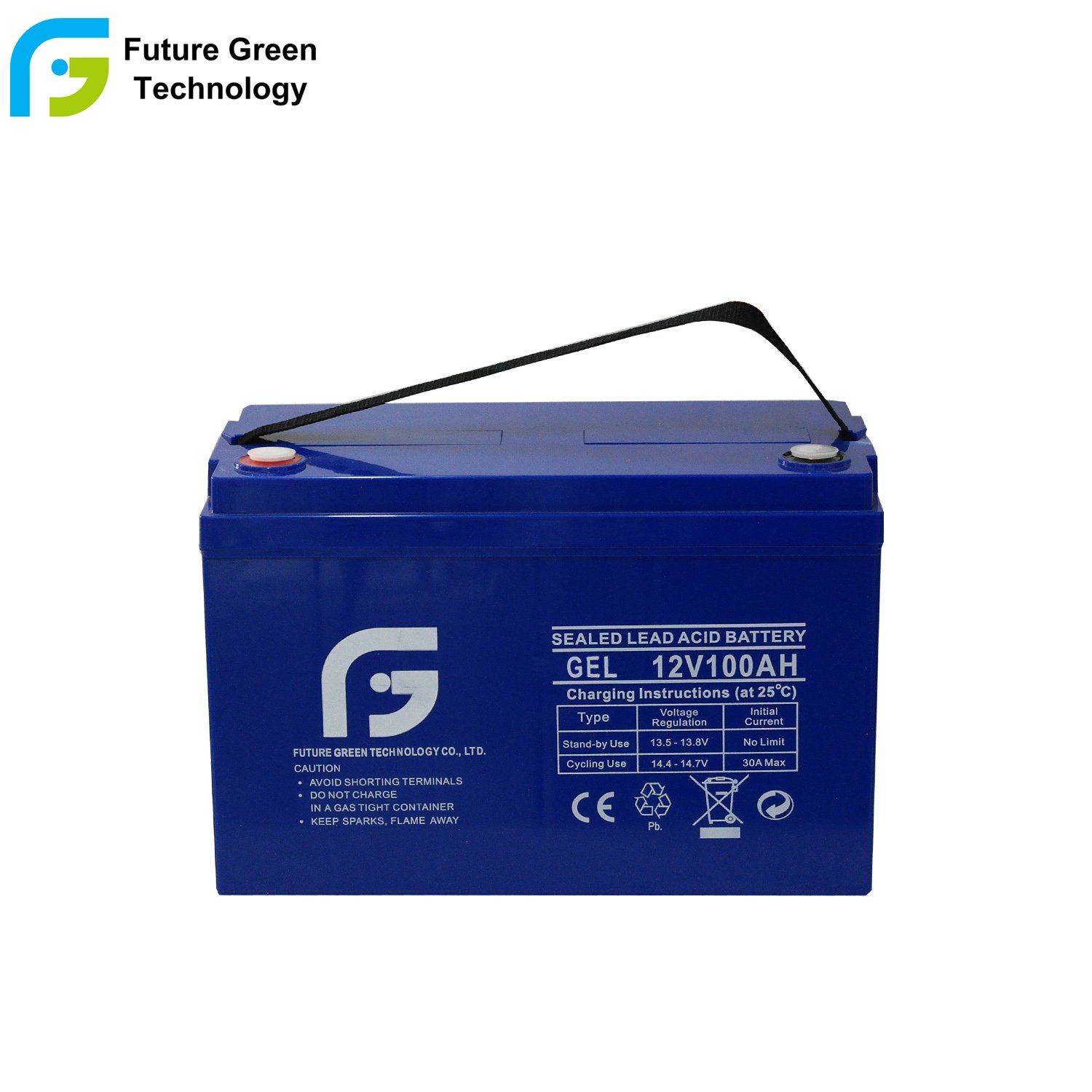

Future Green 12V 100ah Solar AGM Valve Regulated Lead Aicd Storage Battery Features:
1. Long battery life, high capacity, Superior of recovery after discharge.
2. ABS material: increase the strength of battery container. (Flame-retardant ABS is optional)
3. High purity raw material: ensure low self discharge rate.
4. Absorbent Glass Mat(AGM) technology for efficient gas recombination of up to 99% and freedom from
electrolyte maintenance or water adding.
5. Silver- coated copper terminals, brass insert terminals and lead terminals improve the electric conductivity.
6. Pb CaSn alloy for plate grids: less gassing, less self-discharging high quality.
7. Maintenance-Free Operation
8. Low Self-Discharge
| Characteristics | |
| Nominal Voltage | 12V |
| Nominal Capacity (10 hour rate) | 100Ah |
Capacity
25°C(77°F) | 10 hour rate (10A) | 100Ah |
| 3 hour rate (25A) | 75Ah |
| 1 hour rate (55A) | 55Ah |
| Internal Resistance | Full Charged Battery 25°C(77°F) | ≤8mΩ |
| Float Life | 25°C(77°F) Float charge at 13.8V | About 5 Years |
Capacity affected by Temperature
(10 hour ) | 40°C (104°F) | 102% |
| 25°C (77°F) | 100% |
| 0°C (32°F) | 85% |
| -15°C (5°F) | 65% |
Self-Discharge
25°C(77°F) | Capacity after 3 month storage | 90% |
| Capacity after 6 month storage | 80% |
| Capacity after 12 month storage | 62% |
| Charge (Constant Voltage) 25°C(77°F) | Cycle | Initial Charging Current Less than 30A
Voltage 14.6-15.0V |
| Float | Voltage 13.5-13.8V |
Lead Acid Battery Series:| Style | Size(mm) | Plate | Weight(kg) |
|
| SJ12V1.3Ah | 97*43*51*57 | 24 | 0.53 |
| SJ12V2.6Ah | 70*47*99*105 | 24 | 0.8 |
| SJ12V5.5Ah | 90*70*101*107 | 36 | 1.6 |
| SJ12V7Ah | 151*65*94*100 | 48 | 2.1 |
| SJ12V12Ah | 151*98*95*101 | 72 | 3.6 |
| SJ12V17Ah | 181*77*167*167 | 48 | 4.9 |
| SJ12V24Ah | 177*165*126*126 | 66 | 7.3 |
| SJ12V24Ah | 177*165*126*126 | 42 | 8.3 |
| SJ12V24Ah | 177*165*126*126 | 42 | 8.7 |
| SM12V33Ah | 196*131*155*180 | 42 | 9.2 |
| SM12V40Ah | 196*165*175 | 42 | 12 |
| SM12V55Ah | 229*138*208*227 | 48 | 15 |
| SM12V55Ah | 229*138*208*227 | 54 | 16.5 |
| SM12V65Ah | 350*166*175 | 66 | 19 |
| SM12V70Ah | 350*166*175 | 72 | 21 |
| SM12V80Ah | 350*166*175 | 78 | 22 |
| SM12V90Ah | 307*168*208*227 | 66 | 25 |
| SM12V100Ah | 328*172*222(222) | 66 | 28 |
| SM12V120Ah | 406*174*208*233 | 90 | 33 |
| SM12V134Ah | 340.5×173×280(285) | 66 | 36 |
| SM12V150Ah | 483*170*241*241 | 102 | 43 |
| SM12V180Ah | 532*207*215*240 | 126 | 52 |
| SM12V200Ah | 522*240*219*244 | 126 | 61 |
| SM12V210Ah | 522*240*219*228 | 150 | 63 |
| SM12V260Ah | 522*240*219*228 | 162 | 69 |
Applications: - Solar and wind Powe System
- Cable TV
- Telecommunications
- Wheelchair,Golf Cart
- Marine Equipment
- Electrical Toys
| - Military Equipment
- Emergency lighting
- Power Plants
- Medical Devices
- UPS
- Emergency Alarm Systems
|
Battery Use and Maintenance:1) Please use constant-voltage charge.2) In floating charge, the voltage is 2.23 to 2.27 per unit cell.
3) In cycle use, the voltage is 2.35 to 2.45 per unit cell, the max. Current is no more than 25%° C
4) Please do tighten the bolts to avoid sparkle and poor contact when the battery is in use.
5) Please do not use it near the heat source and open flame.
6) Please keep it at low temperature. Please change it while there is liquid leaking or damage.
Factory Show:
Packing Details:
Our Services:
Samples and OEM, Warranty and After-Sale Service:
- Sample can be provided for quality testing
- OEM Welcomed
- Warranty:2 Year
- After-Sale Service: 24 Hour-Hot Line for Consultacncy and Technical Support
Our Qualification:
| Payment Terms | T/T | EXW | 30% T/T in advance, paid the balance before shipment |
| FOB |
| CFR(C&F) | 30% T/T in advance, paid the balance against copy of B/L |
| CIF |
| L/C | L/C amount above 50,000 usd, we can accept L/C at sight |
| West Union | Amount lower than 5000usd |
| Paypal |
| Delivery time | 15 working days after receiving payment for one container |
FAQ:Q1: How to choose a right battery?
A1:Tell us your demand, then our sales will recommend a suitable panel to you.
Q2: How about the delivery time?
A2: 7 days for sample; 15 days for bulk order.
Q3: What is the warranty of lead acid battery?
A3: 2 years warranty on FGET-Solar product.
Q4: How to solve the technical problem?
A4: 24 hours after-service consultancy just for you and to make your problem to solve easily.
Q5: How To Ask for Support if products failure in warranty?
A5: 1. Email us about PI number, serial number,Product S/N number, show us more details such as: pictures, your testing report or video, if it is the quality problem of product itself, we will resend a new one in next order. 2. we will submit your case to our after sales department, and solve it in 24 hours .
