12V 100W High Efficiency Rainproof Switching Power Supply

Name: 12V 100W High Efficiency Rainproof Switching Power Supply
Brand: all-electronics-online.com
SKU: 761563405
Availability: InStock
Rating: 4.4 (106 reviews)

Price:	US $ 7.96-8/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	LHDV-12E100
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Output Power:	100W
Output:	Constant Voltage 12V
Input Voltage:	170-250V
IP Rating:	IP67
Efficiency:	85%
Output Current:	8.33A
Size:	1528242 mm
Case:	Aluminum Case
Warranty:	2 Years Warranty
Use:	for Spot Light, Down Light, Panel Light
Usage:	Construction, Building
Circuit Structure:	PWM Controlled
Output Type:	Terminal or Wire
Driving Method:	Constant Voltage
Certification:	Ce, EMC
Power Supply Voltage:	AC170-260V
Brand:	Neonpro

Product Description

12V 100W High Efficiency Rainproof Switching Power Supply

Brief Introduction of Rainproof Switching Power Supply:
1. High transfer efficiency.
2. Compact size, easy for installation.
3. Special heat dissipation design with aluminium housing and hot start ventilating fan.
4. Safety design with separated line input power cord and low voltage output terminals, preventing electrical shock.

Data sheet of Rainproof Switching Power Supply:

Model no.	LHDV-12E100C
Model series	RLDV
Input voltage	180-250 VAC 50/60 Hz
Power	100 W max
Output type	Constant voltage
Efficiency	>78%
AC inrush current(max.)	Cold start, 40A@230VAC
Output voltage	12/24 VDC ± 5%
Output current	8.33A Max
Withstand voltage	I/P~O/P:3kVAC, 1 minute
Operating temperature	-25~40ºC
Installation	Outdoor rainproof
IP rating	IP 44
Cooling	Free air convection
Connection input/output	Input: terminal Output: terminal(Four)
Dimensions(LWH)	1528242 mm
Weight(kg)	0.4500

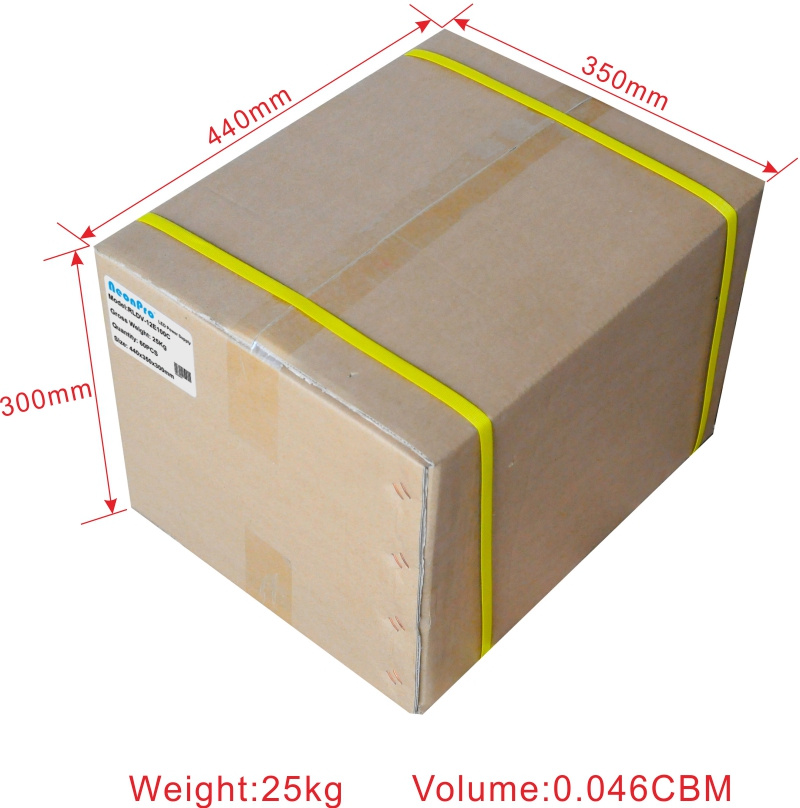

Packing information	60 Pcs/ Carton, G.W 26.5 KG

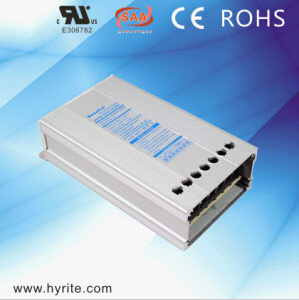

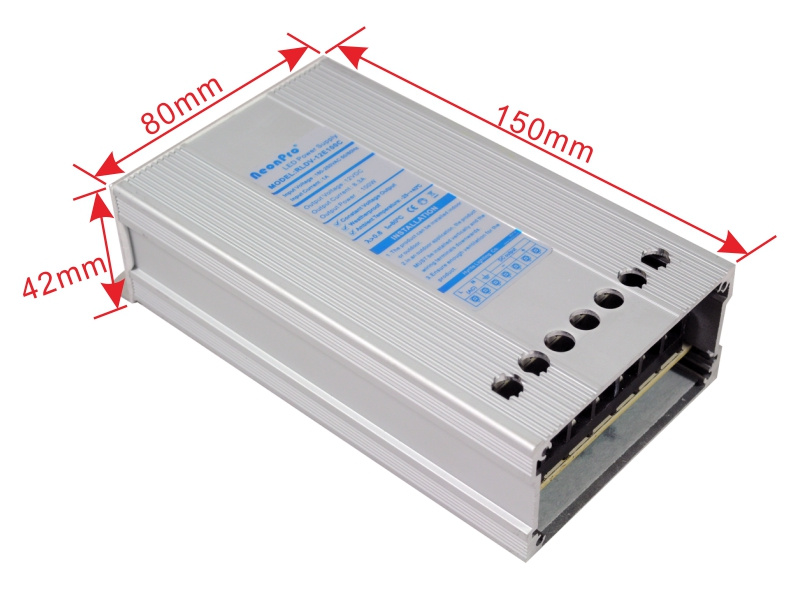

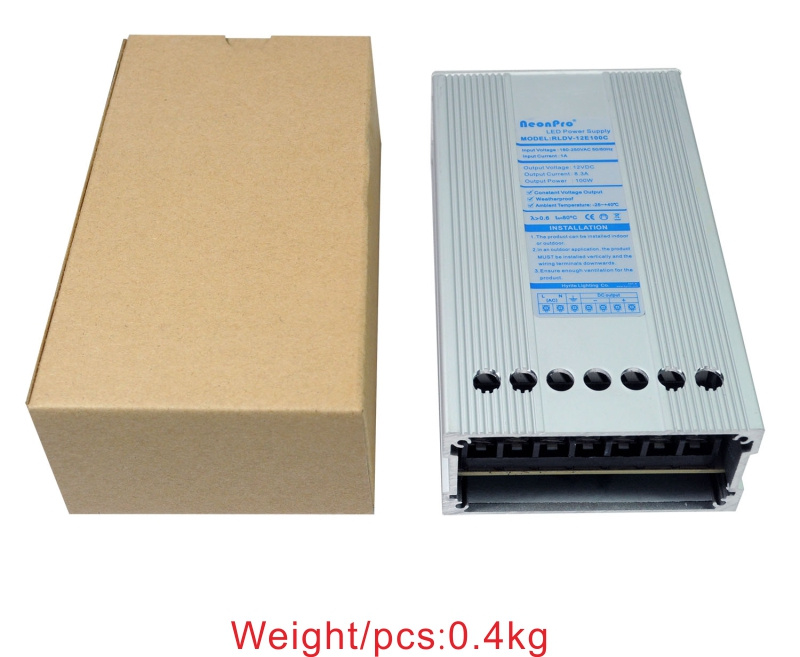

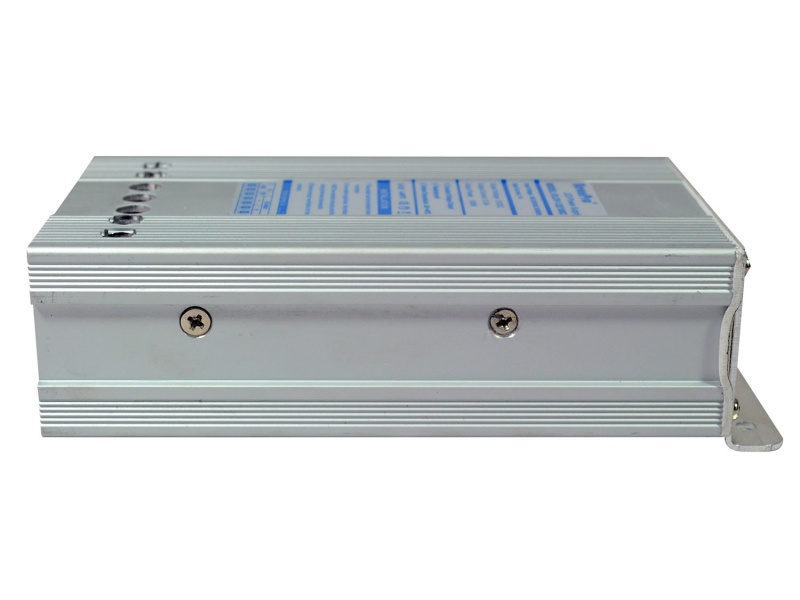

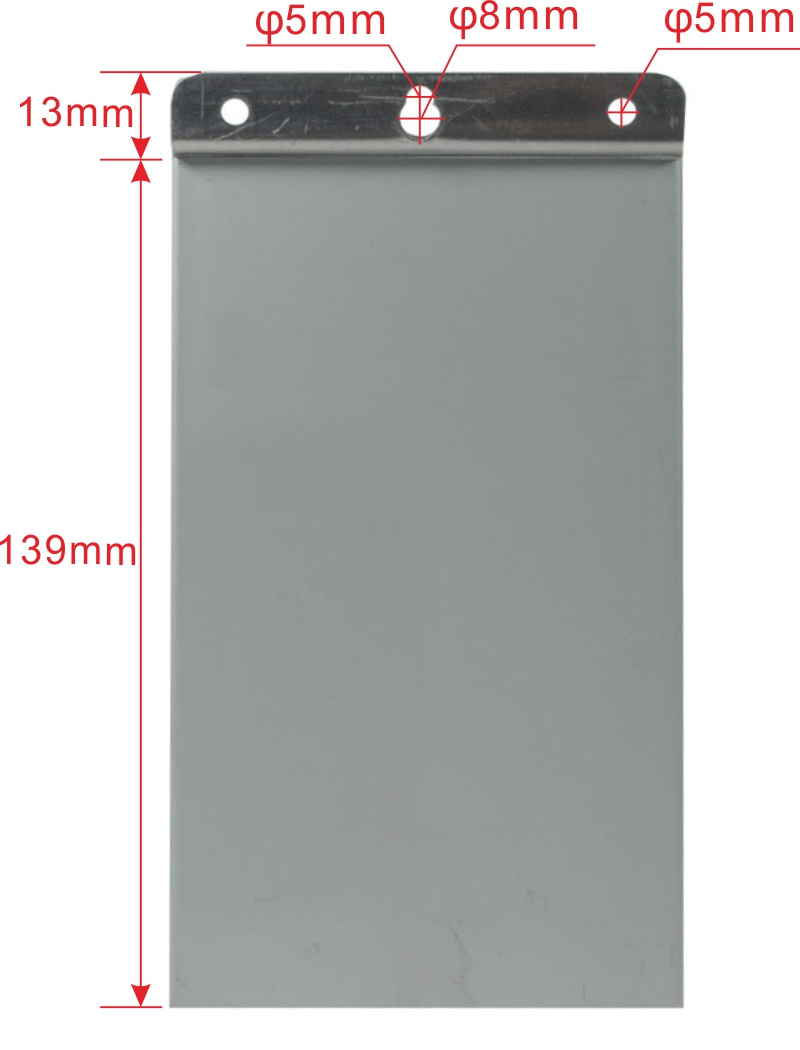

Product pictures of Rainproof Switching Power Supply:

Exhibition show of Rainproof Switching Power Supply:

Note of Rainproof Switching Power Supply:
Trade Terms: EXW, FOB, CIF and CNF term available
Lead time: 15 days after order confirmation
Payment terms: L/C, T/T, Western Union
MOQ: 1 ctn (Samples are available)

Shipping of Triac Dimmable Power Supply:
* DHL FedEx TNT UPS EMS
* By Sea
* By Air

Hyrite Lighting Company, also known as NeonPro Co, has 20 years experience in the design, development and manufacturing of electronic power supplies, one of an extremely successful range of signage products including, over the last seven years, LED modules and driver units.

The senior management having recognized the ongoing success and further potential of our LED products and utilizing their experience and proven track record in innovative product design and manufacture has formed Hyrite Lighting Company solely dedicated to manufacturing products specifically for the LED signage and lighitng markets.

Our products are surrently being used in many countries under different technical standards in a variety of climate conditions.

Pls kindly check our main products below,

*IP67 Slim high efficiency constant voltage LED power supply (New)

*Traditional IP67 constant voltage waterproof LED power supply

*IP45 Rainproof constant voltage LED power supply.

*IP20 indoor type LED power supply.

*Constant Current LED Driver for LED lighting.

*Dimmable LED driver.

*LED module for Channel letter/light box.

Certificate: CE RoHS SASO SAA TUV UL approved

In addition we offer comprehensive OEM and ODM services to our partners.
