12V 100W IP67 LED Waterproof Power Supply for Australian Market with SAA

Name: 12V 100W IP67 LED Waterproof Power Supply for Australian Market with SAA
Brand: all-electronics-online.com
SKU: 748348885
Availability: InStock
Rating: 4.6 (108 reviews)

Price:	US $ 13.5-14/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	LPS-12E100B
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Output Power:	100W
Input Voltage:	170-250V
Output Voltage:	12V
Output Current:	8.4A
Power Factor:	0.65
Efficiency:	85%
IP Rating:	IP 67
Certificates/Standards:	CE, RoHS, SAA, Saso
Dimensions(LWH):	236.56440.5 Mm

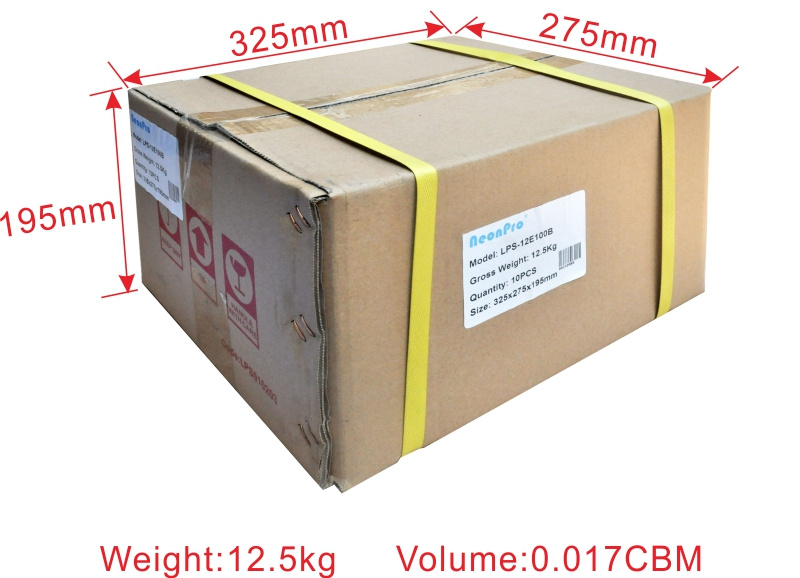

Packing Information:	10 PCS/ Carton, G.W 14.5kg
Usage:	Construction
Output Type:	Single
Driving Method:	LED Regulator Voltage
Circuit Structure:	PWM Controlled
Power Supply Voltage:	AC170-250V
Brand:	Neonpro

Product Description

12V 100W IP67 LED Waterproof Power Supply for Australian market with SAA

Product Feature of LED Power Supply for Australian market with SAA:
*170-250 VAC, 12VDC, Constant Voltage type;
* Mature IP67 led power supply;
*Applied for LED Signage/strips/bar lights/LED Modules etc.
*Protections: Short circuit/over load/over voltage/over temp
*100% full load burn-in test
*Low cost, High reliability
*2 years warranty
*SASO SAA CE ROHS approval.

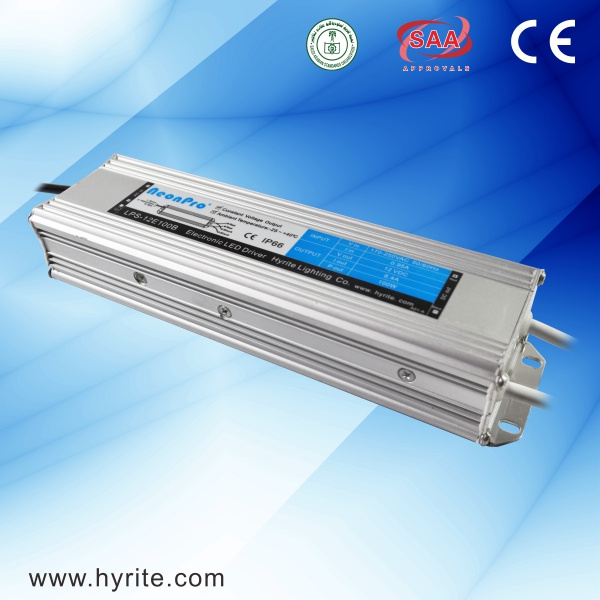

Pictures of LED Power Supply for Australian market with SAA:

Technical Specification of LED Power Supply for Australian market with SAA:

Model no.	LPS-12E100B
Input voltage	170-250 VAC 50/60 Hz
Max. power	100 W max
Output type	Constant voltage
Dimming	No
Built-in active PFC	No
Power factor	0.65
Efficiency	85%
Output voltage	12VDC ± 5%
Output current	8.4 A
Overload protection	105%-120% hiccup mode, auto-recovery
Over voltage protection	120% rated output voltage
Withstand voltage	Outdoor waterproof
Operating temperature	-25~40 degree
Installation	Outdoor waterproof
IP rating	IP67
Certificates/standards	CE,SAA,SASO

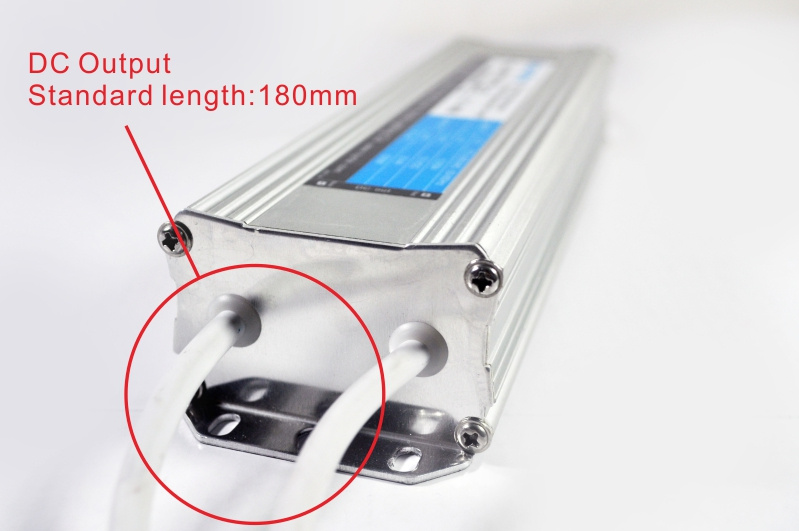

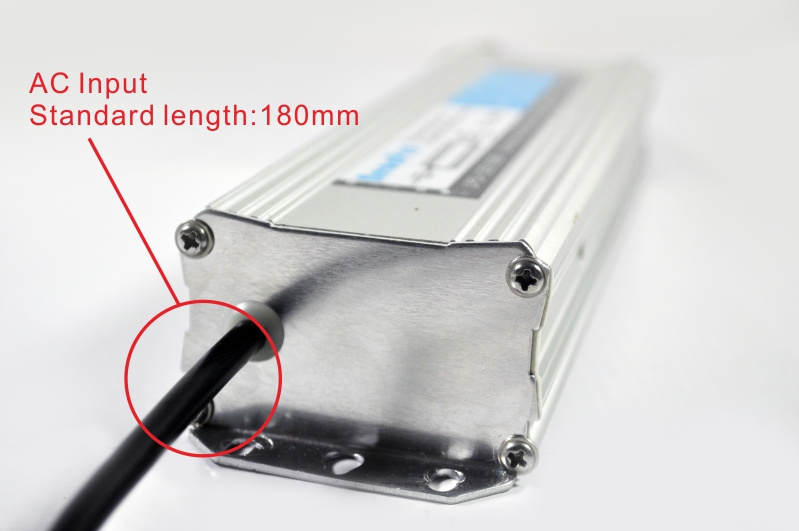

Connection input/output	Input:0.75mm²x3 (18cm) / Output:0.75mm²x2*2 (18cm)
Dimensions(LWH)	236.56440.5 mm

Note of LED Power Supply for Australian market with SAA:
Trade Terms: EXW, FOB, CIF and CNF term available
Lead time: 15 days after order confirmation
Payment terms: L/C, T/T, Western Union
MOQ: 1 pc

Shipping of LED Power Supply for Australian market with SAA:
* DHL FedEx TNT UPS EMS
* By Sea
* By Air

Projects/ Production/ Exhibition of LED Power Supply for Australian market with SAA:

Hyrite Lighting Company, also known as NeonPro Co, has 20 years experience in the design, development and manufacturing of electronic power supplies, one of an extremely successful range of signage products including, over the last seven years, LED modules and driver units.

The senior management having recognized the ongoing success and further potential of our LED products and utilizing their experience and proven track record in innovative product design and manufacture has formed Hyrite Lighting Company solely dedicated to manufacturing products specifically for the LED signage and lighitng markets.

Our products are surrently being used in many countries under different technical standards in a variety of climate conditions.

Pls kindly check our main products below,

*IP67 Slim high efficiency constant voltage LED power supply (New)

*Traditional IP67 constant voltage waterproof LED power supply

*IP45 Rainproof constant voltage LED power supply.

*IP20 indoor type LED power supply.

*Constant Current LED Driver for LED lighting.

*Dimmable LED driver.

*LED module for Channel letter/light box.

Certificate: CE RoHS SASO SAA TUV UL approved

In addition we offer comprehensive OEM and ODM services to our partners.

We sincerely welcome your visiting and valued advices to us. Any questions from you, our experienced salesperson will feedback to you within 12 hours.
