12V 10A 18channel CCTV Box Switching Power Supply
| Price: |
Negotiable/Piece |
| Min Order: |
100/Piece |
| Pay Type: |
T/T,Western Union,Paypal |
| Prod Model: |
YDSBOXG12-120-18 |
| Output: |
12V 10A |
| Channel: |
18CH |
| Output Type: |
Single |
| Warranty: |
1 Year |
| Input Voltage: |
110-220V |
| Connection Mode: |
Series Switching Power Supply |
| Starting Mode: |
Separate-excited Switching Power Supply |
| Voltage Regulating Mode: |
Frequency Modulation Type |
| Power Supplying System: |
Terminal Power Distribution Equipment |
| Certification: |
FCC |
| Output Power: |
480W |
| Brand: |
OEM |
Product Description

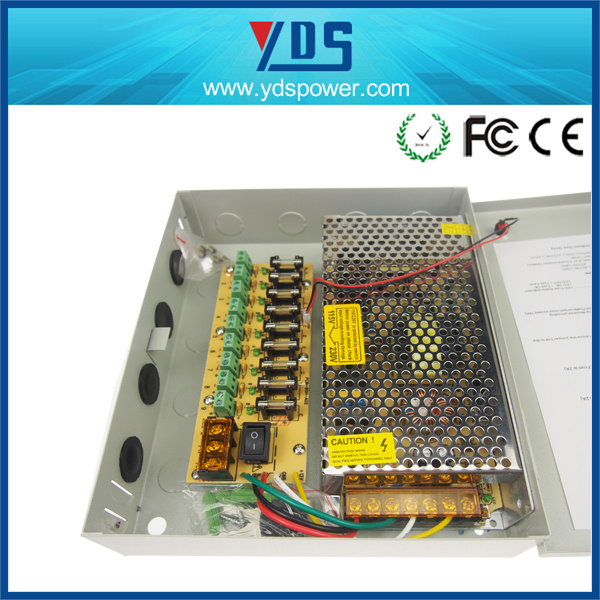

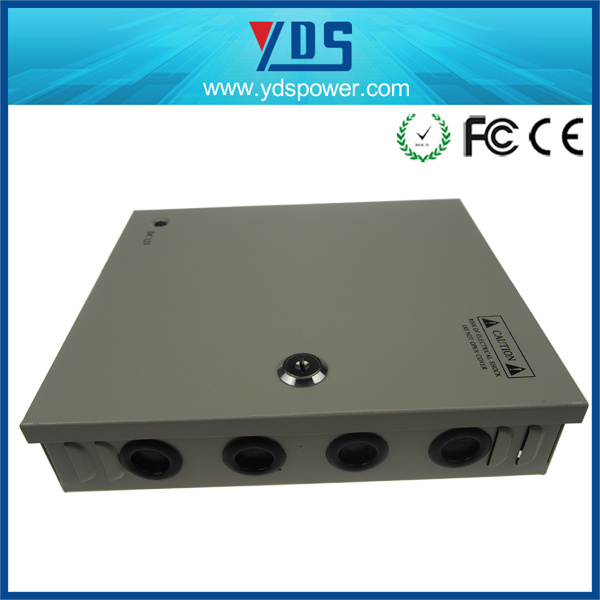

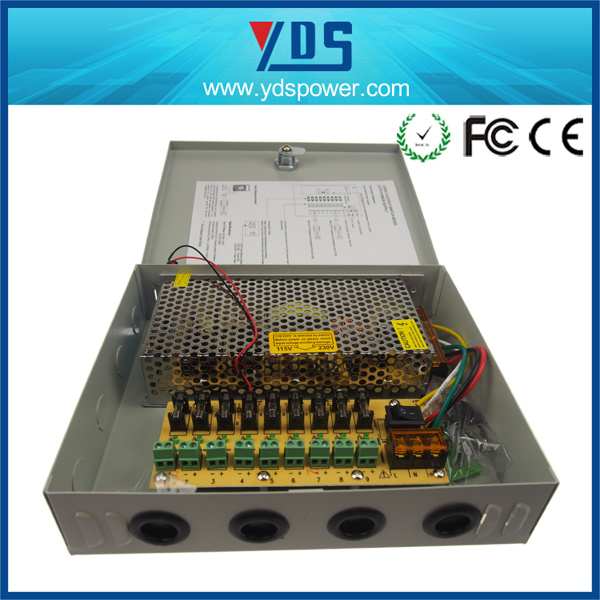

12V 10A 18Channel CCTV box switching power supply
Specification:| Specifications |
Features:
>> 110V/220V ON/OFF switch, Lockable
>> Each channel with fuse or PTC for protection, spare fuses included
>> Stable performance, high efficiency, low power consumption
>> AC power LED indicator
>> Cooling by free air convection
>> 100% full loading burn-in test
>> Unit maintains camera synchronization
>> Easy installation saves time and eliminates costly labor
>> 1 year warranty |
| MODEL NO | YDSBOXG12-120-18 | YDSBOX12-180-9 | YDSBOX12-360-18 |
| Input& Output | Input Voltage: AC 100~120V/AC 220~240V |
| DC VOLTAGE | 12V | 12V | 12V |
| OUTPUT POWER | 120W | 180W | 360W |
| Channels | 18CH | 9CH | 18CH |
| Output Current | 6*2 A fused outlets(18A Max) | 9*2 A fused outlets(18AMax) | 18*1.5ma Fused outlets (30A Max) |
| Max. Ripple & Noise | 250mV |
| Load Regulation | ±5% |
| Dimensions(mm) | 250(L)*220(W)*65(H) | 250(L)*220(W)*65(H) | 335(L)*235(W)*75(H) |
| Weight(KG) | 1.4 | 1.62 | 2.3 |
| Environment | Operating Temperature | 0°C~40°C |
| Storage Temperature | (-)20°C~+85°C |
| Operating Relative Humidity | 5%~95%RH |
| Protection: | Circuit Short Protection, High Voltage Protection, Over Current Protection, Over load Protection |
| SAFTY & EMC | Safety Standards | EN55015/EN61000-3-2/EN61000-3-3 |
| Notes: | For Indoor Use Only! |
| Application | 1.Digital and electronic products |
| 2.LED, CCTV supervisory system |
| 3.CCTV monitoring camera |
| Part of YDS CCTV Power Supply Box Specification |
| YDSBOX12-36-4 | 12V 3A | 4-CH power supply with metal box |
| YDSBOX12-60-4 | 12V 5A | 4-CH power supply with metal box |
| YDSBOX12-60-6 | 12V 5A | 6-CH power supply with metal box |
| YDSBOX12-60-9 | 12V 5A | 9-CH power supply with metal box |
| YDSBOX12-120-9 | 12V 10A | 9-CH power supply with metal box |
| YDSBOX12-120-18 | 12V 10A | 18-CH power supply with metal box |
| YDSBOX12-180-9 | 12V 15A | 9-CH power supply with metal box |
| YDSBOX12-180-18 | 12V 15A | 18-CH power supply with metal box |
| YDSBOX12-240-18 | 12V 20A | 18-CH power supply with metal box |
| YDSBOX12-360-18 | 12V 30A | 18-CH power supply with metal box |
Package: | Standard carton parking for shipping andcustomized packing accepted. step 1: check and arrange well the original products; step 2: packed into bubble bags; step 3: packed into small brown boxes; step 4:50pcs/100pcs/120pcs into thicker carton; step 5: bundle the outer carton tightly. |
Our service: Within 1000W, we can customize the output voltage and current for you.
5V switching power supply description |
5V 5A switching power supply | 5V 30A switching power supply |
5V 10A switching power supply | 5V 35A switching power supply |
5V 15A switching power supply | 5V 40A switching power supply |
5V 20A switching power supply | 5V 50A switching power supply |
5V 25A switching power supply | 5V 60A switching power supply |
12V switching power supply description |
12V 3.5A switching power supply | 12V 15A switching power supply |
12V 5A switching power supply | 12V 16.67A switching power supply |
12V 6A switching power supply | 12V 20A switching power supply |
12V 7A switching power supply | 12V 25A switching power supply |
12V 8A switching power supply | 12V 30A switching power supply |
12V 10A switching power supply | 12V 40A switching power supply |
12V 12.5A switching power supply | |
24V switching power supply description |
24V 1.5A switching power supply | 24V 9A switching power supply |
24V 2.5A switching power supply | 24V 10A switching power supply |
24V 3A switching power supply | 24V 11A switching power supply |
24V 4A switching power supply | 24V 12A switching power supply |
24V 5A switching power supply | 24V 13A switching power supply |
24V 6A switching power supply | 24V 14A switching power supply |
24V 7A switching power supply | 24V 15A switching power supply |
24V 8A switching power supply | 24V 16.7A switching power supply |
24V 8.5A switching power supply | 24V 20A switching power supply |
FAQ:
>>Are you manufacturer, trading company or agent?
We are professional manufacturer with 10 years experience in electronic industry since 2007 in Shenzhen, China.
>>Do you accept small quantity orders
Yes, we accept small quantity sample orders for testing, but not for free, and customers should pay for samples and freight. However we can return back the costs once large quantity orders are set.
>>How about the quality of your products?
Quality is the core. All of our products have OVP, OCP, OLP, OTP, SCP protection. CE CB ROHS FCC ERP are all approved by authoritative labs.
>>Do you accept OEM&ODM?
OEM, ODM & Customized order are highly welcome. Customized Packing is also accepted.
>>How about the shipment and payment?
Delivery time: usually 1 day for sample orders, within 3 days for small quantity orders, 5 to 7 days for large quantity orders.
Shippment: small quantity by express (DHL, UPS, FEDEX, TNT, EMS); bulk order by sea, urgent order via air to airport.
Payment: T/T(30% deposit in advance), L/C, Western Union, Money Gram and paypal.
>>How about your after-sales service?
We accept replacement or refund within 30 days after you received the products for the original quality matters or other problems caused by us according to the sales contract.If you want to know more about product or our company,
Pls not hesitation to contact us!
SHENZHEN YIDASHUN TECHNOLOGY Co., Ltd. Shenzhen Yidashun Technology Co., Ltd. Is a high-tech enterprise approved by government, dedicated to the R&D, manufacture and sales of laptop adapters, other AC/DC adapters, universal laptop adapters, swiching power supply and waterproof LED driver. The company is founded in 2007, it has a R&D team with 10 engineers, who can provide the whole solution of power adapters and power supplies for clients; Excellent sales team export our products to European and American countries, Middle East countries, HK, Southeast Asia countries and Oceania. The company is located in shenzhen, there are more than 300 staffs, owning more than 5, 000 square meters of development and production base.
Currently we start new projects selfie stick monopod, USB patch board and USB socket, we make our own special mould and our own color box to make them different in the market! And we offer cost prices to expand the market and support our each client! Welcome to inquiry!
QC Team: A QC team with more than 20 professional and technical personnel. To ensure 100% products checking.
Material: Strictly control of material using, meet international requested standards.
Semi-finished products inspection: Product inspection before 100% finished.
Production line test: With work team or data engineer who will inspect machines and lines at fixed period.
Finished Product Inspection: Quality and property test before products are packed and loaded.
Cercificate: CE, RoHS, REACH, FCC, ERP, CB, GS, TUV, UL, cUL, CCC, PSE
WARRENTY
♥ Normal Production according to eth sample that confirmed by customers or customer's instruction. So please do give us right and confirmed instruction as well as check the sample carefully before you confirm.
♥ Should you need any assistance with product problems or for warranty claims please feel free to contact us. We are here 7 days a week to help. You will receive a prompt reply from us.
♥ If the product specification above is some different from what you required actually, pls kindly let us know the details, we will be pleased to re-offer you as per your requirement asps.
