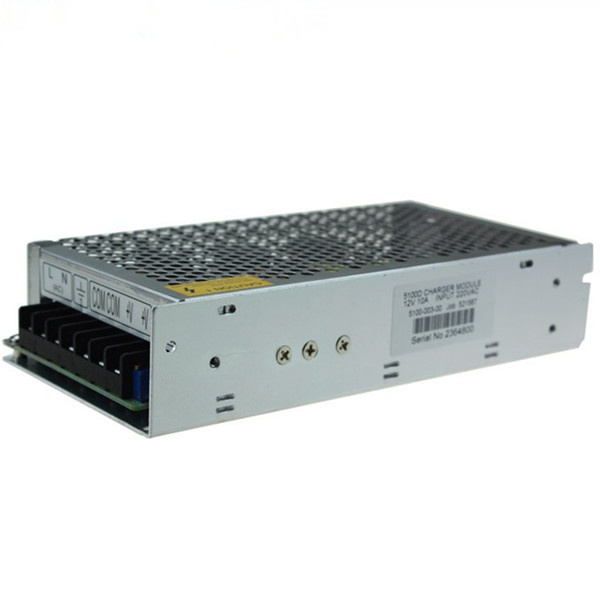

12V 10A LED Power Supply

Product Description

Switching power supply is a widely used daily accessory we can often see. It is an important device for electronic equipments. With new-style design, This 12V 10A Switching Power Supply can keep the voltage stability. It is made of high quality material, durable and safety in use. Not only that, it has been widely used in LED lighting, communication and many other fields. It has low noise and highs reliability, great to give you a good performance. Flexible to turn on or off, this switching power supply is easy to install. It will be your best choice!

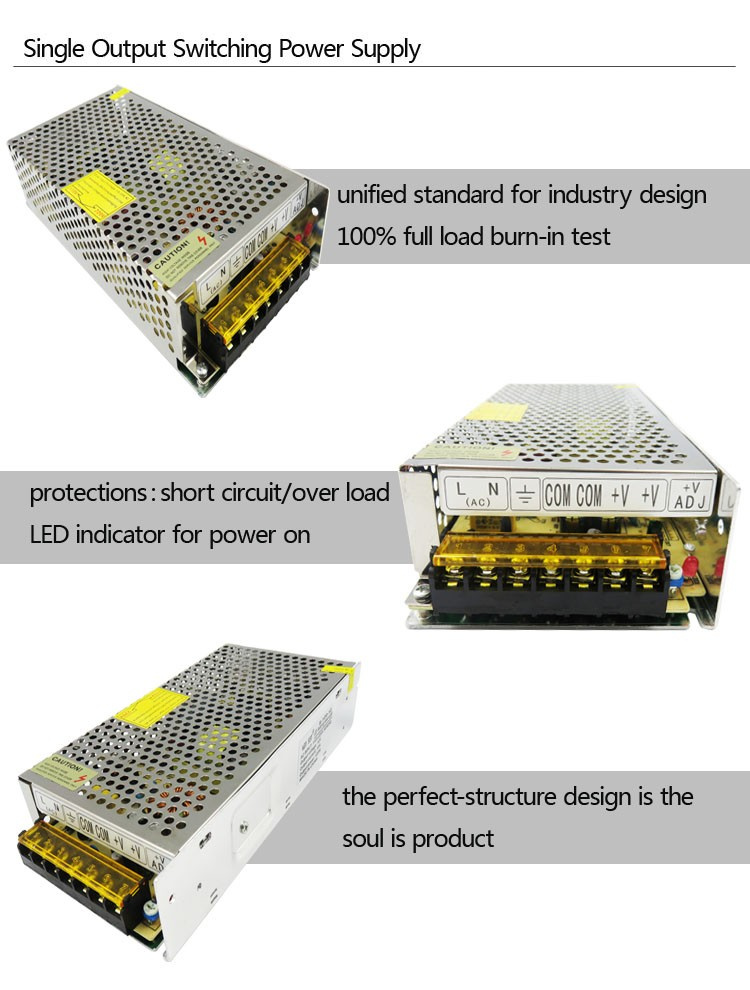

Features

• Protections:Short circuit/Over load/Over voltage
• Cooling by free air convection
• 100% full load burn-in test

• Universal AC input/ full range
• Fixed switching frequency at 56KHz


• 2 years warranty

 Input voltage
 miniaturization
 Short circuit protection / overload / overvoltage
 100% full load burn-in test
Input voltage & frequency range ---------- 85 ~ 264VAC / 47 ~ 63Hz
Starting inrush current --------------- 20A @ 120VAC (cold start)
Output adjustment range --------------- ± 10% (rated output voltage)
Overload protection ------------------- 105% to 200% (rated load), since the resumption
Overvoltage ------------------- 115% ~ 135% (rated output voltage)
Short circuit protection self-recovery -------------------
Output start time --------------- ≤2S @ 120VAC ≤1.0S@230VAC
Output hold time --------------- ≥10mS @ 120VAC, ≥20mS @ 230VAC
------------------- Dielectric strength Input - Output: AC1500V, 1min
                            Input - housing: AC1500V, 1min
                            Output - housing: DC500V, 1min
Working environment ------------------ -10 ºC ~ 50 ºC; 20% ~ 90% RH (non-condensing)
------------------- Design safety standards reference EN / UL60950
--------------- EMC standard design reference EN55022 Class B;
                            EN61000-4-2 / -3 / -4 / -5 / -6 / -11

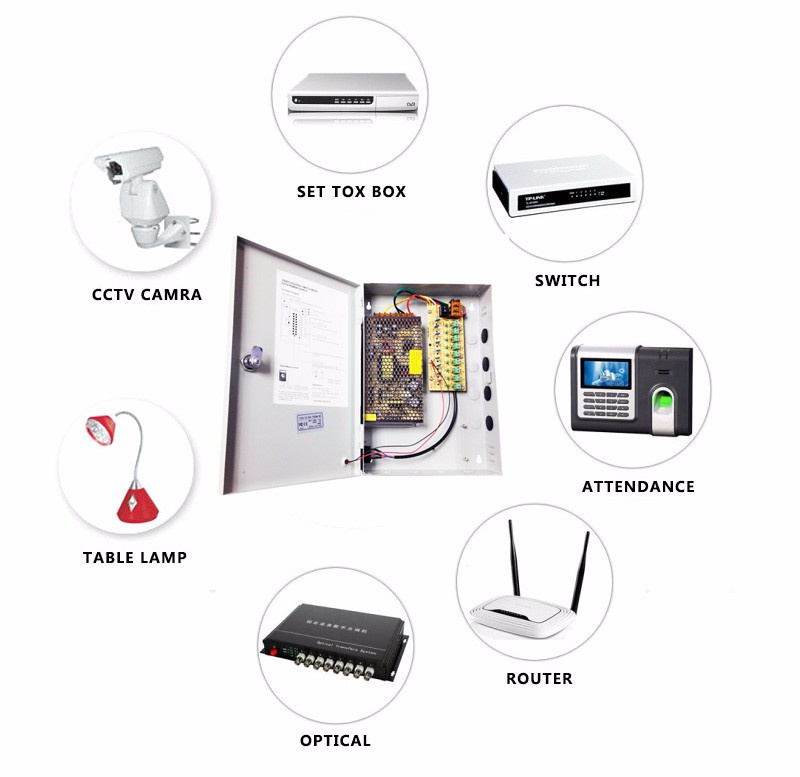

Application
