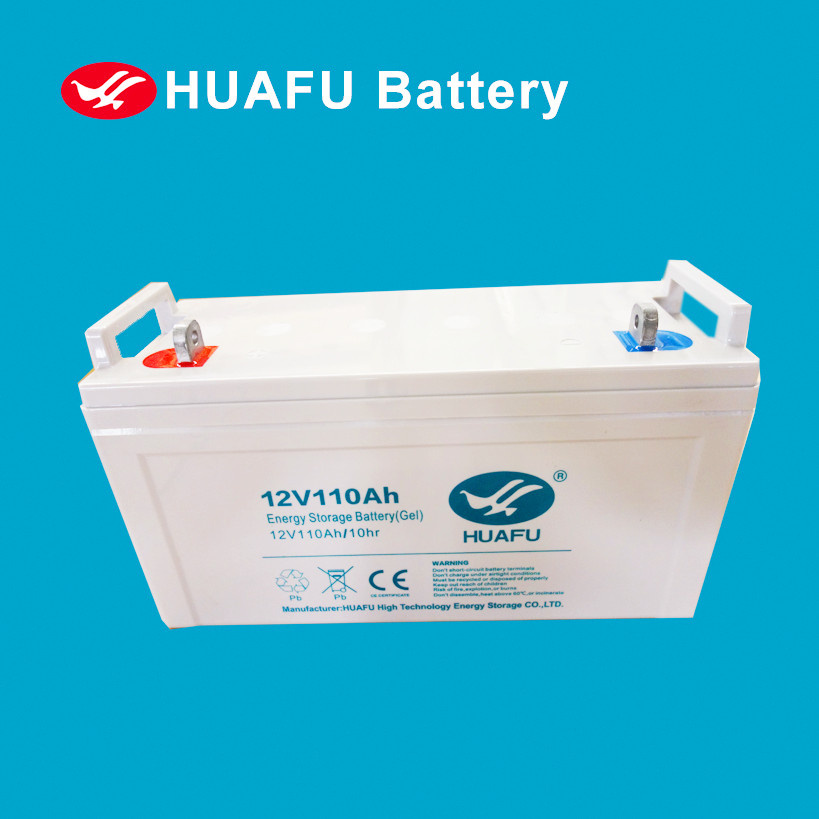

12V 110ah Deep Cycle Battery Power Battery

Prod Model:	6-CN-110
Dimension:	406*174*108*232(L*W*H*Th)mm
Weight:	31.5kgs
Warranty:	3 Years
Design Life:	8 Years
Termianl:	Copper/ Cable/ Lead
Color:	Italia Grey
Maintenance Free:	Yes
Type:	Lead-Acid Batteries
Usage:	off-Grid Power Station
Nominal Voltage:	12V
Discharge Rate:	High Discharge Rate
Shape:	Square Battery
Rechargeable:	Chargeable

Product Description

Factory Information
ranks NO.1 in the sales of gel battery in China and has more than 20 years of experience in producing VRLA AGM/Gel solar battery ,VRLA AGM/Gel Backup battery series (UPS),EV battery ,OPzS, OPzV, Lithium -Iron and lead carbon battery, etc.

Quality system & Certifications
ISO9001,ISO14001,OHSAS18001-2007, CE, UL, IEC, ROHS, SGS

Products Standard
GB/T 19638.2-2005 YD/T 1360-2005 IEC 60896-21/22:2004

Huafu Lead Acid Battery Construction
The battery consists mainly of positive plates, negative plates, separators, electrolyte, valves, a container and a cover.

Element	Electrolyte	Positive Plate	Negative Plate	Container
Material	Colloidal Silicon	Lead dioxide	lead	ABS
Element	Cover	Safety valve	Terminal/Wire	Separator
Material	ABS	Rubber	Copper	Fiberglass

1). Electrolyte: Be immobilized in the cell through the use of a gelling agent or absorbed in the separators and plates. The cells shall have no residual free or bulk liquid electrolyte.
2). Separators: Made of fiberglass. Be porous to electrolyte but electrically insulating.
3). Continer & Cover: Cell containers and covers shall be made of a high impact, flame-retardant plastic
4). Terminal: Terminal posts shall be cast in lead or lead alloy and have a copper core insert.
5). Valve: The valve operate at the pressure limits specified. The valve will not allow ingress of outside air into the unit.


Comprehensive Performances
 1. Patents structure: Have "easy connection storage battery" patent structure, can buried underground to installation, to avoid pole corroded.
2. Excellent recovery performance: Use a special patented alloy and lead paste formula, have a strong capacity of recovery performance after deep discharge.
3. Strong charge acceptance: Used import low resistance materials and advanced technology, current become smaller at end of the charge and has a strong charge accept ability.
4. Wide temperature range: -30 degrees Celsius- 45 degrees Celsius
5. Long life: Using gel electrolyte, no acid layer and has long life.
6. Environment friendly: Not include Cadmium metal which is pollution to environment. With no leaking and ensured the battery's environmental protection and safety.


Rated Voltage	12V
Rated Capacity	110 Ah(10 hr, 1.80 V/cell, 25 ºC)
Approximate Weight (Kg,±3%)	31.5 kg
Terminal	Cable(4.0 mm²×2 m)/ Lead terminal(M8)
Maximum Charge Current	27.5A
Ambient Temperature	-25~50 ºC
Case	ABS
Dimension (L*W*H*TH,±3%)	329*172*214*236 mm
Application	Solar (wind) house-use system, Off-Grid power station, Solar (wind) communicationbase station, Solar street light, Mobile energy storage system, Solar traffic light, Solarbuilding system, etc.




Shipping Package
1) In carton packing with wooden pallet
2) In carton packing in wooden box


20FT=16Boxes=720Pcs
In carton		Packing in wooden box
Pcs/Ctn	Ctn Size	Ctns/Box	Box Size
1	342*185*273mm	45	1075*995*990mm




FAQ
1. Are you a factory?
Yes, we are manufacturer, the factory located in Yangzhou city, Jiangsu province.

2. How many workers in your factory?
  About 1000 workers.

3. Is it a maintenance free battery?
  Yes,it is sealed maintenance free battery.

4. What kinds of battery will you provide?
We can provide full range of 2v/12v gel and lead acid battery, lead carbon battery ,EV battery, tubular battery, lithium-ion battery and so on.

5. Where can we use the batteries?
Our batteries can be widely used in UPS and computer standby power supply, Solar and wind system, Control system, Telecommunication system, Emergency light system,Alarm system, Security system, Firefighting equipment standby power supply, railway system, Ship equipment, Aeronautical facility, Electric toys, Power tools, Emergency lamp, Medical treatment equipment, Power system, Power station, Standby power supply, Military equipment, Telephone switching system etc.

6. Can your battery meet CE requirements?
Yes, our battery meet CE, UL, ISO9001, ROHS and TLC, can be exported to almost every country .

7. Can you provide OEM service?
Yes, OEM/ODM is available, we can print your picture or logo on the battery and box.

8. Do you have after-sales service?
Yes, battery with quality problems will be changed as long as the battery still under warranty period.

9. If i place an order now, how long it will takes you to arrange the delivery?
If we have finished batteries,usually it will takes 10-15 days to arrange the shipment. Otherwise, it will takes more than 15 days cause we need to arrange the production.



Other 2 Volt Products

Model	Normal Voltage  (V)	Normal Capacity (Ah)	Dimension L* W*H*TH(with terminal)mm
CN(J)-200	2	200	171*106*330*342
CN(J)-300	2	300	171*151*330*342
CN(J)-400	2	400	196*171*330*342
CN(J)-500	2	500	241*171*330*342
CN(J)-600	2	600	285*171*330*342
CN(J)-800	2	800	383*171*330*342
CN(J)-1200	2	1200	510*175*337*347
CN(J)-1500	2	1500	318*341*341*351
CN(J)-2000	2	2000	433*342*341*351
CN(J)-2500	2	2500	629*346*341*351
CN(J)-3000	2	3000	629*346*341*351
CN(J)-3600	2	3600	696*340*330*342

 Other 12 Volt Products

Model	Normal Voltage  (V)	Normal Capacity (Ah)	Dimension L* W*H*TH(with terminal)mm
CN(J)-24	12	24	165*126*175*181
CN(J)-30	12	30	196*165*174*181
CN(J)-40	12	40	196*165*174*181
CN(J)-50	12	50	229*138*210*230
CN(J)-60	12	60	350*166*174*174
CN(J)-65	12	65	350*166*174*174
CN(J)-70	12	70	350*166*174*174
CN(J)-80	12	80	329*172*214*236
CN(J)-90	12	90	329*172*214*236
CN(J)-100	12	100	329*172*214*236
CN(J)-120	12	120	406*174*208*232
CN(J)-150	12	150	483*170*240*240
CN(J)-180	12	180	522*240*219*244
CN(J)-200	12	200	522*240*219*244
CN(J)-250	12	250	520*269*220*245
