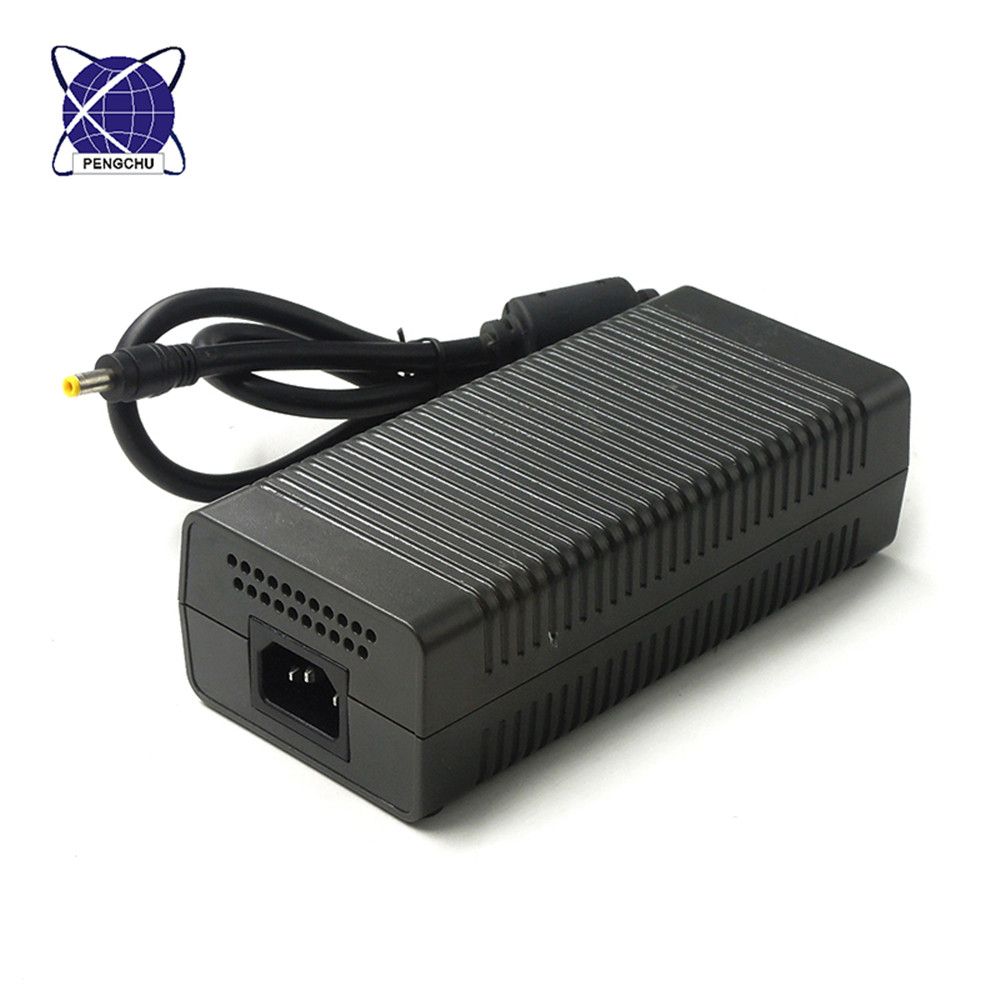

12V 12.5A AC DC power adapter

Name: 12V 12.5A AC DC power adapter
Brand: all-electronics-online.com
SKU: 840285075
Availability: InStock
Rating: 5 (42 reviews)

Price:	US $ 15.5/Piece
Min Order:	100/Piece
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	PC-120125
Input Voltage:	100-240V
Output Power:	150W
Output Voltage:	12V
Output Current:	12.5A
Efficiency:	85% Min
Material:	100% PC
Aging Test:	100% Full Load Test

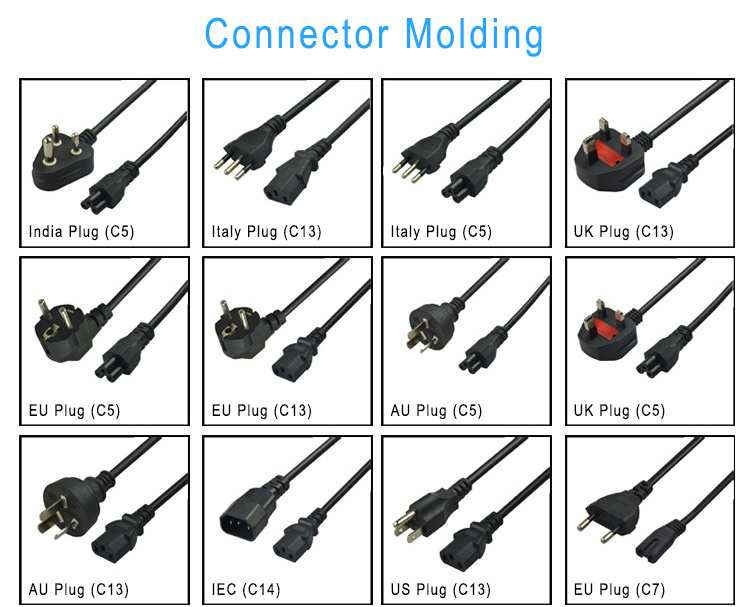

AC Plug:	EU,US,UK,AU Plug or Your Demand
DC Power Cord:	0.9m,1.2m,1.5m or Your Demand
Product Dimension:	1687550mm
Usage:	CCTV Camera,3D Printer,AC Motor
Certification:	CE,FCC,RoHS

Product Description

12v 12.5a ac dc power adapter

Features:

(1)High efficiency, High reliability, Long life time

(2)Efficiency: 88% min

(3)Approved CE RHOS FCC certification

(4)Warranty: 1 year

(5)Protection: Over current protection, Over voltage protection, Short circuit protection; Over temperature protection.

(6) Real power, high reliablity, long life
IEC320-C14, IEC320-C6 AC inlet optional
OEM/ODM welcome (special voltage & dc connector & logo & package).

(7)Suit for: Laptop adapter, LED, LCD, CCTV camera, Motor, Computer, etc.

Input	Voltage Range	90~264Vac(Normal Reated Input Voltage is 100~240Vac)
	Frequency Range	47/63Hz
	Efficiency	85%min
Output	DC Voltage	12V
	Rated Current	12.5A
	Rated Power	150W
	Ripple&Noise	<120Mvp
	Voltage Tolerance	±5%
	Line Regulation	±1%
	Load Regulation	±5%
Protection	Over Load	Yes
	Over Voltage	Yes
	OverTemperature	Yes
	Short Circuit	Yes
Environment	Working Temp.	-10~+65ºC
	Working Humidity	20~90% RH non-condensing
	Storange Temp., Humidity	-20~+85ºC, 10~95%RH
OTHERS	Certificates	CE-EMC CE-LVD ROHS FCC etc.
OTHERS	MTBF	40 K hrs min. MIL-HDBK-217F (25ºC)

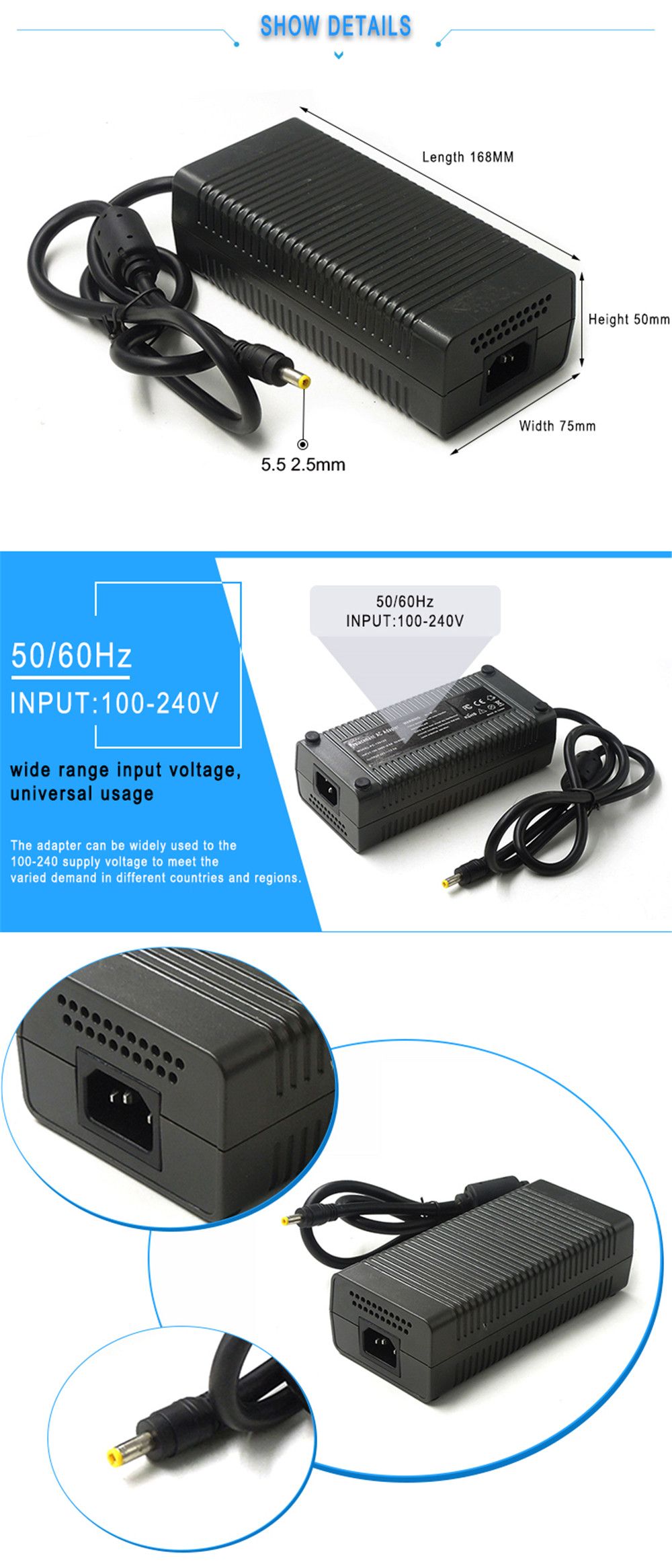

Product show:

Shenzhen Pengchu Industry Co., Ltd. Was approved to establish by Shenzhen Administration for Industry and Commerce in 2004 and has passed ISO9001: 2000 international quality system certification.

We specialize in developing, producing and exporting switching power supply and power adapters for laptops, as well as other related accessories. As a measure to enhance the quality of our products, we have introduced the most up-to-date testing equipment from overseas markets to ensure that each product undergoes strict quality control from design to packing.

All the products are 100% aging test. With CE, FCC, RoHS, CB, ETL, SAA, C-TICK, PSE ceritifcates. OEM and ODM orders are always welcome.

"Customer foremost" is our unchangeable service tenet. Several years' hard work brings us trust and confidence from our customers. Our sales network spreads to every corner of the world. We would like to work hand in hand with our business partners to create a more wonderful future.

Shenzhen Pengchu Industry Co., Ltd is always here to help you!
