| Prod Model: |
FG131 |
| Item Name: |
12V120ah Lead Acid Battery |
| Maintenance Type: |
Free |
| Size: |
409*176*225*225mm |
| Weight: |
35kg |
| Material: |
Fire Proof Case |
| Warranty: |
2 Year |
| Terminal Type: |
Copper/Lead |
| Cell: |
6 |
| Certificate: |
Ce ,UL.ISO.PV |
| Plate: |
Flat Plate |
| Type: |
Lead-Acid Batteries |
| Usage: |
Electric Bicycle |
| Nominal Voltage: |
12V |
| Discharge Rate: |
High Discharge Rate |
| Shape: |
Square Battery |
| Rechargeable: |
Chargeable |
Product Description

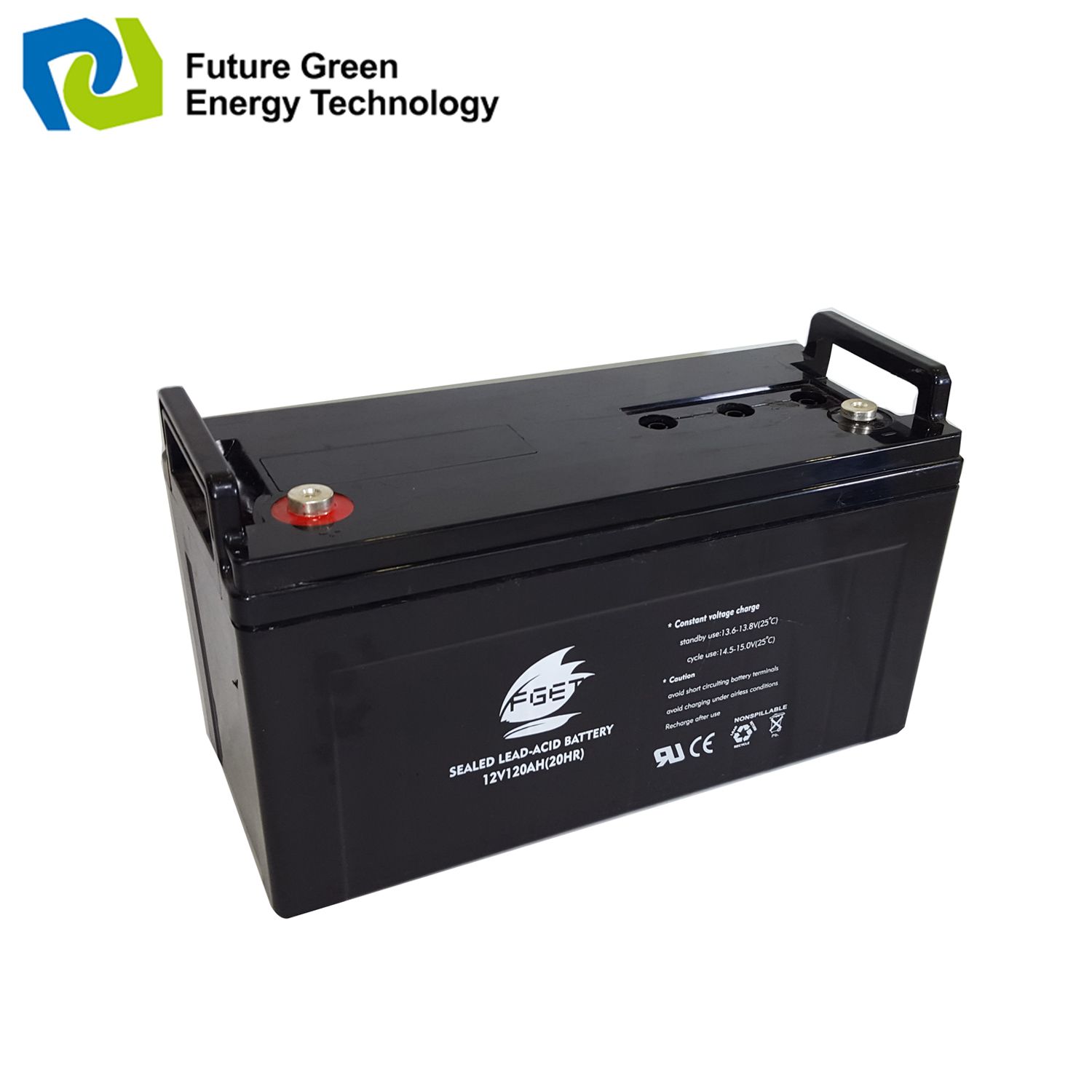

12v 120ah Deep Cycle UPS Storage Battery for Backup SystemFeatures1. Long battery life, high capacity, Superior of recovery after discharge.
2. ABS material: increase the strength of battery container. (Flame-retardant ABS is optional)
3. High purity raw material: ensure low self discharge rate.
4. Absorbent Glass Mat(AGM) technology for efficient gas recombination of up to 99% and freedom from
electrolyte maintenance or water adding.
5. Silver- coated copper terminals, brass insert terminals and lead terminals improve the electric conductivity.
6. Pb CaSn alloy for plate grids: less gassing, less self-discharging high quality.
7. Maintenance-Free Operation

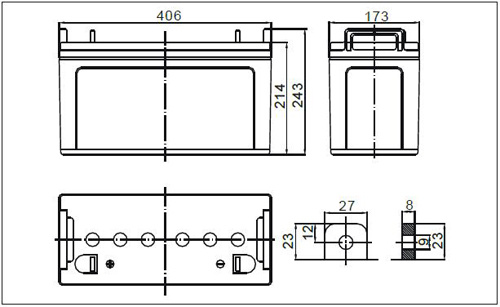

8. Low Self-DischargeBattery outsize: Battery parameter:
| Nominal Voltage | 12V |
| Capacity (10 hr 25 ) | 120Ah |
| Design Life | 5 Years |
Dimensions | Length | 409 mm (16.1 inch) |
| Width | 176 mm (6.93 inch) |
| Height | 225 mm (8.86 inch) |
| Total Height | 225 mm (8.86 inch) |
| Approx.Weight | 35 Kg |
Capacity 25 (77 ) | 10 hr rate | 120Ah |
| 3 hr rate | 96Ah |
| 1 hr rate | 78Ah |
| Internal Resistance (Full charged Battery at 25 (77 ) | 4 m |
Capacity affected
by Temperature (20hr) | 40 | 102% |
| 25 | 100% |
| 0 | 85% |
| -15 | 65% |
Self-Discharge at | 3 month | Remaining capacity: 91% |
| 6 month | Remaining capacity: 82% |
| 12 month | Remaining capacity: 65% |
| Normal operating temperature | 25 3 (77 5 ) |
| Operating temperature range | -15 ~50 (5~122 ) |
| Float charging ) | 13.6 to13.8V |
| Cyclic charging ) | 14.5 to 14.9V |
| Maximum chaging current | 32A |
| Terminal material | Pb |
| Maximum Dischage current | 800A(5sec) |

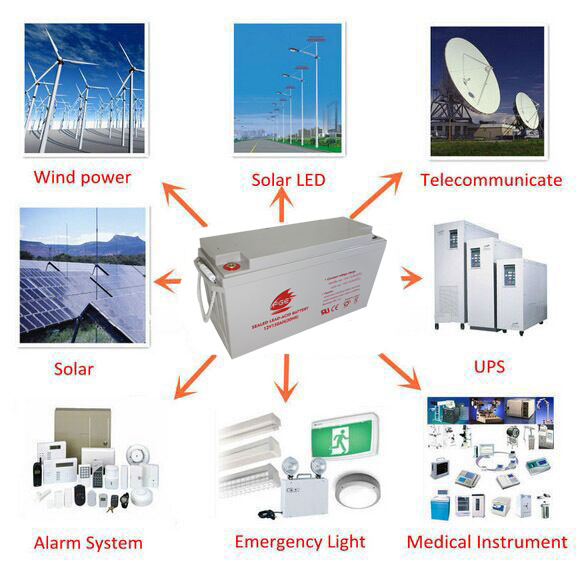

Applications:
- Solar and wind systems
- Cable TV
- Telecommunications
- Wheelchair
- Marine Equipment
| - Military Equipment
- Emergency lighting
- Power Plants
- Medical Devices
- Golf Cart
|
Battery Use and Maintenance:
1) Please use constant-voltage charge.
2) In floating charge, the voltage is 2.23 to 2.27 per unit cell.
3) In cycle use, the voltage is 2.35 to 2.45 per unit cell, the max. Current is no more than 25%° C
4) Please do tighten the bolts to avoid sparkle and poor contact when the battery is in use.
5) Please do not use it near the heat source and open flame.
6) Please keep it at low temperature. Please change it while there is liquid leaking or damage.
Lead acid battery series:
| Style | Size(mm) | Plate | Weight(kg) |
|
| SJ12V1.3Ah | 97*43*51*57 | 24 | 0.53 |
| SJ12V2.6Ah | 70*47*99*105 | 24 | 0.8 |
| SJ12V5.5Ah | 90*70*101*107 | 36 | 1.6 |
| SJ12V7Ah | 151*65*94*100 | 48 | 2.1 |
| SJ12V12Ah | 151*98*95*101 | 72 | 3.2 |
| SJ12V17Ah | 181*77*167*167 | 48 | 4.9 |
| SJ12V24Ah | 177*165*126*126 | 66 | 7.3 |
| SJ12V24Ah | 177*165*126*126 | 42 | 8.3 |
| SJ12V24Ah | 177*165*126*126 | 42 | 8.7 |
| SM12V33Ah | 196*131*155*180 | 42 | 9.2 |
| SM12V40Ah | 196*165*175 | 42 | 12 |
| SM12V55Ah | 229*138*208*227 | 48 | 15 |
| SM12V55Ah | 229*138*208*227 | 54 | 16.5 |
| SM12V65Ah | 350*166*175 | 66 | 19 |
| SM12V70Ah | 350*166*175 | 72 | 21 |
| SM12V80Ah | 350*166*175 | 78 | 22 |
| SM12V90Ah | 307*168*208*227 | 66 | 25 |
| SM12V100Ah | 328*172*222(222) | 66 | 28 |
| SM12V120Ah | 406*174*208*233 | 90 | 35 |
| SM12V134Ah | 340.5*1738280(285) | 66 | 36 |
| SM12V150Ah | 483*170*241*241 | 102 | 43 |
| SM12V180Ah | 532*207*215*240 | 126 | 52 |
| SM12V200Ah | 522*240*219*244 | 126 | 58 |
| SM12V210Ah | 522*240*219*228 | 150 | 61 |
| SM12V260Ah | 522*240*219*228 | 162 | 69 |

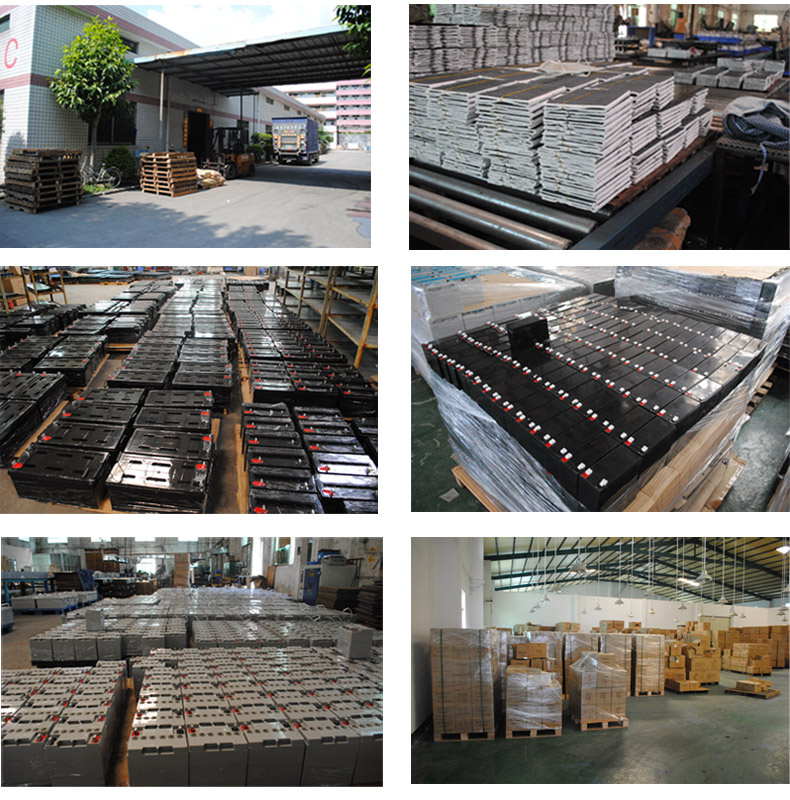

Factory Show:

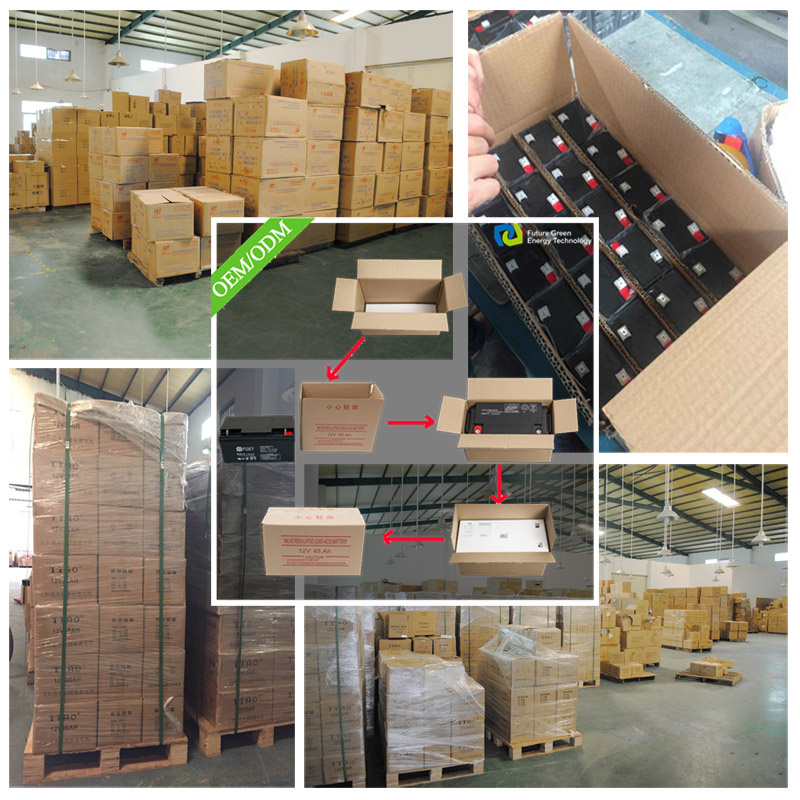

Packing Details:
Our Services:
Samples and OEM, Warranty and After-Sale Service:
- Sample can be provided for quality testing
- OEM Welcomed
- Warranty:2 Year
- After-Sale Service: 24 Hour-Hot Line for Consultacncy and Technical Support
3.Usually within 24 hours, we will email you the best solutions.
2. we will submit your case to our after sales department.
1. Email us about PI number, serial number,Product S/N number, show us more details such as: pictures, your testing report or video, if it is the quality problem of product itself, we will resend a new one in next order.
How To Ask for Support if products failure in warranty?
Hello, friends. We are a company with two factory called Future Green Energy Technology based in Guangzhou China. FGET provides solar power system and kinds of batteries globally.
Future Green Energy Technology, is your personal home clean energy solutions provider. This company is a future-oriented Emerging company, is committed to provide clean energy for global world.
The first main product is automotive battery and sealed lead acid battery, which is mainly used for car, truck, taxi, bus, ship, solar, UPS, etc^
The Company has ventured into retail market segment and has nationwide presence through a network of branch offices and channel partners. The Company focuses on being a responsible corporate citizen through active participation in solar power projects and also working with electric vehicles manufacturers.
Commitment to quality, consistency, innovation and service is taking the Company through a steady growth in the competitive market. The Company is ISO certified.
Website: www.fget4u.com
