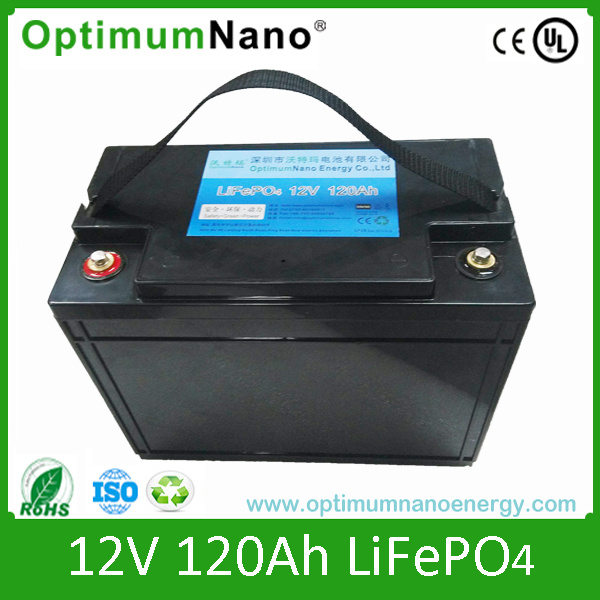

12V 120ah Lithium Battery for Back-up Power System

Prod Model:	OPT-012120
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Rated Voltage:	12 V
Rated Capacity:	120 Ah
Max Charge Voltage:	14.6 V
Warranty:	24 Months
Type:	Lithium Battery
Nominal Voltage:	12V
Charger Type:	Electric Charger
Size:	AA
Compatible Battery Type:	LiFePO4

Product Description

7 edges in performance of Optimum LiFePO4 battery:

1. High dimension ratio power: 32750-7Ah weight ratio power is 135Wh/kg, dimension ratio power is 370Wh/L; 32650-5Ah weight ratio power is 110Wh/kg, dimension of ratio power is 370Wh/L.
2. Long cycle and service term: 1C charge/discharge, 100% discharge depth, 80% capacity after 2000 charge/discharge cycles. Sevice term above 8 years on ev;
3. Good safey performance: No explosion and burning after safety testing like overcharging/discharging, short-circuit, dropping, squeezing, heating, penetrating, etc.
4. Good performance at high or low temperature: 105% capacity can be released when charge/discharge at 55 oC; 80% capacity can be released when charge/discharge at -15oC...
5. Small self-discharge current: Rest for one month with half soc, self-discharge current less than 5%;
6. High efficiency of charging: Capacity efficiency ( ampere hour efficiency) usually 100%, 100Ah for charging and 100Ah for dicharging;
7. Good performance of heavy current: The capacity stays the same with 100% capacity when the battery discharge at different rate at 0.1C-5C.

Features of Optimumnano LiFePO4 battery pack:

1. Pack assembly technique: Use the most mature cylindrical structure design 32650 LiFePO4 battery, making use of assembly technique developed by us to form products of different modules required by customers which are against dust, water, vibration and good in conductivity and heat raleasing. At present, the maximum capacity of module we've produced so far is 900Ah while maximum voltage of pack is 600V;
2. Battery management technique: Self-developed BMS, automatic testing voltage, temperature, current, insulation level and SOC, use advantage lossless balancing function and GPRS wireless data transmission function.
3. Ensuring of best performance of each cell;
4. Seamless exchange: We can produce packs that are the same with lead-acid battery in voltage, capacity and dimension, without changing the mould.
5. Lighter, smaller and stronger: Optimumnano LiFePO4 battery pack system is featured with lighter weight, smaller dimension and stronger power with service term above 10 years.

Quality features of optimumnano LiFePO4 battery pack:

In optimumnano, each cell and pack is produced with the principle of "conformity in 6 aspects and 3 inspections in 3 stages", thus the high stability and reliability can be guaranteed. "Conformity in 6 aspects" is a principal developed by optimumnano's engineers in production and inspection process. The application of ensures conformity of packs and improves service term of pack obviously. And "3 inspections in 3 stages" refers to inspections on battery assembly, paralleled modules and finished packs.


Remarks:
1) MOQ: 1 pcs
The quotation is include BMS and packing, but not the charger
2) Payment: T/T 100% for sample, T/T 30% in advance, 70% before sending the goods for the order.
3) Order Lead time: 5-6 weeks working days for order upon receipt of 30% deposit
4) Sample lead time: Within 2-3 weeks
5) Delivery: FOB Shenzhen port
6) Warranty: 24 Months from the day when you receive the goods

Model		IFR 32650-12V120AH
Case material		ABS case or customized
Standard capacity(0.2C5A)		120Ah
Rated voltage		12V
Max.Charge voltage		14.6V
Cut-off voltage		10.0V
Charge current		20A
Max continuous discharge current		240A
Max.peak discharge current		360A
Length(Max,including case)		265±5 mm
Width(Max,including case)		200±5 mm
Heighty(Max, including case)		165±5 mm
Weight(Approx,including case)		About 14kg
Impedance(Max, at 1000Hz.)		≤ 10 mΩ
Charge method (CC/CV)	Standard	CC	0.2C	14.6V cut off
		CV	14.6V	0.01Ccut off
	Rapid	CC	1C	14.6V cut off
		CV	14.6V	0.05Ccut off
Operate temperature	Charge	0ºC~45ºC
	discharge	-10ºC~60ºC
	storage	-20ºC~45ºC
