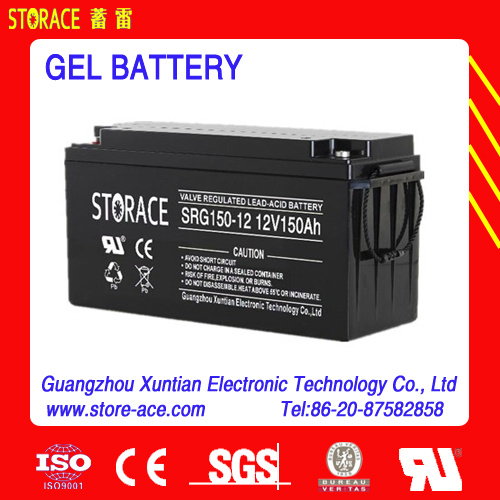

12V 150ah Deep Cycle Battery for Solar System with Long Life (SRG150-12)

Name: 12V 150ah Deep Cycle Battery for Solar System with Long Life (SRG150-12)
Brand: all-electronics-online.com
SKU: 739362825
Availability: InStock
Rating: 4.5 (85 reviews)

Price:	US $ 162.57-256.69/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	20/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	SRG150-12
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Size:	484170240 Mm
Type:	Lead-Acid Batteries
Rechargeable:	Chargeable
Nominal Voltage:	12V
Usage:	Lighting

Product Description

12V 150ah Long life Deep Cycle for Solar System(SRG150-12)

Gel series batteries are designed to meet the requirements of frequent cyclic and high temperature applications. Such as broadband, PVs etc through up-to-date gel technologies. Our gel batteries uses German origin high purity fumed silica to form sulfuric acid thixotropic Gel and fills to the batteries with vacuum to ensure the fully penetration of electrolyte through separators and plates pastes.

Battery Structure

1. Container/Cover: Made of UL94HB and LU 94V-0 ABS Plastic
2. Negative Plates: Use the special PbCa alloy grids, optimize the recombination efficiency and less gassing.
3. Separator: Import high quality AGM separator.
4. Positive Plates: PbCa grids minimize corrosion and prolong life.
5. Terminal post: Cooper material with maximum conductivity, enhance the high current rapidly.
6. Vent Valve: Allows the release of excess gas automatically for safety.

Application

UPS, Broadband, Electric powered vehicles, Electric powered toys, Vacuum cleaners, Medical Equipments, Goof cars and buggies, Wheel chairs, PVs, solar systems, control systems, power systems, wind energy systems, telecommunication /communication systems & etc.

Characteristics

· Gel condition: The effect of sealed reaction is over 99.9%.
· Minor self-discharge.
· Low rate of loss of coolant.
· Long service life.
· Good deep charge cycle performance.
· Good over-discharging recovery performance.
· Widely working environment.

Capacity 77°F(25ºC)	100 hours rate(1.66A 11.1V)	166Ah
	20 hours rate ( 7.5A 10.8V)	150Ah
	10 hours rate(13.8A 10.5V)	138Ah
	1 hour rate(87A 9.6V)	87Ah
Internal Resistance	Full charged battery 77°F(25ºC):7mΩ

Operating Temperature Range	Discharge:-20 to 60 ºC
	Charge:-10 to 60 ºC
	Storage:-20 to 60 ºC
Self-Discharge
3% of capacity declined per month at 20ºC(average)
Max discharge current77°F(25ºC):1000A(5S)
Charge (Constant Voltage)	Float:13.38 to 13.68V/77°F(25ºC)
	Cycle:14.28 to 14.52V/77°F(25ºC)
	Max Current:37.5A

Guangzhou Xuntian Electronic Technology Co., Ltd.is located in beautiful flower city-----Guangzhou, Guangdong province, China. Our company is a high new technical company, and we focus on research and development of lead acid battery, deep cycle battery and Gel storage battery. Beside, we sale full range of different capacity 12 voltage, 6 voltage or 2 voltage battery.

Storage Battery is used mainly in UPS electric power; Telecommunication; Solar or wind power system; Aerospace and navigation; Bank and medical system; Rail transit; Military area and so on.

After years of development, we builded up a professional product reseach and develop term, and a mature engineering technology reseach centre. With such facility and domestic famous senior engineers of battery production as consultant, our technology is leading in battery production field.

Our reseached and developed storage battery earned a high reputation not only in China but also in all over the world. Our batteries sale to European market; American market; Southeast Asia market; Africa market and Middle East market, what is more, they all received high compliment from customer.
