12V 150ah Rechargeable Lead Acid Battery for Solar System
| Price: |
US $ 500-520/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: |
UBT-22650-12V-150AH |
| Capacity: |
56A |
| Weight: |
3.5kg |
| Rated Voltage: |
12V |
| Lead Time: |
10 Days |
| Certificate: |
Ce, UL, RoHS, IEC, Un38.3 |
| Connection Mode: |
Series and Parallel |
| Electrolyte: |
LiFePO4 |
| Usage: |
Solar System |
| Type: |
LiFePO4 Battery |
Product Description
12V 150ah Rechargeable Lead Acid Battery for Solar System | Nominal Voltage | 12V |
| Rated Capacity (20 hour rate) | 150Ah |
| Dimension (Approx.) | Total Height | 240 |
| Height | 240 |
| Length | 485 |
| Width | 172 |
| Weight (Approx.) | 42 |
| Terminal | F16/F12 |
| Capacity affected by Temperature | 40ºC(104ºF) | 102% |
| 25ºC(77ºF) | 100% |
| 0ºC(32ºF) | 85% |
| -15ºC(5ºF) | 65% |
| Self-Discharge at 25ºC(77ºF) | Capacity after 3 month storage | 91% |
| Capacity after 6 month storage | 82% |
| Capacity after 12 month storage | 64% |
| Charge (Constant Voltage) at 25ºC | Initial Charging Current less than 45A |
| Charge Voltage (Cycle): 14.40~15.00 V |
| Charge Voltage(Float): 13.50~13.80 V |
2.Structure
| Component | Raw Material |
| Positive | Lead dioxide |
| Negative | Lead |
| Container/Cover | ABS |
| Sealant | Epoxy resin |
| Safety valve | EPDR |
| Termianl | Copper |
| Separator | Fiber glass |
| Electrolyte | Sulfuric acid |

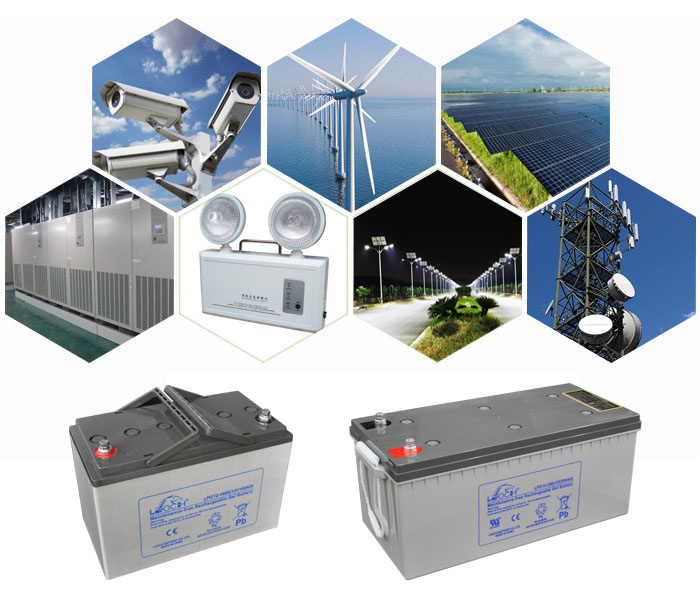

3.Applications
Solar and wind systems
Uninterrupted power supply system
Telecommunications
Alarm and security system
Emergency power supply system (EPS) | Bank system
Emergency lighting
Power Plants
Computer system
Home |
4.Features
Maintenance free
Longer service lifespan
High safety
Low self-discharge
Low internal resistance
Economical and practical
High grade original lead
AGM separator
Quality: all batteries should be tested 5 times before packing to ensure quality ok
Packing: professional workers, non fumigation pallets can be exported to all countries
Introduction
Shenzhen Ubetter Co., Ltd, founded in 2013, has become a comprehensive battery manufacturer with the combination of R&D, manufacturing, marketing and service.
Shenzhen Ubetter, The Leader of Li-ion polymer batteries manufacturer, located in Shenzhen city, is specialized in Power battery series(such as electric-bikes, electric scooter and electric cars, etc), Storage battery, High-rate discharge Lithium ion battery(10C-60C high-rate discharge series such as air modeling and power tool etc), ). High Temperature Li-ion battery(up to 85° ), Low Temperature Polymer Li-ion battery(up to -40° ), Ultra-thin battery(up to 0.43mm). Ubetter has succeeded to solve the power battery core technologies problem: High Consistency and Excellent Safety Performance. Products' performance is leading in domestics market and in path with international standards. Products are widely employed in digital products series(such as MP3, UPS, etc. ), notebook PC series, 18650 series, and sales over 100 countries worldwide.
With over 4000 square meters dust-free workshop, 200 employees, automatic production lines and modernized equipments, Ubetter is offering reliable quality, efficient delivery and competitive price, by which we have gained global reputation. We are qualified for ISO9001, UL, CE, RoHS, IEC, UN38.3, MSDS, patent approves and National Hi-TECH Enterprise certification.
Our advantages
Shenzhen Ubetter Technology Co., Ltd. is a famous enterprise in the line of China's new energy business, mainly producing environmentally friendly power battery for electric vehicles, integrating the research and development, producing and selling of Lithium-ion Battery, wind and solar Energy Storage Battery as well as various kinds of batteries. Bearing with the spirit of pragmatism and innovation, we have been endeavoring to produce products with best quality for all walks of life by people-oriented management and high efficiency production line. Our R&D department has mustered skilled persons with over ten years' experience in battery research and developing, playing an leading role in the field of R&D of more and more series of batteries. Meanwhile we have cooperated with many big battery enterprises for many years and have numerous connections in this line of business. We have abundant battery resources with guaranteed quality. Shenzhen Ubetter Technology Co., Ltd. is located in the beautiful Dapeng bay with charming and beautiful scenery, excellent geographical location and convenient transportation.
