12V 150W IP67 Efficiency 90% AC/DC LED Transformer with Bis Certification

Name: 12V 150W IP67 Efficiency 90% AC/DC LED Transformer with Bis Certification
Brand: all-electronics-online.com
SKU: 748313745
Availability: InStock
Rating: 5 (95 reviews)

Price:	US $ 14.76-16.4/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	10/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	LPS-12E150C
Markets:	South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Output:	150W
Input Voltage:	220V
Output Voltage:	12V/24V
Power Factor:	Low
Efficiency:	90%
IP Rating:	IP 67
Certificates/Standards:	Bis Ce RoHS
Weight(Kg):	0.95
Packing Information:	10 PCS/ Carton, G.W 9.5 Kg
Dimensions(LWH):	3134334mm
Usage:	Construction
Output Type:	Single
Driving Method:	LED Regulator Voltage
Circuit Structure:	PWM Controlled
Certification:	Bis
In-Out:	AC to DC
Power Supply Voltage:	220V
Brand:	Neonpro

Product Description

12V 150W IP67 Efficiency 90% AC/DC LED Transformer with BIS certification

Product Feature of BIS LED Transformer:
*Slim body, Efficiency>0.9
*Constant Voltage type
*Applied for LED Signage/strips/bar lights/LED Modules etc.
*Protections: Short circuit/over load/over voltage/over temp
*100% full load burn-in test
*Low cost, High reliability
*2 years warranty
*BIS CE ROHS approval.

Remarks of BIS LED Transformer:
Trade Terms: EXW, FOB, CIF and CNF term available
Lead time: 15 days after order confirmation
Payment terms: L/C, T/T, Western Union
MOQ: 1 pc

Shipping of BIS LED Transformer:
* DHL FedEx TNT UPS EMS
* By Sea
* By Air

Technical Specification of BIS LED Transformer:

Model no.	LPS-12E150C
Input voltage	170-250VAC 50/60 Hz
Max. power	150 W max
Output type	Constant voltage
Dimming	No
Built-in active PFC	No
Power factor	Low
Efficiency	90%
AC inrush current(max.)	Cold start, 40A@230VAC
Output voltage	12VDC ± 5%
Output current	12.5A max
Overload protection	105% hiccup mode, auto-recovery
Over voltage protection	120% rated output voltage
Withstand voltage	I/P~O/P:1.5kVAC, 1 minute
Operating temperature	-25~40 ºC
Installation	Outdoor waterproof
IP rating	IP 67
Cooling	Free air convection
Certificates/standards	CE

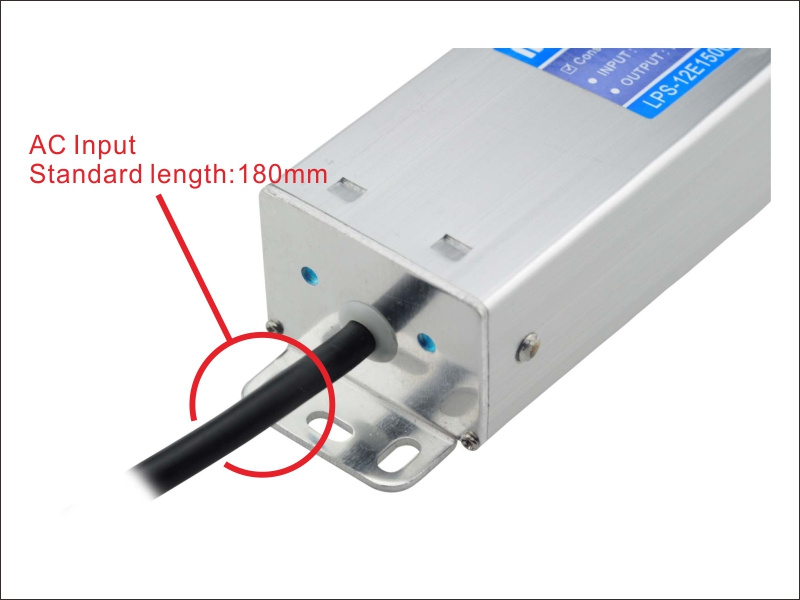

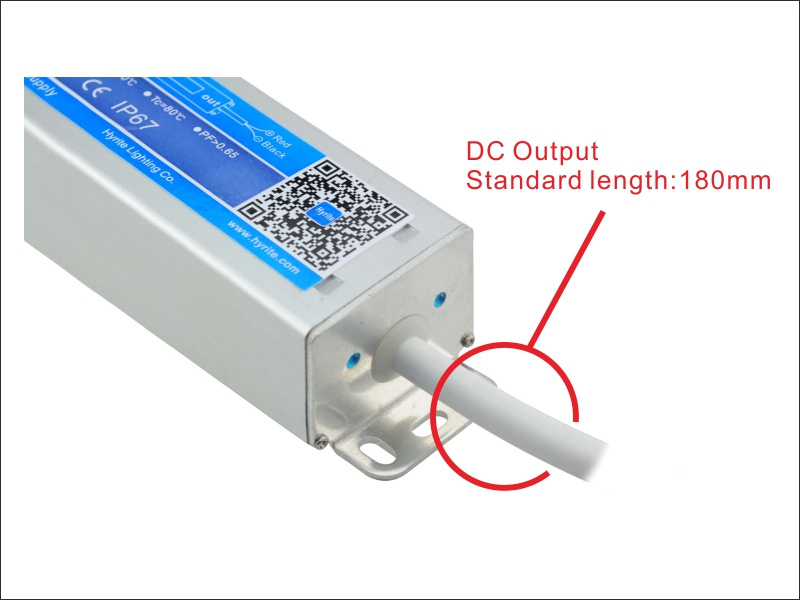

Connection input/output	Input:0.75mm²x3 (18cm) / Output:0.75mm²x2*2 (18cm)
Dimensions(LWH)	3124334mm
Weight(kg)	0.85
Packing information	10 Pcs/ Carton, G.W 9.00KG

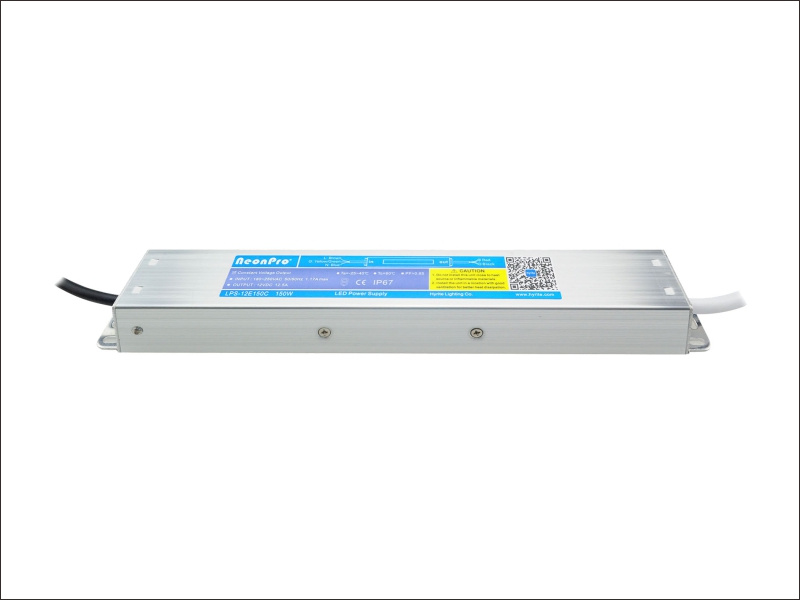

More Pictures of BIS LED Transformer:

Application of BIS LED Transformer:

Hyrite Lighting Company, also known as NeonPro Co, has 20 years experience in the design, development and manufacturing of electronic power supplies, one of an extremely successful range of signage products including, over the last seven years, LED modules and driver units.

The senior management having recognized the ongoing success and further potential of our LED products and utilizing their experience and proven track record in innovative product design and manufacture has formed Hyrite Lighting Company solely dedicated to manufacturing products specifically for the LED signage and lighitng markets.

Our products are surrently being used in many countries under different technical standards in a variety of climate conditions.

Pls kindly check our main products below,

*IP67 Slim high efficiency constant voltage LED power supply (New)

*Traditional IP67 constant voltage waterproof LED power supply

*IP45 Rainproof constant voltage LED power supply.

*IP20 indoor type LED power supply.

*Constant Current LED Driver for LED lighting.

*Dimmable LED driver.

*LED module for Channel letter/light box.

Certificate: CE RoHS SASO SAA TUV UL approved

In addition we offer comprehensive OEM and ODM services to our partners.
