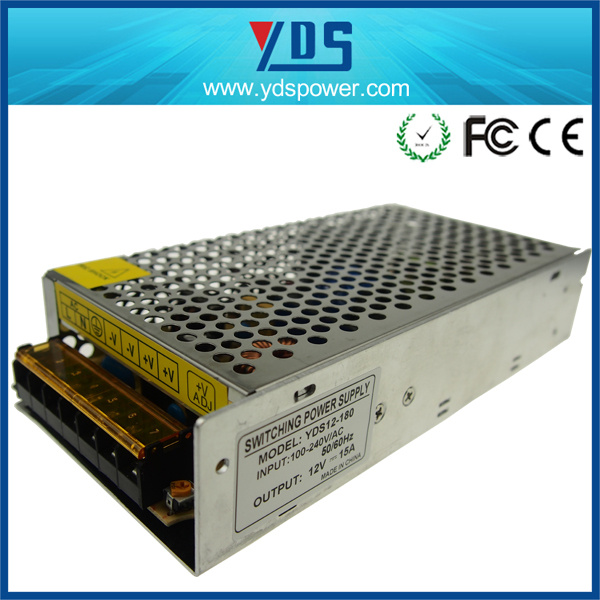

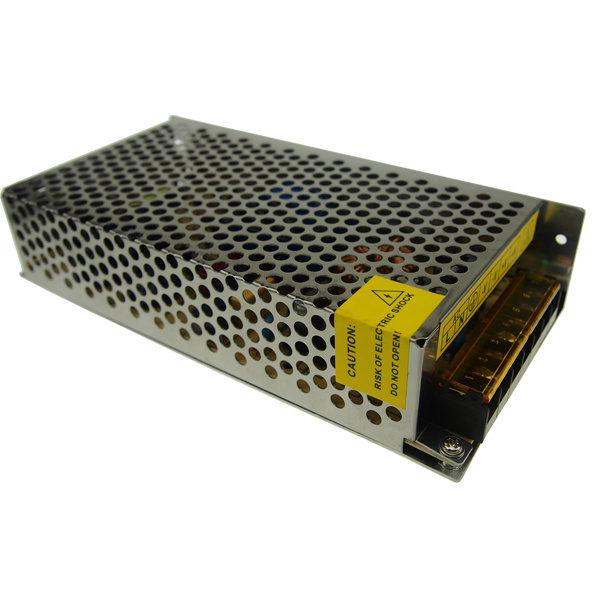

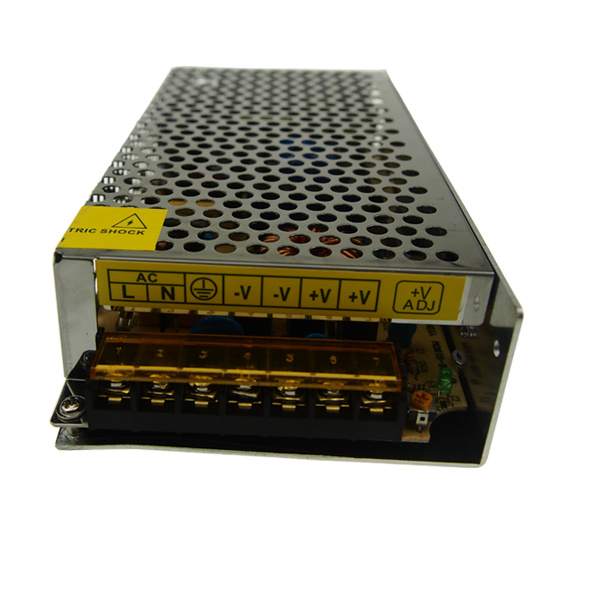

12V 15A 180W Switch Mode Power Supply with Metal Case
| Price: |
US $ 6.03/Piece |
| Min Order: |
100/Piece |
| Pay Type: |
T/T,Western Union,Paypal |
| Prod Model: |
YDSBG12-180 |
| Output: |
12V 15A |
| Output Type: |
Single |
| Warranty: |
1 Year |
| Input Voltage: |
110-220V |
| Connection Mode: |
Series Switching Power Supply |
| Starting Mode: |
Separate-excited Switching Power Supply |
| Voltage Regulating Mode: |
Frequency Modulation Type |
| Power Supplying System: |
Terminal Power Distribution Equipment |
| Certification: |
FCC |
| Output Power: |
180W |
| Brand: |
OEM |
Product Description
12V 15A 180W switch mode power supply with metal case for led/cctv
Specification:
| 12V 15A Technical Specification |
| Model No. | YDSBG12-180 |
| Input | Voltage | AC 100-240V Worldwide |
| Vibration Input Voltage Range | AC 95-265V |
| Frequency | 47-63Hz |
| Output | Voltage | DC 12V |
| Current | 15A |
| Power | 180W |
| Typical Efficiency | 73% |
| Adjustable Range of Voltage | DC 5V-5.5V |
| Max. Ripple & Noise | 250mV |
| Protection | Over Load | 105-115% of Rated Output Power |
| Short Circuit | Protection Type: Auto Recovery |
| Over voltage |
| Over temp |
| Electric Strength | High-pot test | 3KV AC |
| Environment | Working temperature and humidity | -20°C~+60°C,20~90%RH |
| Store temperature and humidity | 20°C~+85°C,10~95%RH |
| MTBF | >200K hrs.@25°C(MIL-HDBK-217F) |
| Warranty | 1 year |
| Feature | Dimension(L*W*H) | 200*109*52mm |
| Weight | 705G |
| Inner box size | 197*93*47mm |
| Inner box weight | 34.5G |
| PCS/CTN | 50PCS/CTN |
| CTN size | 490*253*405mm |
| GW/CTN | 37.75KG |
| Safety & EMC | Safety Standards | EN55015/EN61000-3-2/EN61000-3-3 |
