12V 18W IP67 Waterproof PWM LED Driver with SAA

Name: 12V 18W IP67 Waterproof PWM LED Driver with SAA
Brand: all-electronics-online.com
SKU: 727771675
Availability: InStock
Rating: 4.8 (28 reviews)

Price:	US $ 5.19-5.77/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	LPS-12U18
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Output:	18W
Input Voltage:	110-250V
Output Voltage:	12V
Output Current:	1.25A
Power Factor:	0.65
Efficiency:	86 %
IP Rating:	IP67
Certificates/Standards:	Ce RoHS Saso
Weight(Kg):	0.26
Packing Information:	50 PCS/ Carton, G.W 13.1kg
Usage:	Industry
Output Type:	Single
Driving Method:	LED Regulator Voltage
Circuit Structure:	PWM Controlled
In-Out:	AC to DC
Power Supply Voltage:	110-250V
Brand:	Neonpro

Product Description

12V 18W Waterproof LED Driver for LED Signage with CE

1. Brief Introduction of LED driver
-External driver for LED module, LED strip light, flex ribbon, bar light, spot light, panel light, channel letter,
-Seamless aluminum case, fully sealed & waterproof, IP67
-Constant voltage output
-100% burn-in test

2.Technical Specification of LED driver

Model no.	LPS-12U18
Input voltage	110-250 VAC 50/60 Hz
Max. power	18 W Max
Output type	Constant voltage
Dimming	No
Built-in active PFC	No
Power factor	0.65
Efficiency	86 %
AC inrush current(max.)	Cold start, 40A@230VAC
Output voltage	12VDC ± 5%
Output current	1.5 A max
Overload protection	105% hiccup mode, auto-recovery
Over voltage protection	120% rated output voltage
Withstand voltage	I/P~O/P:1.5kVAC, 1 minute
Operating temperature	-25~40 degree
Installation	Outdoor waterproof
IP rating	IP67
Cooling	Free air convection
Certificates/standards	CE
Connection input/output	Input:0.75mm²x3 (18cm) / Output:0.75mm²x2 (18cm)
Dimensions(LWH)	2003020 mm
Weight(kg)	0.26
Packing information	50 Pcs/ Carton, G.W 13.1KG

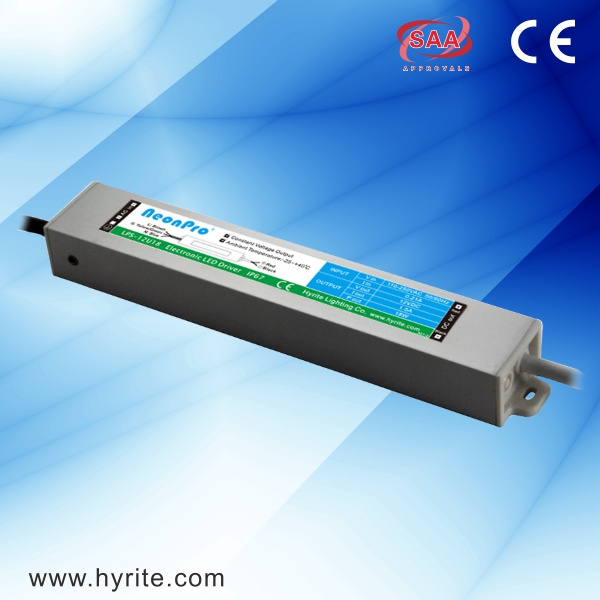

3. Products Details

4. Application of Switching Power Supply
LED module & LED strip
LED light box and channel letter
LED neon light
LED bar
Other signage lighting.

5.Note
*Payment Terms:T/T,L/C,Western Union
*Trade Term:FOB EXW CNF CIF
*Delivery:Express(DHL FedEx UPS EMS TNT);By Air/Sea
*Lead Time:1-2 days for in stock and 3-15 days for out of stock product
*OEM Service is welcome
*Certificate:CE ROHS

6.Workshop & production line:

Hyrite Lighting Company, also known as NeonPro Co, has 20 years experience in the design, development and manufacturing of electronic power supplies, one of an extremely successful range of signage products including, over the last seven years, LED modules and driver units.

The senior management having recognized the ongoing success and further potential of our LED products and utilizing their experience and proven track record in innovative product design and manufacture has formed Hyrite Lighting Company solely dedicated to manufacturing products specifically for the LED signage and lighitng markets.

Our products are surrently being used in many countries under different technical standards in a variety of climate conditions.

Pls kindly check our main products below,

*IP67 Slim high efficiency constant voltage LED power supply (New)

*Traditional IP67 constant voltage waterproof LED power supply

*IP45 Rainproof constant voltage LED power supply.

*IP20 indoor type LED power supply.

*Constant Current LED Driver for LED lighting.

*Dimmable LED driver.

*LED module for Channel letter/light box.

Certificate: CE RoHS SASO SAA TUV UL approved

In addition we offer comprehensive OEM and ODM services to our partners.

We sincerely welcome your visiting and valued advices to us. Any questions from you, our experienced salesperson will feedback to you within 12 hours.
