| Prod Model: |
TL1223 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
178(L)*34(W)*60(H)Mm |
| Weight: |
0.95kg |
| Color: |
Black/White |
| Termiinal: |
F1 |
| Container Material: |
ABS |
| Charge Voltage (Cycle): |
14.4~15V |
| Charge Voltage (Float): |
13.5~13.80V |
| Designed Lifef: |
3 Years |
| Warranty: |
1 Year |
| Type: |
Lead-Acid Batteries |
| Usage: |
Communication Systems Portable Lights Power Toy |
| Nominal Voltage: |
12V |
| Discharge Rate: |
High Discharge Rate |
| Shape: |
Square Battery |
| Rechargeable: |
Chargeable |
Product Description

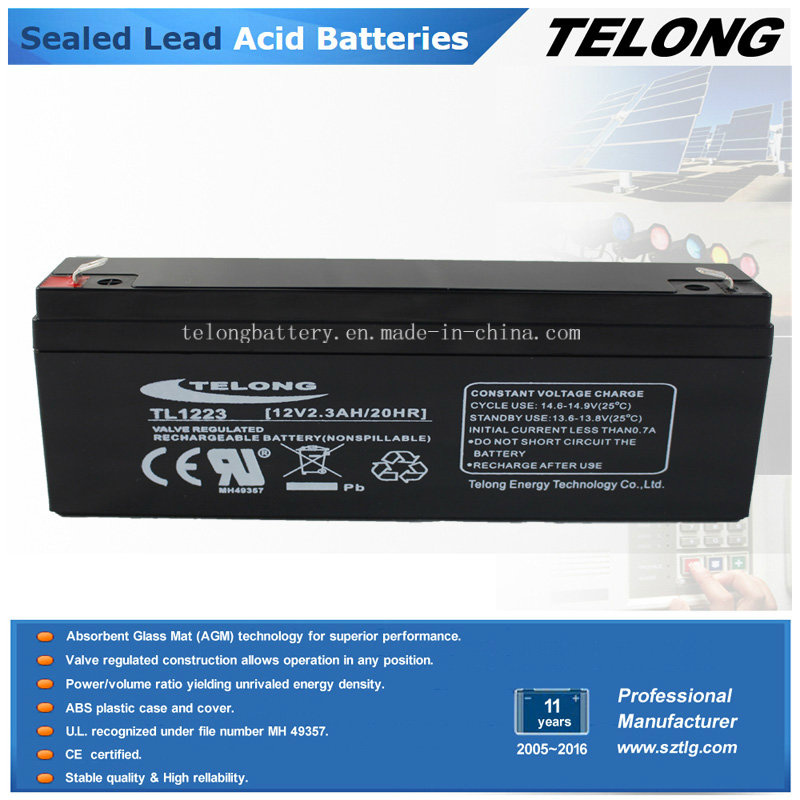

TELONG 12V 2.3Ah storage battery is a maintenance-free valve regulation lead acid battery. It is widely used in ups, electric toy, power tool, emergency lighting and so on.
BATTERY CONSTRUCTION of 12V 2.3ah Sealed Lead Acid Battery
| Electrolyte | Positive Plate | Negative Plate | Container |
| Sulfuric acid | Lead dioxide | lead | ABS |
| |
| Cover | Safety valve | Terminal | Separator |
| ABS | Rubber | Copper | Fiberglass |
SPECIFICATION of 12V 2.3ah Rechargeable Battery
| Nominal Voltage | 12V |
| Rated capacity (20 hour rate) | 2.3 Ah |
| Dimension | Length | 178mm (6.94 inches) |
| Width | 34mm (1.33 inches) |
| Height | 60mm (2.34inches) |
| Weight Approx | 0.95Kg(2.10Ibs) |
FEATURE of 12V 2.3ah UPS Battery
1).Absorbent Glass Mat(AGM) technology for efficient gas recombination of up to 99%and free-dom from electrolyte maintenance or water adding.
2).Not restricted for air transport complies
3).UL CE ROHS-recognized component.
4).Valve Regulated Construction .Can be mounted in any orientation.
5).Computer designed lead, calcium tin alloy grid for high power density.
6).Long service life, float or cyclic applications.
7).Maintenance-free operation.
8).Low self discharge. Long Life Design
9).Wide Operation Temperature Range
10).Available in flame retardant ABS material for the battery case
CHARACTERISTICS of 12V 2.3ah Storage Battery
Capacity
25'C (77'C) | 20 hour rate(0.115A ) | 2.30AH |
| 10 hour rate(0.214A ) | 2.14AH |
| 1 hour rate(1.4A ) | 1.40 AH |
| Internal Resistance | Full charged Battery at 25 'C(77'F ) | 90 milli-ohm |
| Capacity affected by Temp | 40'C (104F) | 102% |
| 25'C (77'F) | 100% |
| 0'C (32'F) | 85% |
| (-15'C )5'F | 65% |
Self-Discharge
25'C (77'F) | Capacity after 3 month storage | 91% |
| Capacity after 6 month storage | 82% |
| Capacity after 12 month storage | 64% |
| Terminal | F1 |
Charge
(Constant Voltage) | Initial Charging Current less than 0.69 A |
| Voltage 14.4-15.0V |
| Voltage 13.5-13.8V |
APPLICATIONS
Remote Switching
Control equipments
Communication systems
Portable Lights
Power tools Electric toys
Alarm systems Emergency systems
Medical equipments
Uninterruptible power supplies (UPS) and stand-by power for computers
| Model | Nominal
Voltage
(V) | Nominal
Capacity
(Ah) | Size | NW |
| L | W | H |
| mm | mm | mm | kg |
| TL1212 | 12 | 1.2 | 98 | 45 | 56 | 0.55 |
| TL1222 | 12 | 2.2 | 70 | 47 | 100 | 0.74 |
| 1223 | 12 | 2.3 | 178 | 34 | 60 | 0.95 |
| TL1223 | 12 | 2.6 | 70 | 47 | 100 | 0.84 |
| TL1226 | 12 | 3 | 90 | 70 | 100 | 1.25 |
| TL1232 | 12 | 3.2 | 135 | 67 | 60 | 1.35 |
| TL1240 | 12 | 4 | 90 | 70 | 100 | 1.3 |
| TL1245 | 12 | 4.5 | 90 | 70 | 100 | 1.35 |
| TL1255 | 12 | 5.5 | 90 | 70 | 100 | 1.5 |
| TL1260 | 12 | 6 | 151 | 50 | 95 | 1.6 |
| TL1250 | 12 | 5 | 151 | 65 | 95 | 1.8 |
| TL1270 | 12 | 7 | 151 | 65 | 95 | 2 |
| TL1280 | 12 | 8 | 151 | 65 | 95 | 2.25 |
| TL1290 | 12 | 9 | 151 | 98 | 95 | 3 |
| TL12100 | 12 | 10 | 151 | 98 | 95 | 3.05 |
| TL12120 | 12 | 12 | 151 | 98 | 95 | 3.4 |
| TL12140 | 12 | 14 | 151 | 98 | 95 | 4 |
| TL12150 | 12 | 15 | 181 | 76 | 168 | 4.6 |
| TL12170 | 12 | 17 | 181 | 76 | 168 | 4.9 |
| TL12180 | 12 | 18 | 181 | 76 | 168 | 5.3 |
| TL12190 | 12 | 19 | 181 | 76 | 168 | 5.7 |
| TL12200 | 12 | 20 | 181 | 76 | 168 | 5.9 |
| TL12240 | 12 | 24 | 176 | 166 | 125 | 8 |
| TL12280 | 12 | 28 | 176 | 166 | 125 | 8.6 |
| TL12330 | 12 | 33 | 196 | 133 | 172 | 10.5 |
| TL12380 | 12 | 38 | 196 | 165 | 175 | 13 |
| TL12450 | 12 | 45 | 196 | 165 | 175 | 15 |
| TL12550 | 12 | 55 | 230 | 138 | 208 | 15.5 |
| TL12600 | 12 | 60 | 348 | 168 | 178 | 18.5 |
| TL12650 | 12 | 65 | 348 | 168 | 178 | 20.5 |
| TL12800 | 12 | 80 | 348 | 168 | 178 | 23 |
| TL12900 | 12 | 90 | 307 | 170 | 208 | 26 |
| TL121000 | 12 | 100 | 328 | 171 | 214 | 30 |
| TL121200A | 12 | 120 | 328 | 171 | 214 | 31.5 |
| TL121200B | 12 | 120 | 409 | 177 | 229 | 35 |
| TL121500 | 12 | 150 | 483 | 170 | 240 | 43 |
| TL122000 | 12 | 200 | 522 | 240 | 219 | 60 |
| TL122200 | 12 | 220 | 522 | 240 | 219 | 65 |
| TL122500 | 12 | 250 | 520 | 268 | 220 | 74 |
