| Prod Model: |
SRD200-12 |
| Markets: |
North America,South America,Africa,Oceania |
| Size: |
522*240*240 Mm |
| Color: |
Black / Dark Gray |
| Cell: |
6 |
| Sealing: |
Glue Sealing |
| Plate: |
Flat Plate |
| Separator: |
AGM |
| Battery Case: |
ABS |
| Terminal Type: |
Lead |
| Safety: |
Explosion-Proof |
| Accessory: |
Screws |
| Type: |
Lead-Acid Batteries |
| Rechargeable: |
Chargeable |
| Discharge Rate: |
Low Discharge Rate |
| Nominal Voltage: |
12V |
| Usage: |
Solar Power System |
| Shape: |
Rectangle |
Product Description

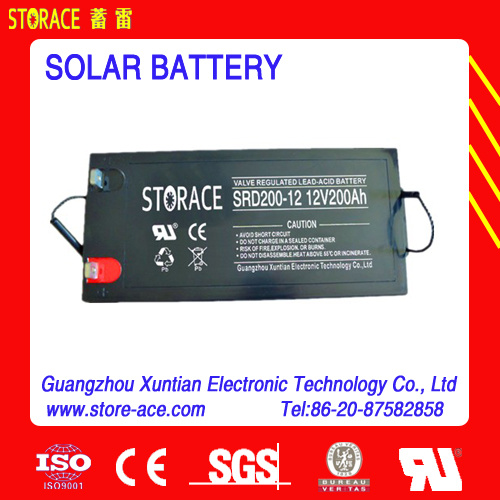

12v 200ah Deep cycle solar battery
(SRD200-12)
Solar series batteries with valve regulated lead acid use particular alloy and material technology design to ensure an excellent performance in various environments, especially high and low temp. Solar series batteries are optimal for storage and conversion of photovoltaic energy and wind energy.
Battery Structure
1. Container/Cover: Made of UL94HB and LU 94V-0 ABS Plastic
2. Negative Plates: Use the special PbCa alloy grids, optimize the recombination efficiency and less gassing.
3. Separator: Import high quality AGM separator.
4. Positive Plates: PbCa grids minimize corrosion and prolong life.
5. Terminal post: Cooper material with maximum conductivity, enhance the high current rapidly.
6. Vent Valve: Allows the release of excess gas automatically for safety.
Application
Solar street light system, solar power home system, Photovoltaic system, Alternative energy system, Electric Utility, Outdoor control equipment, Railroad Utility, control systems, power systems, wind energy systems, telecommunications/communication systems & ups system & etc.
Characteristics
1. Long service life: Designed life is over five years.
2. Good deep charge cycle performance: Good performance in charging, over-discharging and deep-discharging.
3. Good resistance to corrosion and small internal resistance.
4. Widely working environment: The solar battery can be used at widely difference in temperature from subzero 40° C to 60° C.
Good point.
1. Using high-intensity compact battery assembles technology, to avoid the drop of active material, so the battery using life could be extended.
2. No acid mist and no acid corrosion when the battery is working. Battery could be set in office or facility room without anticorrosion treatment.
3. Using low acid electrolyte, to improve the battery charging ability, so the battery deep discharge ability and cycle ability could be improved.
|
Capacity 77°F(25ºC) |
20 hours rate(10.5A 10.8V) |
210Ah |
|
10 hours rate(20A 10.8V) |
200Ah |
|
5 hours rate(37.2A 10.5V) |
186Ah |
|
1 hour rate(135A 9.6V) |
135Ah |
|
Internal Resistance |
Full charged battery 77°F(25ºC):3.5mΩ |
|
Capacity affected by Temperature (20 hour rate) |
104°F(40ºC) |
102% |
|
77°F(25ºC) |
100% |
|
32°F(10ºC) |
85% |
|
5°F(-15ºC) |
65% |
|
Self-Discharge 68°F(20ºC) |
Capacity after 3 month storage |
90% |
|
Capacity after 6 month storage |
80% |
|
Capacity after 12 month storage |
60% |
|
Max discharge current77°F(25ºC):1000A(5S) |
|
Charge (Constant Voltage) |
Float:13.6 to 13.8V/77°F/(25ºC) |
|
Cycle:14.4 to 14.7V/77°F/(25ºC) |
|
Max Current:50A |
Guangzhou Xuntian Electronic Technology Co., Ltd.is located in beautiful flower city-----Guangzhou, Guangdong province, China. Our company is a high new technical company, and we focus on research and development of lead acid battery, deep cycle battery and Gel storage battery. Beside, we sale full range of different capacity 12 voltage, 6 voltage or 2 voltage battery.
Storage Battery is used mainly in UPS electric power; Telecommunication; Solar or wind power system; Aerospace and navigation; Bank and medical system; Rail transit; Military area and so on.
After years of development, we builded up a professional product reseach and develop term, and a mature engineering technology reseach centre. With such facility and domestic famous senior engineers of battery production as consultant, our technology is leading in battery production field.
Our reseached and developed storage battery earned a high reputation not only in China but also in all over the world. Our batteries sale to European market; American market; Southeast Asia market; Africa market and Middle East market, what is more, they all received high compliment from customer.
