Prod Model: |
12V 200Ah |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Model: |
12V 200ah Solar Battery |
Voltage Range: |
2V, 6V, 8V, 12V |
More Use: |
Inverter, Solar &Wind, EPS, Electric, Vehicle |
Size: |
522*240*241*244mm |
Capacity Range: |
4.5ah-250ah |
OEM: |
OEM Your Brand Freely |
Certificate: |
Ce, ISO, Ts16949, SGS, RoHS |
Warranty: |
5 Years |
Company Area: |
100.000square Meters |
Trade Value: |
30.000.000USD |
Type: |
Lead-Acid Batteries |
Usage: |
Boat |
Nominal Voltage: |
12V |
Discharge Rate: |
High Discharge Rate |
Shape: |
Square Battery |
Rechargeable: |
Chargeable |
Product Description

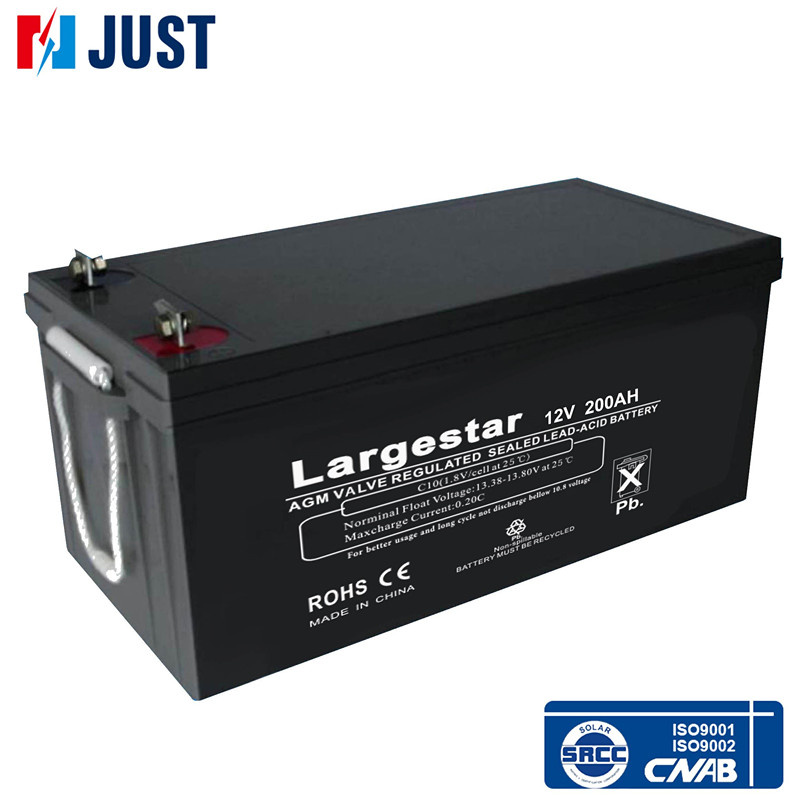

12V 200ah Solar Battery:
1.Long service life
2.High discharge & Low self-discharge rate
3. CE,ISO,TS,RoHS
4. Greater vibration resistanceSolar Battery Advantage:
- Long service life
- High discharge rate
- Low self-discharge rate
- Deep cycle
- Super cycling ability
- Excellent high current performance
- Safe and reliability
- No memory effect
- Variety of installation
- High temperature resistance
- Vibration resistance
- Wide operating temperature range
Solar Battery Applications
Electricity& Communication System
Solar &Wind Energy Storage System
Uninterrupted Power Supply system(UPS)
Emergency Power Supply system(EPS)
Emergency Lighting System &Small Lamp
Control Equipments
Medical Equipment
Railway, Aerospace and navigation
EV
Our Advantage:
-Battery factory since 1979
-Over 100,000m² manufacturing area ,capability of 3,000,000 pcs/year, value of 80,000,000USD.
-Certificate of ISO9001:2000,ISO14001,ISO/TS16949, SGS,CE,ROHS, SONCAP, Green Production Enterprise
UPS battery/Solar Battery/ Deep cycle battery/VRLA battery /Sealed Lead Acid battery
Lead Acid Battery/Emergency Battery/12v Battery/Backup battery/Sealed Battery/Emergency Light Battery /Valve Regulated Lead Acid battery /Storage battery/rechargeable battery /Uninterrupted power battery/EPS/electric vehicle battery/wind battery/Communication System/Inverter battery
SPECIFICATIONS |
Nominal Voltage | 12 V |
Rated Capacity (10 hour rate) | 200AH |
Dimensions (Length*Width*Height*Total Height )/mm | 522*240*241*244mm |
Weight Approx | 40-55kg |
|
CHARACTERIESTICS |
Internal Resistance | Fully charged battery at 25° C | 8 m Ω |
Capacity affected by temperature (20 hour rate) | 40° C 25° C 0° C -15° C | 102% 100% 85% 65% |
Self-Discharge At 25° C | Capacity after 3 month storage Capacity after 6 month storage Capacity after 12 month storage | 91% 82% 64% |
Terminal Type | T9 or T16 |
Charge (Constant Voltage) | Cycle use | Initial Charging Current less than 30A Voltage 14.60~15.00V |
Float use | Voltage 13.60~13.80V |
Zhejiang Just Electric Appliances Limited Company was established in 1979 and now has been developed as a leading lead-acid batteries producer in China. Just is stemmed from Hangzhou West Lake Battery Plant, which was a state-owned enterprise, and now is a large private enterprise group. Just owns more than 100, 000m² Manufacturing area with production capability 3, 000, 000 PCS at value of 80, 000, 000USD.
Equipped with advanced art equipment, top quality technical work force and modern management systems, Zhejiang Just batteries are qualified with ISO9001: 2000, ISO14001, ISO/TS16949, SGS, CE, RoHS, SONCAP and many other special authorized organizations from other countries. In 2011, Just was also awarded as one of the "Green Production Enterprise", which was only given to two companies in China.
After lengthy efforts, now Zhejiang Just' S covers products all range of Lead-acid batteries.
The first main product is automotive battery with dry charged and MF series, which is mainly used for car, truck, taxi, bus, ship, marine starting, etc^
The second main product is VRLA-AGM battery with FM and GFM series, which is main used for UPS/EPS, Electricity& Communication System, Solar &Wind Energy Storage System, Railway, Aerospace and navigation, Military area etc^
The third main product is Electrical Vehicle battery, which is main used for forklift, golf cart and other EV bike.
Also, Zhejiang Just is a member of the China Accumulator Association
