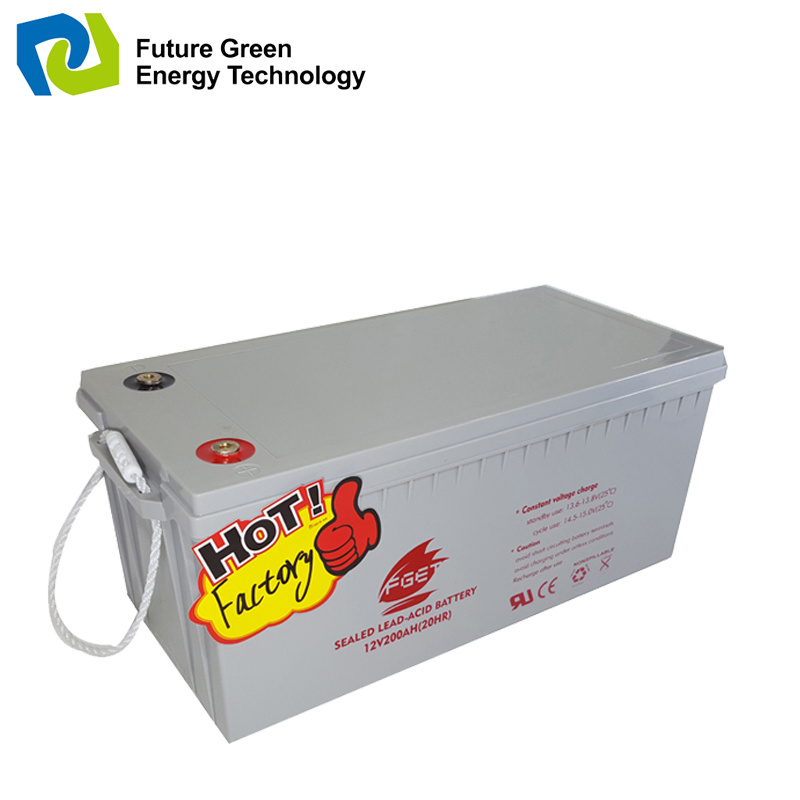

12V 200ah Solar Power Gel Storage Battery for Panel

Prod Model:	FG002
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Item Name:	12V 200ah Solar Power Gel Storage Battery
Maintenance Type:	Free
Size:	522*240*219*244mm
Weight:	60kg/PCS
Material:	Fire Proof Case
Warranty:	2 Years
Terminal Type:	Copper/Lead
Working Temperate:	-15 to 45
Certificate:	Ce ,UL.ISO.PV
Cell:	6
Type:	Lead-Acid Batteries
Usage:	Electric Bicycle
Nominal Voltage:	12V
Discharge Rate:	High Discharge Rate
Shape:	Square Battery
Rechargeable:	Chargeable

Product Description

12V 200AH Solar Power Gel Storage Battery for Panel

Gel battery description:

Gel solar battery accumulator shows some distinctive advantages over flooded battery or AGM battery, such as super thermal stability, high deep discharge capability, good recovery from deep discharge, even if the battery is left discharged for three days, it will recover to 100% of capacity.

With the above-mentioned advantages, the gel battery has long service life, specially suitable for motive power applications, such as golf trailer, folklift, etc. The deep discharge cycles increased 50% as compared with  the AGM battery.

Characteristics
1. Sealed/Maintenance-Free
2. Deep Cycle
3. OEM/ODM free charge
4. Warranty 1-3 years
5. Good quality plates grids
6. Long Service Life
7. Low self-discharge
8. Sufficient Capacity
9. High Discharge Rate
10.Wide Operating Temperature Range
11. Long Shelf Life

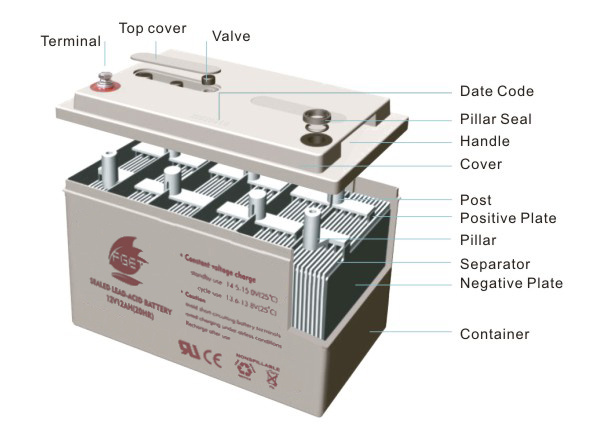

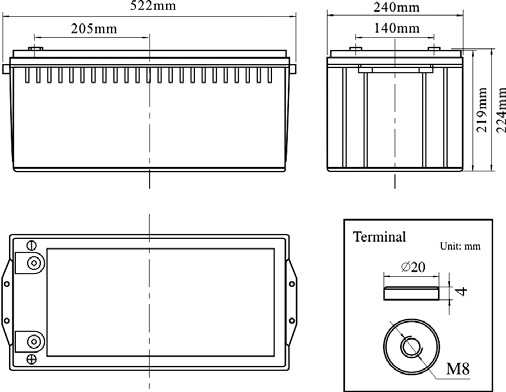

Battery Out Size:Battery Inside Structure:
Product Parameters:


Characteristics
Nominal Voltage			12V
Nominal Capacity (10 hour rate)			200Ah
Capacity 25°C(77°F)		10 hour rate (20A)	200Ah
		3 hour rate (50A)	150Ah
		1 hour rate (110A)	110Ah
Internal Resistance		Full Charged Battery 25°C(77°F)	≤8mΩ
Float Life		25°C(77°F) Float charge at 13.8V	About 3 Years
Capacity affected by Temperature (10 hour )		40°C (104°F)	102%
		25°C (77°F)	100%
		0°C (32°F)	85%
		-15°C (5°F)	65%
Self-Discharge 25°C(77°F)		Capacity after 3 month storage	90%
		Capacity after 6 month storage	80%
		Capacity after 12 month storage	62%
Charge (Constant Voltage) 25°C(77°F)	Cycle	Initial Charging Current Less than 60A Voltage 14.6-15.0V
	Float	Voltage 13.5-13.8V

Application:


Solar and wind systems Cable TV Telecommunications Wheelchair Marine Equipment

Military Equipment Emergency lighting Power Plants Medical Devices Golf Cart

Use and Maintenance:

1) Please use constant-voltage charge.
2) In floating charge, the voltage is 2.23 to 2.27 per unit cell.
3) In cycle use, the voltage is 2.35 to 2.45 per unit cell, the max. Current is no more than 25%° C
4) Please do tighten the bolts to avoid sparkle and poor contact when the battery is in use.
5) Please do not use it near the heat source and open flame.
6) Please keep it at low temperature. Please change it while there is liquid leaking or damage.

Battery Specification:

Gel battery series
Model	Voltage	Capacity C20	Dimension & Weight				Approx .weight	Terminal Type
			Length	Width	Height	Totl height
	(V)	(h)	mm	mm	mm	mm	Kg
GE6V180Ah	6	180	260	182	245	288	23.00	F6
GE6V210Ah	6	200	260	182	247	289	30.00	F6
GE6V225Ah	6	225	321	176	226	246	31.00	F6
GE8V210Ah	8	210	260	182	295	336	36.00	F6
GE12V33Ah	12	33	195	130	159	180	9.50	F5
GE12V40Ah	12	40	197	165	175	182	13.00	F5
GE12V60Ah	12	60	260	168	211	233	20.00	F6
GE12V70Ah	12	70	260	168	211	233	21.50	F6
GE12V100Ah	12	100	331	171	214	224	30.00	F6
GE12V120Ah	12	120	407	174	225	238	33.50	F6
GE12V150Ah	12	150	483	170	241	241	44.00	F6
GE12V200Ah	12	200	522	240	219	244	57.00	F6
GE12V250Ah	12	250	520	268	220	249	67.00	F6
GE12V55Ah-F	12	55	277	106	222	222	16.50	F6
GE12V80Ah-F	12	80	564	115	189	189	25.50	F7
GE12V100Ah-F	12	100	395	110	285	285	30.00	F9
GE12V150Ah-F	12	150	551	110	287	287	48.00	F9
GE12V180Ah-F	12	180	546	125	317	323	53.00	F9
GE2V200Ah	2	200	173	111	330	364	13.50	F6
GE2V300Ah	2	300	171	151	330	364	20.00	F6
GE2V500Ah	2	500	241	171	330	365	31.00	F6
GE2V600Ah	2	600	302	175	330	367	37.00	F6
GE2V800Ah	2	800	410	175	330	365	50.00	F6
GE2V1000Ah	2	1000	475	175	330	367	60.00	F6
GE2V1500Ah	2	1500	400	350	345	382	95.00	F6
GE2V2000Ah	2	2000	490	350	350	382	120.00	F6

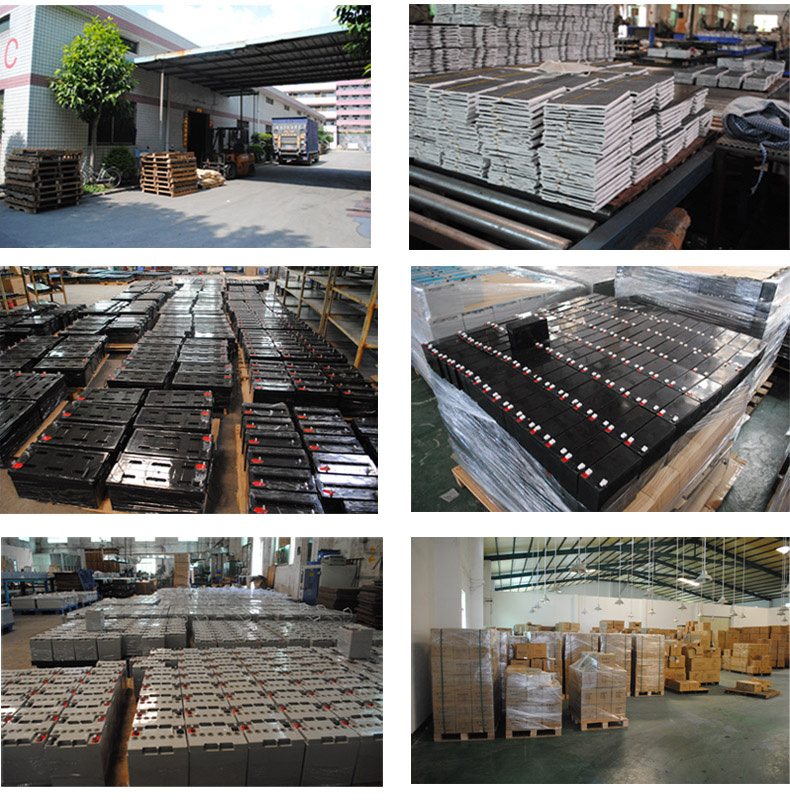

Factory Show:

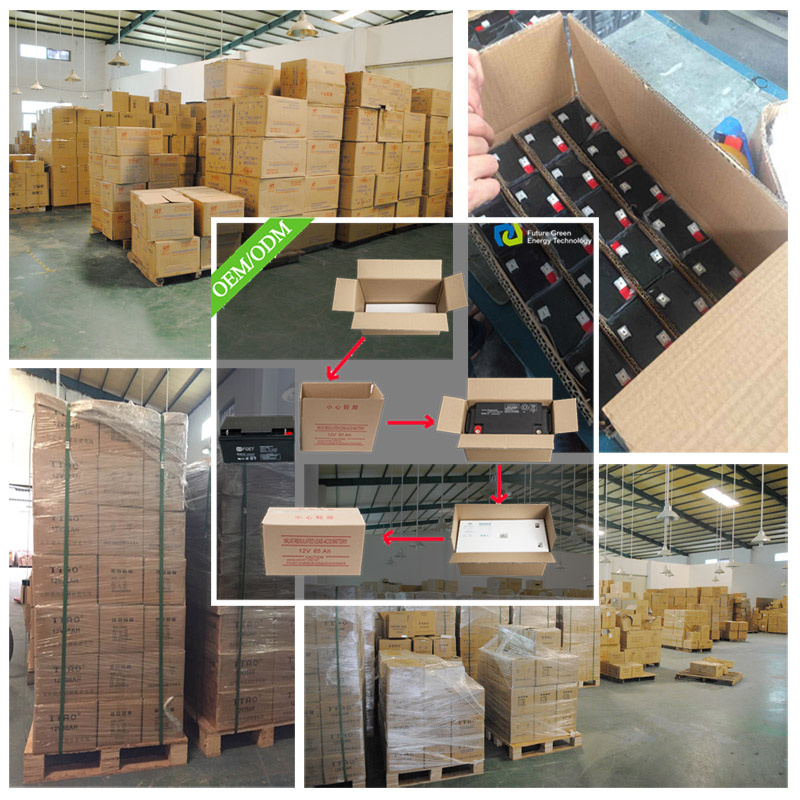

Packing Details:


Our Services:

 Samples and OEM, Warranty and After-Sale Service:
 Welcome Solar Power Inverter Sample Test
 OEM Welcomed
 Warranty:2 Year
 After-Sale Service: 24 Hour-Hot Line for Consultacncy and Technical Support

How To Ask for Support if products failure in warranty?
1. email us about PI number, serial number,Product S/N number, PCB board number most importantly, is the description of failure products on the condition that it is operated correctly, to the best, show us more detailed pictures or video.
2. we will submit your case to our after sales department.
3.Usually within 24 hours, we will email you the best solutions.

Payment Terms:

Payment Terms	T/T	EXW	30% T/T in advance, paid the balance before shipment
		FOB
		CFR(C&F)	30% T/T in advance, paid the balance against copy of B/L
		CIF
	L/C	L/C amount above 50,000 usd, we can accept L/C at sight
	West Union	Amount lower than 5000usd
	Paypal
Delivery time	10-25 working days after receiving payment for one container
