12V 200ah Solar Use Solar Battery
| Price: |
US $ 170.4-215.9/Piece |
| Trade Terms: |
FOB,CIF,EXW |
| Min Order: |
100/Piece |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: |
6-CNJ-200 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| High Gel Volume: |
1-1.2%/Unit |
| Long Cyclic Use Life: |
80%Dod >=1500 Times |
| Patent Wire Cable Connection Method: |
Easy for Installation and Better Anti-Corrosion |
| Net Size: |
522*240*219(L*W*H)mm |
| Total H: |
244mm |
| Weight: |
57.7kgs |
| Type: |
Lead-Acid Batteries |
| Usage: |
Lighting |
| Nominal Voltage: |
12V |
| Discharge Rate: |
High Discharge Rate |
| Shape: |
Square Battery |
| Rechargeable: |
Chargeable |
Product Description

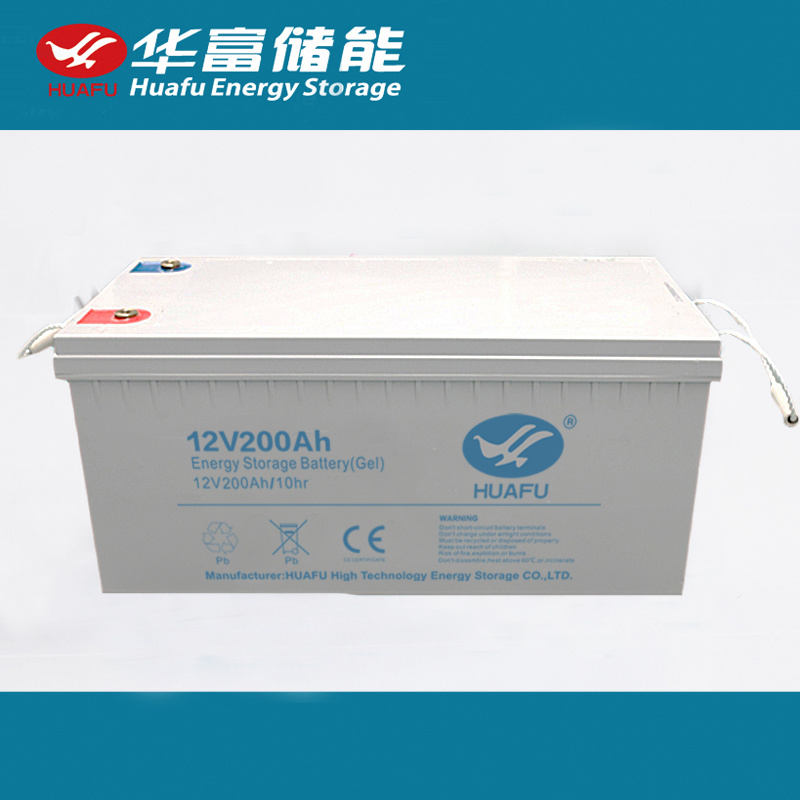

Product DescriptionHUAFU 12V200ah Battery: 1). Sealed Battery / Maintenance Free Battery / Rechargeable Battery / Gel Battery 2). Warranty:
3 Year. 3). OEM / ODM 4). CE UL RoHS approvial 5). Used for: Electronic Scale Power Toy Emergency Lighting.....
Battery Construction| Element | Electrolyte | Positive Plate | Negative Plate | Container |
| Material | Colloidal silicon | Lead dioxide | lead | ABS |
| |
| Element | Cover | Safety valve | Terminal/Wire | Separator |
| Material | ABS | Rubber | Copper | Fiberglass |
200Ah Battery Specification| Rated Voltage | 12V |
| Rated capacity (10 hour rate) | 200Ah |
| Dimension | Length | 522mm (20.57inches) |
| Width | 240mm (9.46inches) |
| Height | 219mm (8.63inches) |
| Total Height (with terminal) | 244mm (9.61inches) |
| Weight Approx | 57.7Kgs (126.94Ibs) |
| Terminal (two kind) | M8-20 Lead Terminal | M8-20 copper terminal |
Maintenance Free VRLA Battery Feature1). AGM (Absorbing Glass Mat) technology of which the electrolyte is absorbed.2). Maintenance-free operation - no addition of water to the electrolyte is required.3). Sealed Battery with Valve Regulated Construction .Can be mounted in any orientation.4). Wide range of operating temperatures with temperature compensated charging.5). Computer designed lead, calcium tin alloy grid for high power density.6). Extended service life due to low self-discharge levels.8). Available in flame retardant ABS material for the battery case 12V200AH Sealed Battery Packing Info.| In carton | packing in wooden Box |
| Pcs/Ctn | Ctn Size | Ctns/Box | Box Size |
| 1 | 535*253*283mm | 24 | 1120*1070*1020mm |
 |
Application field: Solar(wind) energy storage fields, complementary solar-wind grid connected energy storage ;
standby power supply for power station, nuclear power plant,
petrochemical industry and marine ;standby power supply for signal and communication system
of communication ,Internet ,railway, and airport as well as ocean signal and beacon communication
board, switching station, etc.

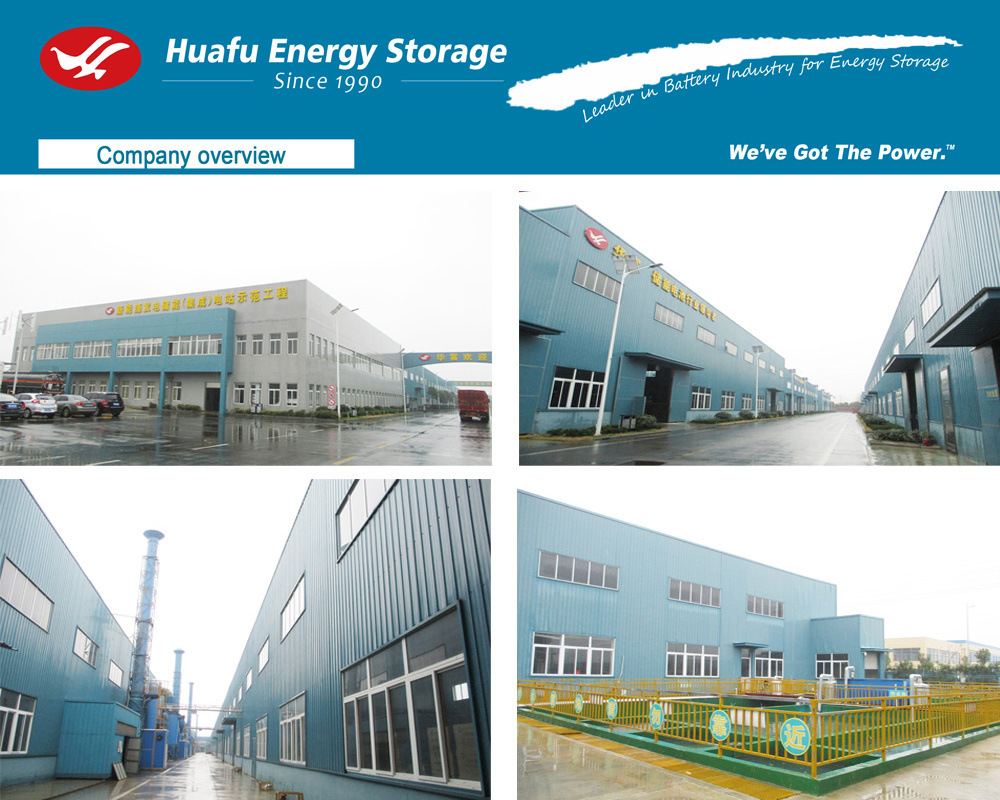

Huafu Company Info.HUAFU Group is a high-tech enterprise focus on off-grid solar power system solutions and a leading manufacturer
of energy storage battery since the establishment of 1990s. We have passed certifications: CE, RoHS, ISO9001, UL
etc.
In battery manufacturing industry, HUAFU Group ranks NO.1 in the sales of gel battery in China and has more than
20 years of experience in producing VRLA AGM/Gel solar battery ,VRLA AGM/Gel Backup battery series (UPS),EV
battery ,OPzS,OPzV, Lithium -Iron and lead carbon battery, etc. totally more than 400 models , and all of them have
been intensively sold to Southeast Asia, Central and South America, Africa, Middle East, Oceania, etc., and gain high
praise from all the distributors and end users.
In system solution field, HUAFU Group has developed and produced many series of products including integrated
System of street lighting (ISSL), All- in- one integrated solar home system, Off-grid Solar UPS Hybrid System etc.
totally more than 80 models.
Huafu High Technology Energy Storage Co., Ltd is a leader in battery industry for energy storage in China, manufacturer ranks NO. 1 in sales of GEL battery in Chinses market, with more than 20 years experience in producing and exporting environmental friendly Rechargeable Valve Regulated Lead Acid (VRLA) Battery, AGM Sealed Lead Acid (SLA) Batteries, Deep cycle Solar GEL Batteries, Front Terminal Battery, High Temperature long life GEL battery, Specialty batteries for plateaus, OPzV Battery, OPzS Batteries, Telecom Batteries, Lead Carbon, Lithium batteries.

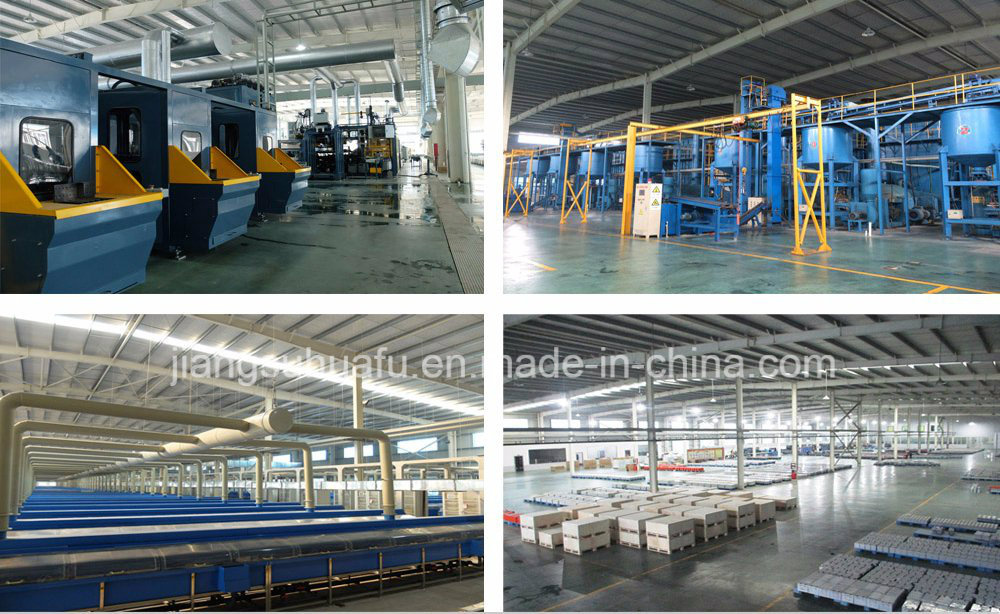

Established in 1990, located in Gaoyou Industrical Park of 180000 square meters in Jiangsu, China. Today, Huafu has nearly 200 full-time R&D personnel, nearly 100 part-time R&D personnel, has built a national post-doctoral workstaions, technology research institution for energy storage materials. With International advanced automatic equipment and excellent producing process, Huafu produces an annual capacity of approximately 4, 000, 000kVAh.
Lead battery & Lithium Battery are our major prodcuts: Classify our lead battery into Energy Storage Battery Series, Back-Up Battery, EV Battery. The Energy Storage Battery Series includes 2V and 12V AMG lead acid battery, AGM GEL Battery, Pure Gel Battery, Solar Deep Cycle battery, Lead-Carbon battery, Heat-tolerant battery, Tubular OPZV battery, Tubular OPZS battery. The Back-up battery series includes 2V and 12V VRLA Battery, Telecom Front terminal battery. Our EV battery includes 6V, 8V, 12V battery for electric vehicle, electric forklift, etc. Lithium battery includes LiFePO4, Ternary lithium power battery.
In the passed 20 years, HUAFU staffs has been insisted on gaining the believe of customers by our quality. We have successfully got the certificates of ISO9001 quality management system, ISO14001 environment management system, and passed the audit of OHSAS 18001. Also, we have received various product quality recognition, like UK's IEC60896.21/22. IEC61427, CE authentication of the European Union, UL recognition of the USA, Soncap certification for Nigeria and Golden Sunflower. RoHS, SGS, etc.
HUAFU ranks NO. 1 in sales of GEL battery in Chinese market. We has been cooperating with China Mobile Limited & Unicom Limited, ZTE Corporation, China Tower, Huawei Technologies, Emerson. Export from 10 years ago, near to Shanghai Port, Our long-term business ship has been built with Philips. Our products has also sold to USA, Brazil, Russia, Iran, Korea, Thailand, South Africa, Nigeria, Italy, Greece, Germany, Spain, etc.
Best Quality, Good Service, In time Support, Competitive Price. Choose Us!
