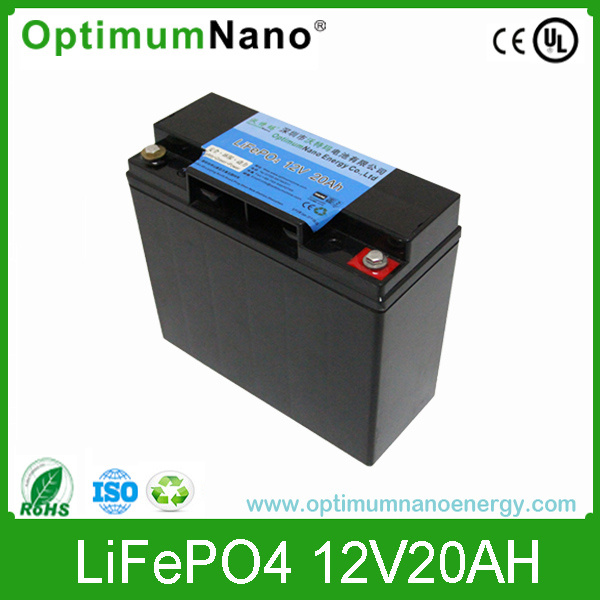

12V 20ah Lithium Battery Pack for Portable Device

Name: 12V 20ah Lithium Battery Pack for Portable Device
Brand: all-electronics-online.com
SKU: 737918905
Availability: InStock
Rating: 4.4 (131 reviews)

Price:	US $ 1-100/Piece
Trade Terms:	FOB,CIF,DAP
Min Order:	10/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	OPT-12-20
Markets:	North America,South America,Eastern Europe,Southeast Asia,Oceania,Eastern Asia,Western Europe
Modle:	Opt-12-20(12V 20ah)
Weight:	2.5kg
OEM/ODM:	Yes
Warranty:	2 Years
Cycle Life:	2000times
The Depth Of Discharge:	100% Depth Discharge
Applications:	Banckup Power/Solar System
Price:	Factory Price
Type:	Lithium-Ion Battery Pack
Connection Mode:	Series and Parallel
Usage:	UPS
Standard Voltage:	12V
Size:	Medium, 180.576165mm
Rated Capacity:	20ah
Electrolyte:	LiFePO4

Product Description

12V 20ah Lithium Battery Pack for Portable Device

1. The feature of LiFePO4 Battery:
1) 100% depth discharge;
2) Cycle times: 2000, 1C/1C charge/discharge, 80% capacity remaniing;
3) Light: 1/2 weight of the Lead acid battery;
4) Enviroment protection;
5) Safety: Stable, the safest battery so far, be used on the electric car, connectiong with life;

2. The applications:
1) Electric vehicles: Electric bike, electric golf trolley, electric scooter, skating board, two wheeler, etc;
2) Telephone switchboard, electric equipments, power instruments and meters;
3) Uninterrupted power source (UPS) for computer, Emergency Application, Medic devices;
4) Power transmission and transformer station, switch control, and accident light;
5) Fire fighting, safety device, and alarm monitoring;
6) Automatic office system;
7) Radio communication system;
8) Emergency lighting and car/ship starting system;
9) Portable electric appliances and mining system;
10) Traffic and navigation signal lamp.

NO.	Item	General Parameter			Remark
1	Model	OPT-12-20(12V 20AH)			LiFePO4 (lithium) battery
2	Rated Capacity	Max capacity		21.6Ah
2	Rated Capacity	Minimum capacity		20Ah
3	Rated voltage	12.8V
4	Standard charge/discharge current	≤20A
5	Max charge current	50A
6	Max discharge current	50A
7	Pulse discharge current	100A (10S)
8	Max.Charge voltage	14.6V
9	Cut-off voltage	10V
10	PCB	20A~50A (To be top configure , customerirzed)			For cells : Over charge current : 3.90±0.025V Over charge current : 2.0±0.05V
11	Size	18076.5165mm(ABS case)/Customerized
12	Case material	ABS case/Epoxy+PVC/PVC
13	Cycle times	2000 times ( 1C/1C , 100% depth discharge , 80% capacity remaining ) .

14	Certification	UL/CE/ROHS/TS16949/ISO9001/SGS Standard
15	Warranty	2 years
16	Weight(Approx, including case)	About 2.5 kg
17	Applications	Solar system/golf cart/lawn lamps/led light/medical device/start battery/black box of car , etc .
18	Impedance(Max, at 1000Hz.)	≤12mΩ
19	Operate temperature	Standard	0ºC~45ºC
		Discharge	-20ºC~60ºC
		Storage	0ºC~45ºC

The 12V LiFePO4 Battery :

12V 5/10/20/25/30/40/50/60/80/100/120/150/200/300/400Ah
Item No.	OPT-12-005	OPT-12-010	OPT-12-020	OPT-12-030	OPT-12-040	OPT-12-050	OPT-12-060
Standard Capacity	5Ah	10Ah	20Ah	30Ah	40Ah	50Ah	60Ah
Rated Voltage	12.8V
Discharge Cut-off Voltage	10.0V
Cell Model	IFR32650/32750
Casing Material	Steel Case for Single Cells
Self Discharge Rate	≤3% after one month
Life Cycles	80% capacity remaining after 2000 times at 1C rate 100%DoD
Max Charger Voltage	DC14.6V
Standard Charge Current	0.2C
Protection Function	Short-circuit &Over-current &Overcharge &Over-discharge &Undervoltage Protection
Product Size(mm)	1515193	1358585	180.576165	118175175	190165175	190165175	350168179
Approx N.W	0.9Kg	1.3Kg	2.5Kg	4.0Kg	5.5Kg	7.0Kg	8.0Kg
	OPT-12-080	OPT-12-100	OPT-12-150	OPT-12-200	OPT-12-200	OPT-12-300	OPT-12-400
Standard Capacity	80Ah	100Ah	150Ah	200Ah	200Ah	300Ah	400Ah
Product Size(mm)	260170215	330170220	502262242	502262242	360220262	520262242	560360200
Approx N.W	11Kg	16Kg	24Kg	35Kg	38Kg	45Kg	65Kg
