12V 20ahlifepo4/Lithium Battery for Snowmobile Start

Name: 12V 20ahlifepo4/Lithium Battery for Snowmobile Start
Brand: all-electronics-online.com
SKU: 691881195
Availability: InStock
Rating: 4.9 (134 reviews)

Price:	US $ 56-85/Piece
Trade Terms:	FOB,CIF,DAP
Min Order:	10/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	12V 20AH
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Dimension:	14076160mm
Cell:	32650
Green Energy:	Zero Emission
Battery Type:	Cylindrical Lithium Iron Phosphate Battery
Type:	Lithium-Ion Battery Pack
Connection Mode:	Series and Parallel
Usage:	Electric Tool/Lawn Mower/ Electric Drill
Electrolyte:	LiFePO4

Product Description

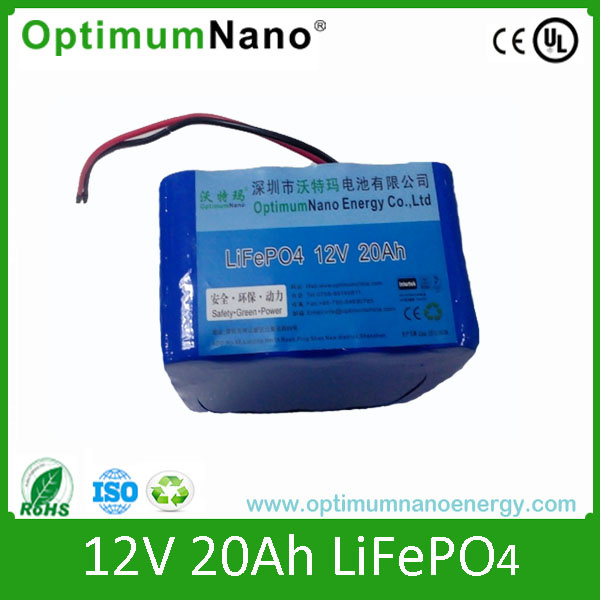

12V 20Ah LiFePO4 battery pack, for snowmobile start power, ATV (All Terrain Vehicle), solar light, UPS, start battery, riding lawn mower, electric boat, signal communication system, marine, e-car, solar system
Best replacement battery to Lead Acid battery and NiMH battery

1. Voltage: 12V
2. Capacity: 20Ah
3. Weight: Negotiable
4. Technologies: Balance function through protection board or BMS (battery management system); Relay equipped if necessary.
5. Excellent storage performance (based on 5-year test data)
6. Good thermal stability (- 40° C to 70° C)
7. Good battery consistence
8. High discharge current backed: 1C-10C discharge current available.
9. Lifetime: 0.2 C> 2000 (80% DoD), would be over 8 times life of Lead Acid and 3 times of NiMH
10. Fast charge possible
11. No memory effect
12. Environment friendly, no toxic, no rare metals, approved UL, CE, SGS /RoHS Certification; TS16949 certificated factory.
13. Flexible Form Factor - Small in size and light in weight 1/3 weight of Lead Acid and 65% weight of NiMH.
14. Battery charger can be provided!

In order to satisfy your needs, would you pls confirm those questions as below:
1. Your application
2. The rated power and the max load
3. The continous discharge current and the max discharge current
4. Your ideas

12V 5/10/20/25/30/40/50/60/80/100/120/150/200/300/400Ah
Item No.	OPT-12-005	OPT-12-010	OPT-12-020	OPT-12-030	OPT-12-040	OPT-12-050	OPT-12-060
Standard Capacity	5Ah	10Ah	20Ah	30Ah	40Ah	50Ah	60Ah
Rated Voltage	12.8V
Discharge Cut-off Voltage	10.0V
Cell Model	IFR32650/32750
Casing Material	Steel Case for Single Cells
Self Discharge Rate	≤3% after one month
Life Cycles	80% capacity remaining after 2000 times at 1C rate 100%DoD
Max Charger Voltage	DC14.6V
Standard Charge Current	0.2C
Protection Function	Short-circuit &Over-current &Overcharge &Over-discharge &Undervoltage Protection
Product Size(mm)	1515193	1358585	18276167	118175175	190165175	190165175	350168179
Approx N.W	0.9Kg	1.3Kg	2.8Kg	4.0Kg	5.5Kg	7.0Kg	8.0Kg
	OPT-12-080	OPT-12-100	OPT-12-150	OPT-12-200	OPT-12-200	OPT-12-300	OPT-12-400
Standard Capacity	80Ah	100Ah	150Ah	200Ah	200Ah	300Ah	400Ah
Product Size(mm)	260170215	330170220	502262242	502262242	360220262	520262242	560360200
Approx N.W	11Kg	16Kg	24Kg	35Kg	38Kg	45Kg	65Kg

Company Name: OptimumNano Energy Co., Ltd

Name of Exhibition: The China Sourcing Fair

Address: Hong Kong Asia Exhibition Hall

Booth No: At at 9B05

Dates: Oct 11-14, 2015(4 Days)

In 2002, OptimumNano Energy Co., Ltd started the battery business in Shenzhen.

In 2006, OptimumNano began to focus on the production, Engineering, researching and manufacturing of LiFePO4-Lithium Iron Phosphate Battery, we believe the LiFePO4 shall be the best Lithium-ion Power Solution in the future

In 2008, OptimumNano finished the first Pure Electric Bus with LiFePO4 Battery, demonstrating and running for Shanghai EXPO.

In 2009, OptimumNano was awarded the honor of "National High-tech Enterprise".

In 2011, OptimumNano was the main vehicle power battery supplier of the 26th World Universiade Games.

In 2012, OptimumNano was selected as one the supporting company of "2012 New Energy Automotive Industry Technology Innovation Project", which was launched by the Ministry of Finance, the Ministry of Industry and the Ministry of Science and Technology.

In 2013, OptimumNano moved to new and bigger factory to meet our 500, 000 PCS daily production requirement.

In 2014, Shenzhen mayor Mr. Wang Rong and others come to our company to make researches and guidances and gave high praise for our company achievement in the new energy industry

OptimumNano set up the workstation for Academician Material Application. With around 500 R&D staffs, now we have more than 200 patents at home and abroad.

After over 13 years' development, OptimumNano has offices in local 31 cities, distribute our LiFePO4 batteries to over 40 countries in the world.
