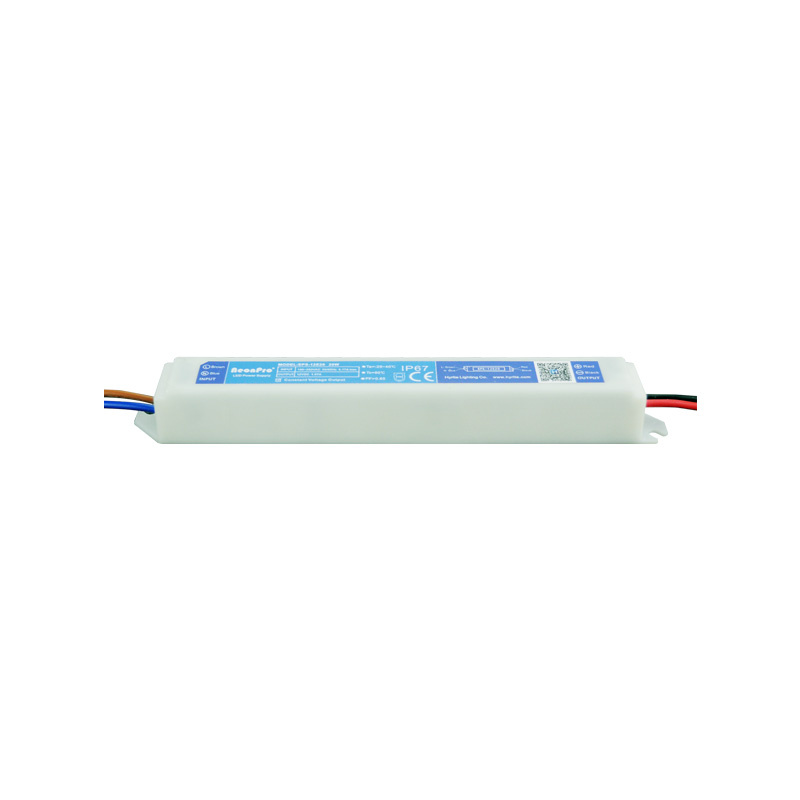

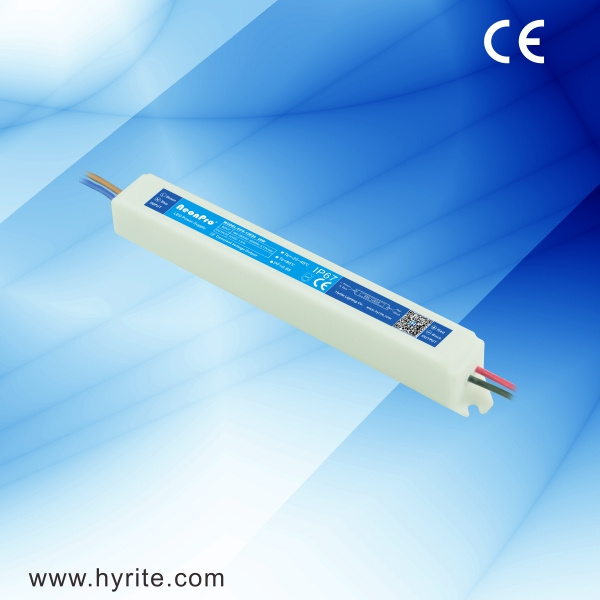

12V 20W IP67 Plastic Case Waterproof Slim LED Power Supply

Name: 12V 20W IP67 Plastic Case Waterproof Slim LED Power Supply
Brand: all-electronics-online.com
SKU: 772688905
Availability: InStock
Rating: 4.7 (41 reviews)

Price:	US $ 3.1-3.13/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	EPS-12E20
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Output Power:	20W
Input Voltage:	170-265V
Output Voltage:	12V
Output Current:	1.66A
Efficiency:	80 %
IP Rating:	IP67
Size:	1642019mm
Packing Information:	Carton Packing
PF:	0.65
Material:	Plastic
Usage:	Construction
Output Type:	Single
Driving Method:	LED Regulator Voltage
Circuit Structure:	PWM Controlled
Power Supply Voltage:	AC170-265V
Brand:	Neonpro

Product Description

12V 20W IP67 Plastic case Waterproof Slim LED Power Supply

Features of IP67 Plastic Waterproof LED Power Supply:
1. Slimline design.
2. Fully sealed with plastic housing, waterproof IP67.
3. High efficiency 90% (20~150W), more electricity saving than regular power supply.
4. With short circuit and over current protection, when the load is abnormally,
the product automatically cut off the output current to prevent the accident to expand.
5. Constant power output when overload.
6. No ground connection.

Application of IP67 Plastic LED Power Supply:
LED Signage
LED advertising lighting
LED housing lighting
LED Architectural Lighting
LED Industrial Lighting
LED Sports Lighting
LED Cobra Head Lighting
Ultra-thin body, special design for application with narrow space, such as cove light, slim light box, channel letter...

Specification of IP67 Plastic LED Power Supply:

Model no.	EPS-12E20
Model series	EPS Plastic Case IP67 waterproof
Input voltage	170-265 VAC 50/60 Hz
Power	20W
Output type	Constant voltage
Power factor	0.65
Output voltage	12V
Output current	1.66A
Operating temperature	-25~50ºC
Installation	Outdoor
Cooling	Free air convection
Dimensions(LWH)	1642019mm
IP Rate	IP67

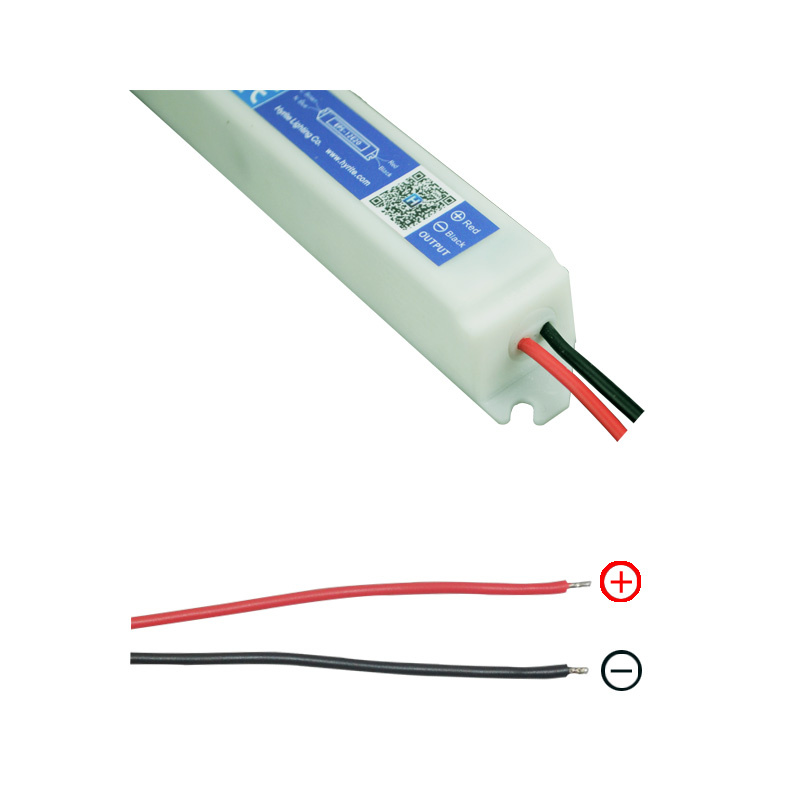

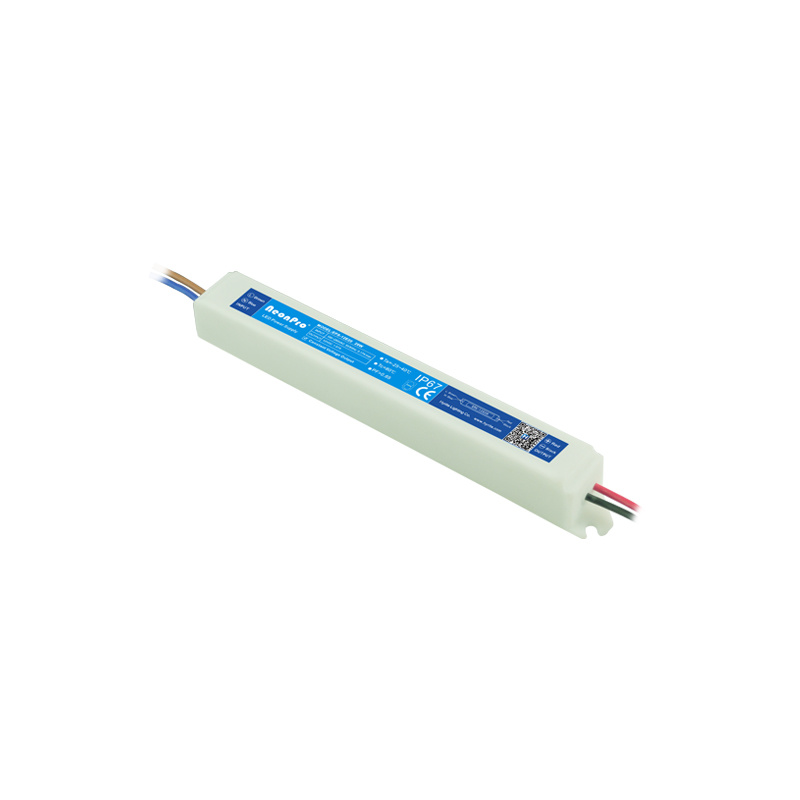

More pictures of IP67 Plastic LED Power Supply:

FAQ :
1. Shipment: Ocean or air transportation, international express
2. Normal lead time: 1 day for the goods in stock & 7-15 working days for out of stock product
3. Price term: FOB, C&F, EXW; 30% before production, 70% before shipment.
4. Supply ability: 50000 units/month
5. MOQ: 1 carton (Samples are available)
6. Discounts: We offer discount for big quantity.
7. OEM and ODM service are available

Contacts:

Wing Xu --Oversea Sales Rep.
Hyrite Lighting Co. (NeonPro) Since 1993
Tel: +86(757)88382138 (Ext.333); Fax: +86(757)81200369
H.P.: +86-18319770308/ +86-18520900296
Website: http://www.hyrite.com/, http://hyrite-leddriver.en.made-in-china.com/

Pictures about Exhibition Show:

Hyrite Lighting Company, also known as NeonPro Co, has 20 years experience in the design, development and manufacturing of electronic power supplies, one of an extremely successful range of signage products including, over the last seven years, LED modules and driver units.

The senior management having recognized the ongoing success and further potential of our LED products and utilizing their experience and proven track record in innovative product design and manufacture has formed Hyrite Lighting Company solely dedicated to manufacturing products specifically for the LED signage and lighitng markets.

Our products are surrently being used in many countries under different technical standards in a variety of climate conditions.

Pls kindly check our main products below,

*IP67 Slim high efficiency constant voltage LED power supply (New)

*Traditional IP67 constant voltage waterproof LED power supply

*IP45 Rainproof constant voltage LED power supply.

*IP20 indoor type LED power supply.

*Constant Current LED Driver for LED lighting.

*Dimmable LED driver.

*LED module for Channel letter/light box.

Certificate: CE RoHS SASO SAA TUV UL approved

In addition we offer comprehensive OEM and ODM services to our partners.

We sincerely welcome your visiting and valued advices to us. Any questions from you, our experienced salesperson will feedback to you within 12 hours.
