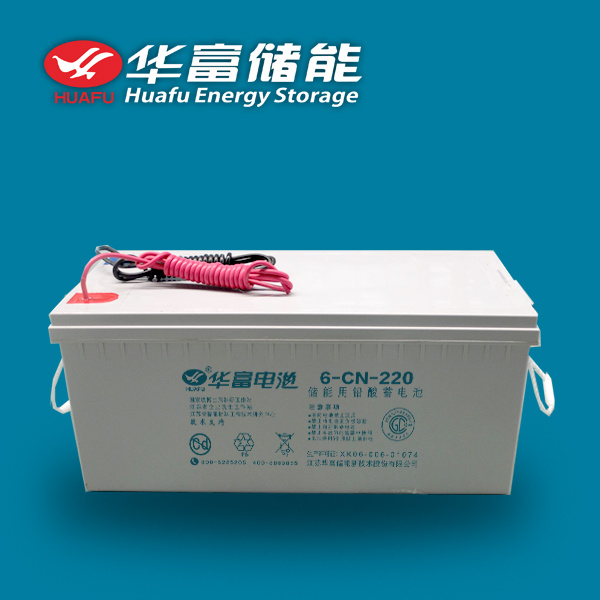

12V 220ah Lead-Acid Solar Battery
| Price: |
US $ 2/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
50/Piece |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: |
6-CN-220 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
522*240*219 mm |
| Weight: |
58.3kgs |
| Terminal: |
Cable |
| Maintaince Free: |
Yes |
| Long Design Life: |
8 Years |
| Type: |
Lead-Acid Batteries |
| Usage: |
Electric Power |
| Nominal Voltage: |
12V |
| Discharge Rate: |
High Discharge Rate |
| Shape: |
Cylindrical Battery |
| Rechargeable: |
Chargeable |
Product Description
Gel Series Battery General Features
Gel battery, Nonspillable
Sealed and Maintenance-free Operation
High Quality and High Reliability
Exceptional Deep Discharge Recovery
Low Self-discharge
Long Service Life
Solid Copper Terminals
Tank-formed Plates
Computer-aided Design and Manufacturing
UL, CE, VdS Approved
Typical Applications
Water pumping
Cathodic protection
Communications
Solar & Windsystem
Electric powered vehicles
Golf cars
Commercial deep cycle applications
Power plant
UPS systems
Specifications
Nominal Voltage | 12 V |
Capacity
(25ºC) | 10HR(10.8V) | 220 Ah |
| 5HR(10.5V) | 170Ah |
| 1HR(9.60V) | 120Ah |
| Dimension | Length | 522±2mm |
| Width | 240±2mm |
| Height | 219±2mm |
| Total Height | T5: 244±2mm |
| T9: 220±2mm (8.66inch) |
| Approx. Weight | 57.4 Kg |
| Terminal type | cable |
Internal resistance
(Fully charged, 25ºC) | Approx. 5mΩ |
| Capacity affected by temperature (10HR) | 40ºC | 102% |
| 25ºC | 100% |
| 0ºC | 85% |
| -15ºC | 65% |
Self-discharge
(25ºC) | 3 month | Remaining Capacity: 91% |
| 6 month | Remaining Capacity: 82% |
| 12 month | Remaining Capacity: 65% |
| Nominal operating temperature | 25ºC±3ºC(77ºF±5ºF) |
| Operating temperature range | Discharge | -15ºC~50ºC(5ºF~122ºF) |
| Charge | -10ºC~50ºC(14ºF~122ºF) |
| Storage | -20ºC~50ºC(-4ºF~122ºF) |
| Float charging voltage(25ºC) | 13.50 to 13.80V
Temperature compensation:
-18mV/ºC |
| Cyclic charging voltage(25ºC) | 14.10 to 14.40V
Temperature compensation:
-30mV/ºC |
| Maximum charging current | 20.0A |
| Terminal material | Copper |
| Maximum discharge current | 800A(5 sec. ) |
| Designed floating life(20ºC) | 8 years |
Gelled electrolyte technology;
Recognized by UL & CE;
ABS container.
Huafu High Technology Energy Storage Co., Ltd is a leader in battery industry for energy storage in China, manufacturer ranks NO. 1 in sales of GEL battery in Chinses market, with more than 20 years experience in producing and exporting environmental friendly Rechargeable Valve Regulated Lead Acid (VRLA) Battery, AGM Sealed Lead Acid (SLA) Batteries, Deep cycle Solar GEL Batteries, Front Terminal Battery, High Temperature long life GEL battery, Specialty batteries for plateaus, OPzV Battery, OPzS Batteries, Telecom Batteries, Lead Carbon, Lithium batteries.
Established in 1990, located in Gaoyou Industrical Park of 180000 square meters in Jiangsu, China. Today, Huafu has nearly 200 full-time R&D personnel, nearly 100 part-time R&D personnel, has built a national post-doctoral workstaions, technology research institution for energy storage materials. With International advanced automatic equipment and excellent producing process, Huafu produces an annual capacity of approximately 4, 000, 000kVAh.
Lead battery & Lithium Battery are our major prodcuts: Classify our lead battery into Energy Storage Battery Series, Back-Up Battery, EV Battery. The Energy Storage Battery Series includes 2V and 12V AMG lead acid battery, AGM GEL Battery, Pure Gel Battery, Solar Deep Cycle battery, Lead-Carbon battery, Heat-tolerant battery, Tubular OPZV battery, Tubular OPZS battery. The Back-up battery series includes 2V and 12V VRLA Battery, Telecom Front terminal battery. Our EV battery includes 6V, 8V, 12V battery for electric vehicle, electric forklift, etc. Lithium battery includes LiFePO4, Ternary lithium power battery.
In the passed 20 years, HUAFU staffs has been insisted on gaining the believe of customers by our quality. We have successfully got the certificates of ISO9001 quality management system, ISO14001 environment management system, and passed the audit of OHSAS 18001. Also, we have received various product quality recognition, like UK's IEC60896.21/22. IEC61427, CE authentication of the European Union, UL recognition of the USA, Soncap certification for Nigeria and Golden Sunflower. RoHS, SGS, etc.
HUAFU ranks NO. 1 in sales of GEL battery in Chinese market. We has been cooperating with China Mobile Limited & Unicom Limited, ZTE Corporation, China Tower, Huawei Technologies, Emerson. Export from 10 years ago, near to Shanghai Port, Our long-term business ship has been built with Philips. Our products has also sold to USA, Brazil, Russia, Iran, Korea, Thailand, South Africa, Nigeria, Italy, Greece, Germany, Spain, etc.
Best Quality, Good Service, In time Support, Competitive Price. Choose Us!
