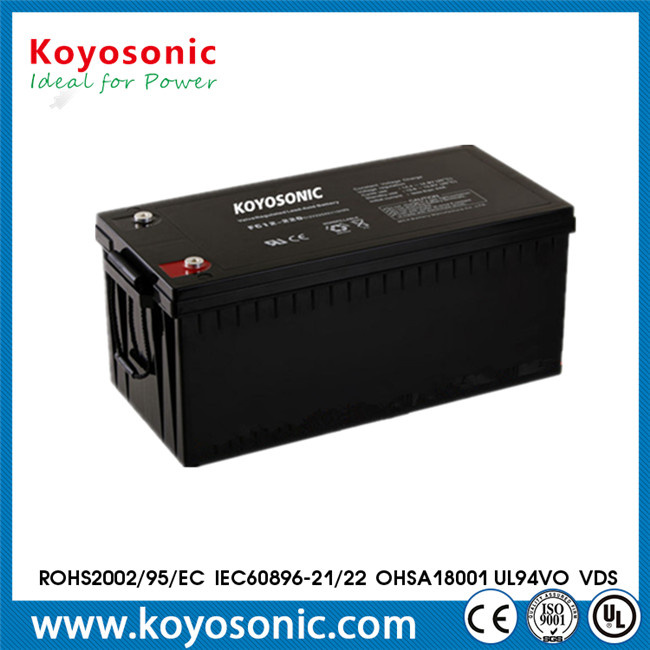

| Prod Model: |
NP220-12 |
| Capacity: |
220ah |
| Weight: |
59kg |
| Type: |
Lead-Acid Batteries |
| Usage: |
Solar System |
| Nominal Voltage: |
12V |
| Discharge Rate: |
Low Discharge Rate |
| Shape: |
Square Battery |
| Rechargeable: |
Chargeable |
Product Description
Value Regulated Lead Acid Batteries
With the latest advanced design of Oxygen Combination, Koyosonic has produced a new generation of Value-Regulated Lead Acid Batteries based on a long history of more than 20 years in reseach and development.
Main Applications
♦Potable VTR/TV, tape recorders, radios, etc.
♦Power tools, lawn mowers and vacum cleaners.
♦Cameras and photographic equipment.
♦Computers etc.
♦Portable measuring equipment.
♦Portable telephone sets.
♦Various power toys and recreational equipment
♦Lighting equipments.
♦Uninterruptiable Power Supply.
♦Communications and electric equipment.
♦Emergency lighting equipment.
♦Fire alarms and security systems.
♦Various telemeter equipment.
♦Telecommunications.
♦Office computers, processors and other office automation equipment.
♦Robots, control equipment and other factory automation equipment.
♦ Emergency power supplies in power generation plants and substations.
Features:
♦Maintenance-Free Operation
Aborbent Glass Mat (AGM)technology ensures efficient gas recombination up to 99% and freedom from electrolyte maintenance.During the expected float service life of MCA batteries,no need to check the specifi gravity of the electrolyte or add water.
♦Good Discharging Ability
Tight assembly technology ensures an excellent high-rate discharge performance.
♦ Long Service Life
A unique corrosion-resistant grid alloy ensure MCA batteries have long service life.
♦Enviromental & Non-polluting
Gas Recombination technology ensures the battery high seal reacting rate,which can prevent the acid fog from separating out.
Technical details

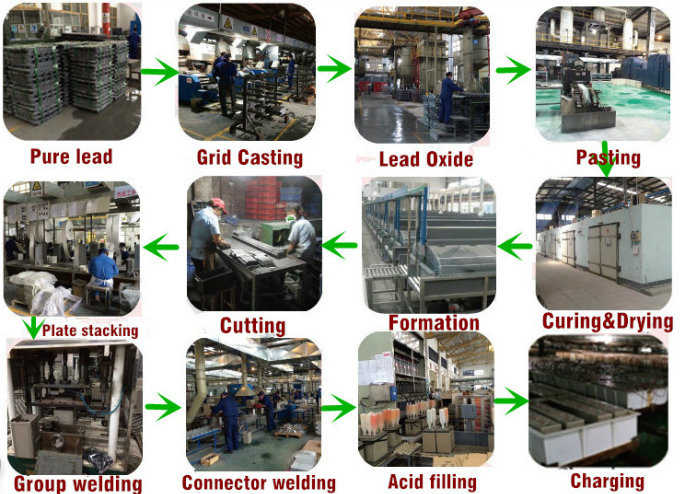

Prodution Process:
Catalogue for NP Series SLA AGM Battery:
| Medium series: Capacity from 24Ah to 260Ah |
| Int'l Model | Factory Model | Volt (V) | Capacity (Ah @ 10h) | Dimension (mm) | Approx. Weight | Terminal |
| L | W | H | T.H. | Type | Position |
| NP24-12 | FC12-24AT/Q | 12 | 24 | 165 | 126 | 174 | 179 | 7.7 | T3 / L6 | B |
| NP26-12 | FC12-26AT/P | 12 | 26 | 166 | 175 | 126 | 126 | 8.4 | T2 / L2 | B |
| NP33-12 | FC12-33AT/Q/P | 12 | 33 | 196 | 130 | 155 | 167 | 10 | T3 / L4 / L7 | A |
| NP38-12 | FC12-38AT/Q | 12 | 38 | 197 | 166 | 174 | 179 | 12.3 | T3 / L6 | B |
| NP45-12 | FC12-42AT/Q/P | 12 | 45 | 198 | 166 | 174 | 174 | 12.9 | T3 / L7 /L3 | B |
| NP50-12 | FC12-50BT | 12 | 50 | 229 | 138 | 208 | 212 | 15.5 | T3 | A |
| NP60-12 | FC12-55AT/P | 12 | 60 | 229 | 138 | 208 | 226 | 17.4 | T3 / L3 | A |
| NP65-12 | FC12-65AT/Q/P | 12 | 65 | 350 | 167 | 178 | 178 | 20.2 | T3 / L9 / L4 | B |
| NP70-12 | FC12-70BT/Q | 12 | 70 | 260 | 169 | 211 | 215 | 21.7 | T3 / L11 | A |
| NP80-12 | FC12-80BT/Q/P | 12 | 80 | 260 | 169 | 211 | 215 | 23.3 | T3 / L11 / L4 | A |
| NP90-12 | FC12-90AT/Q | 12 | 90 | 307 | 169 | 211 | 215 | 26.7 | T3 / L13 | A |
| NP90-12A | FC12-80AT/Q | 12 | 90 | 331 | 174 | 214 | 219 | 24.8 | T4 / L12 | B |
| NP100-12 | FC12-90BT/Q | 12 | 100 | 331 | 174 | 214 | 219 | 28 | T4 / L12 | B |
| NP100-12A | FC12-95AT/AQ | 12 | 100 | 407 | 174 | 210 | 233 | 29.7 | T5 / L14 | A |
| NP120-12 | FC12-100AT/Q | 12 | 120 | 331 | 174 | 214 | 240 | 29.5 | T4 / L12 | B |
| NP120-12A | FC12-100DT/Q | 12 | 120 | 407 | 174 | 210 | 233 | 30 | T5 / L14 | A |
| NP150-12 | FC12-150AT/Q | 12 | 150 | 484 | 171 | 241 | 241 | 42 | T4 / L16 | A |
| NP160-12 | FC12-160AT/Q | 12 | 160 | 532 | 206 | 216 | 240 | 48.5 | T4 /L17 | C |
| NP180-12 | FC12-180BT | 12 | 180 | 532 | 206 | 216 | 221 | 52.5 | T4 / L17 | C |
| NP180-12A | FC12-180AQ | 12 | 180 | 500 | 208 | 212 | 239 | 55.8 | L17 | C |
| NP200-12 | FC12-180CT/Q | 12 | 200 | 522 | 240 | 219 | 244 | 58 | T5 / L17 | C |
| NP220-12 | FC12-200AT/Q | 12 | 220 | 522 | 240 | 219 | 224 | 59 | T5 / L17 | C |
| NP230-12 | FC12-220AT/Q | 12 | 230 | 522 | 240 | 219 | 244 | 61 | T5 / L17 | C |
| MP250-12 | FC12-250AT/Q | 12 | 250 | 520 | 268 | 220 | 225 | 71 | T5 / L17 | C |
| NP130-6 | FC6-130AT | 6 | 130 | 260 | 180 | 247 | 251 | 20.5 | T5 (M8X16) | F |
| NP200-6 | FC6-180AT | 6 | 200 | 260 | 180 | 247 | 251 | 28 | T5 (M8X16) | F |
| NP200-6A | FC6-180BT | 6 | 200 | 306 | 168 | 220 | 225 | 27 | T5 (M8X16) | F |
| NP225-6 | FC6-200AT | 6 | 225 | 260 | 180 | 247 | 251 | 30 | T5 (M8X16) | F |
| NP225-6A | FC6-200BT | 6 | 225 | 323 | 178 | 224 | 229 | 30 | T5 (M8X16) | E |

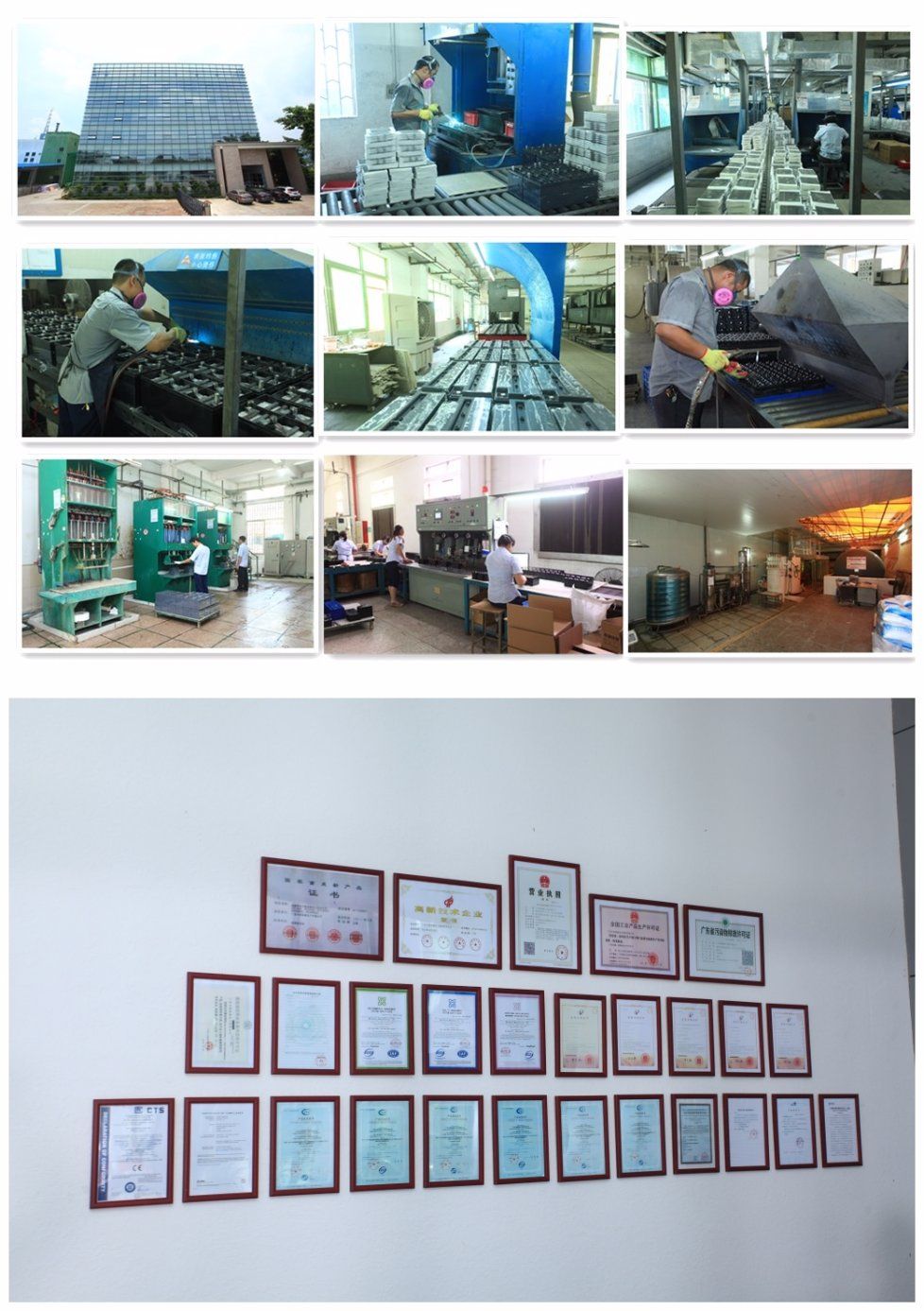

Company Introdution & Certifications
○Koyosonic established in 2003, has been specialized in producing Lead-acid batteries, Li-ion batteries and Solar power system. As one of professional manufacturers in lead acid batteries, we have been devoted to research and development, manufacture and market to lead the users to have right batteries for their power system.Welcome you visit 'www.koyosonic.com' for more information.

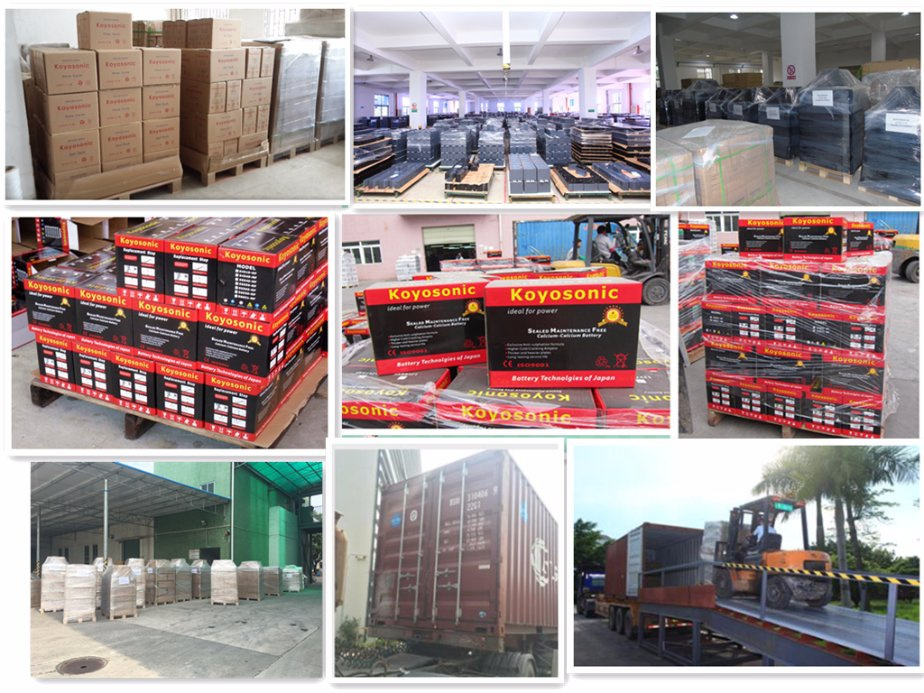

Packing
FAQ
Q1. What's the delivery time?
A: Usually our delivery time is 20-25 days.
Q2. What is your terms of payment?
A: Usually our payment terms is T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.
Q3. What's the MOQ?
A: The Minimum order quantity is 50 pieces for each model.
Q4. What's the life time of your battery?
A: Generally, 3 years for vehicle and marine batteries.
Q5. If there are defective batteries in the warranty, what's your policy to replace them?
A: Please take the photos of the broken batteries for us and tell us what happen, if everything is confirmed, the new ones will be sent to you as compensation in the next order.
Q6. Do you offer OEM service?
A: Sure, we can offer the OEM service, and the MOQ is 300 pieces for OEM models.Besides, we can make the brand and packing design.
Q7. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
Q8: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them,
no matter where they come from
Q9:What material is being used in the manufacturing of your batteries?
A:The plates are made of high purity lead (99.994%-99.996%), make the longer service life.
