| Prod Model: |
IR3012 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Model Number: |
1012, 2024, 2012.3012.3024, 3048.4024.5024, 6048 |
| Weight: |
19kgs-49kgs |
| Input Voltage: |
100V/110V/220V/50Hz |
| Output Frequency: |
50/60Hz |
| Material: |
Copper Transformer |
| Wave Form: |
Pure Sine Wave |
| Out Put Connection: |
Terminal Block + 1 Socket |
| Application: |
All Kinds of Inductive Load, Solar Energy |
| Warranty: |
12 Months |
| Type: |
DC/AC Inverters |
| Phase: |
Single |
| Power Source: |
Electric Power |
| Output Power: |
501 - 1000W |
Product Description

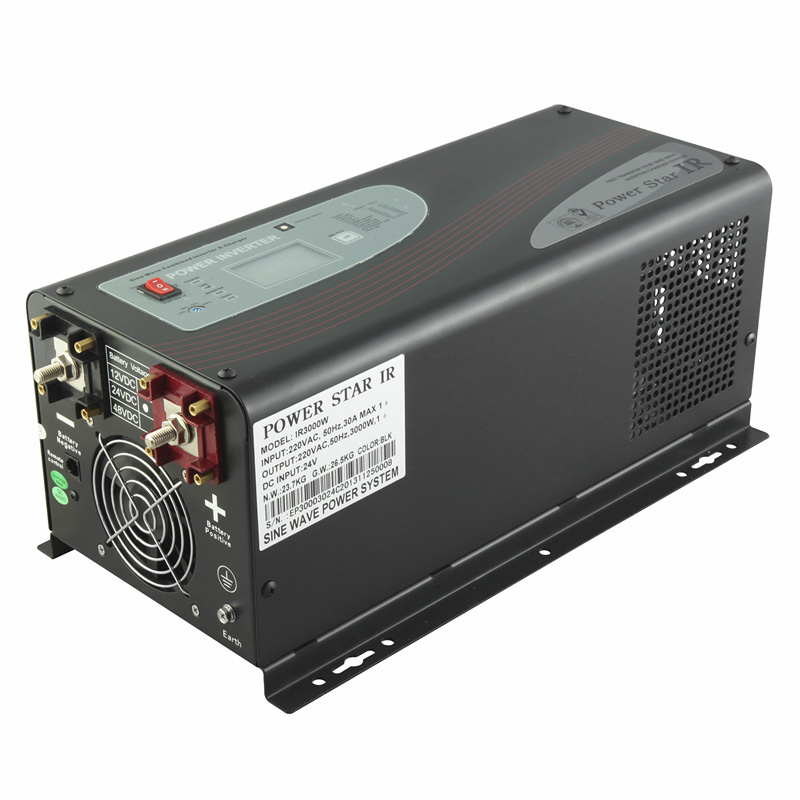

12v 220v 3000w inverters
Specifications
1. Copper transformer
2. Solar inverter
3. With Mppt charge controller
4. Pure sine wave
5. Sample available
PV Inverter with MPPT charge controller 1000w
1. Features
1. Pure sine-wave out put, can be used with different domestic appliance TV, Refrigerator, Fan, Air conditioner, Induction cooker, micro-wave oven etc.
2. Generator compatibly and external battery connection achievable.
3. Generator compatible
|
Hybrid Inverter |
|
MPPT solar controller function |
|
Rated Voltage |
12/24V DC |
|
Rated Charge current |
40A |
|
Load current |
15A |
|
Input voltage range |
15-55V DC |
|
Max. PV open circuit array voltage |
55V DC |
|
Typical idle consumption |
At idle< 10mA |
|
Overload protection(DC load) |
2.0 * Inom> 5s 1.5 * Inom> 20s 1.25 * Inom temperature controlled |
|
Bulk charge |
14.6V(default) |
29.2V(default) |
|
Floating charge |
13.4V(default) |
26.8V(default) |
|
Equalization charge |
14.0V(default) |
28.0V(default ) |
|
Over charge disconnection |
14.8V |
29.6V |
|
Over charge recovery |
13.6V |
27.2V |
|
Over discharge disconnection |
10.8V(default) |
21.6V(default ) |
|
Over discharge reconnection |
12.3V |
24.6V |
|
Temperature compensation |
13.2mV/C |
26.4mV/C |
|
Lead acid battery settings |
Adjustable |
|
NiCad battery settings |
Adjustable |
|
Load control mode |
1. Low Voltage Reconnect(LVR): Adjustable 2. Low Voltage Disconnect(LVD): Automatic disconnection 3. Reconnection: Includes warning flash before disconnect and reconnection |
|
Low voltage reconnect |
12.0-14.0Vdc |
24.0-28.0Vdc |
|
low voltage disconnet |
10.5-12.5Vdc |
21.0-25.0Vdc |
|
Ambient temperature |
0-40 ° C (full load) 40-60 ° C (de-rating) |
|
Altitude |
Operating5000m, Non-Operating 16000m |
|
Protection class |
IP21 |
|
Battery temperature sensor |
BTS-optional remote battery temperature sensor for increased charging precision |
|
Terminal size(fine/single wire) |
#8 AWG |
|
PV inverter battery priority |
|
MODEL |
1000w |
1500w |
2000w |
3000w |
|
Input Voltage Waveform |
Sinusoidal (utility or generator) |
|
Nominal Input Voltage |
230Vac |
|
Low Line Disconnect |
155Vac± 4% |
|
High Line Disconnect |
265Vac± 4% |
|
Max AC Input Voltage |
270Vrms |
|
Nominal Input Frequency |
50Hz/ 60Hz (Auto detection) |
|
Over-Load Protection |
Circuit breaker |
|
Output Short Circuit Protection |
Circuit breaker |
|
Efficiency (Line Mode) |
> 95% |
|
Transfer Switch Rating |
30A |
|
Transfer Time(Ac to Dc) |
20ms (typical) |
|
Output Voltage Waveform |
Sine wave |
|
Rated Output Power (W) |
1000W |
1500W |
1500W |
2000W |
2000W |
3000W |
3000W |
|
Power Factor |
1 |
|
Nominal Output Voltage (V) |
230Vac |
|
Output Voltage Regulation |
± 10% rms |
|
Nominal Efficiency |
> 80% |
|
Nominal DC Input Voltage |
12V |
12V |
24V |
12V |
24V |
12V |
24V |
|
Nominal Charge Current |
35A |
45A |
35A |
65A |
35A |
75A |
45A |
|
Charge Current Regulation |
± 5A |
|
Battery initial voltage |
0 – 15.7 Vdc /31.4Vdc(can operate with 0V battery) |
|
Communication: |
RJ11 (Used for factory testing. No customer interface available) |
|
Safety Certification |
CE(EN60950) |
|
EMI Classification |
EN50091-2, CLASS A |
|
Operating Temperature Range |
0° C to 40° C |
|
Storage temperature |
-15º C ~ 60º C |
|
Operation humidity |
5% to 95% |
|
Audible Noise |
60dB max |
|
Cooling |
Forced air, variable speed fan |
