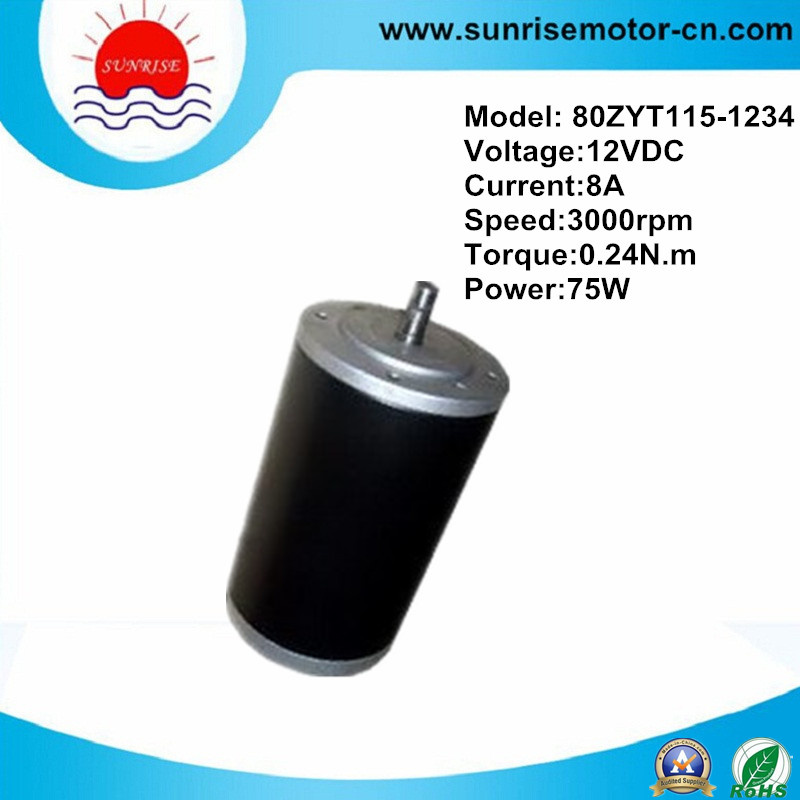

12V 0.24n. M 75W DC Motor

12V 0.24n. M 75W DC Motor
Price: US $ 14.44-20/Piece
Trade Terms: FOB,CIF,CIP
Min Order: 1/Piece
Pay Type: L/C,T/T,Western Union,Paypal
Contact Supplier
Showroom Product Company Profile
Prod Model: 80ZYT115-1234
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Voltage: 12VDC
Rated Speed: 3000rpm
No-Load Speed: 3400rpm
Rated Torque: 0.24n.M
Rated Current: 8A
No-Load Current: 0.9A
Power: 75W
Application: Power Tools
Operating Speed: Adjust Speed
Excitation Mode: Excited
Structure And Working Principle: Brush
Type: PMDC Motor
Brand: Sunrise Motor

Product Description

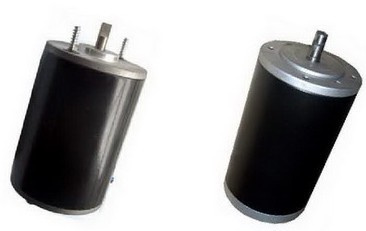

PMDC MOTOR
MODEL: 80ZYT115-1234
Voltage: 12V
Rated Torque: 0.24N. m
Rated Current:  8A
Rated Speed: 3000rpm
No-load speed: 3400rpm
Power: 75W

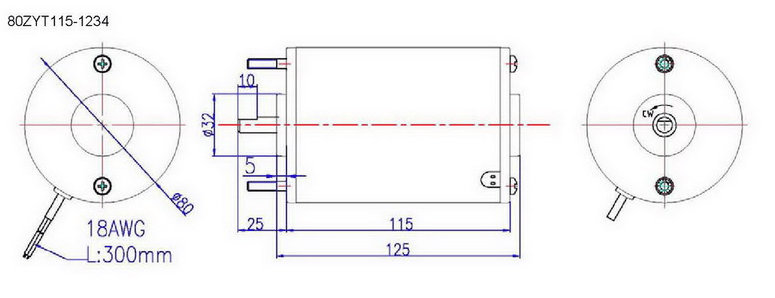

Length: 115mm

Special motors can be customized per your requirements.
Encoder and gear box can be fixed.

ModelVoltage
(V DC)		No LoadRated LoadLength
(mm)
Current
(A)		Speed
(r/min)		Torque
(N. m)		Current
(A)		Speed
(r/min)
80ZYT115-1234120.934000.2483000115
80ZYT134-3614360.414000.93.21100133.5

Changzhou Sunrise Electric Motor Company was founded in 2004 and is located about 200 km west of Shanghai. SUNRISE ELECTRIC MOTOR manufacture and export PMDC motors, BLDC motors, Hybrid Stepping motors with high torque output (0.2N. M - 28N. M), and customized motors which are per customers' drawings, specification and technical requirements. Also, we source and customize products associated with electric motor applications such as, motor controllers and drivers, motor sensing boards (PCB), etc.

The motors introduced can be used for commercial and residential applications such as industrial automation, office equipment, appliances for household, etc.

The motors listed have been exported overseas through our sales representatives in North America and Europe.
