| Prod Model: |
AT-10A |
| Markets: |
North America,South America,Eastern Europe,Africa,Mid East,Western Europe |
| Rated Charging Current: |
10A |
| Rated Input Voltage: |
AC220V |
| Rated Frequency: |
47-63Hz |
| Output Voltage: |
12V and 24V |
| Charging Mode: |
Three-Step Phase |
| Power Factor: |
>85% |
| Full Load Efficiency: |
>87% |
| Working Temperature: |
.-40 to +105 |
| OEM: |
Welcome |
| Warranty: |
2 Years |
| Type: |
Lead-Acid Battery Charger |
| Charging Type: |
Electric Charger |
| Principle: |
Single-Shock Charger |
Product Description

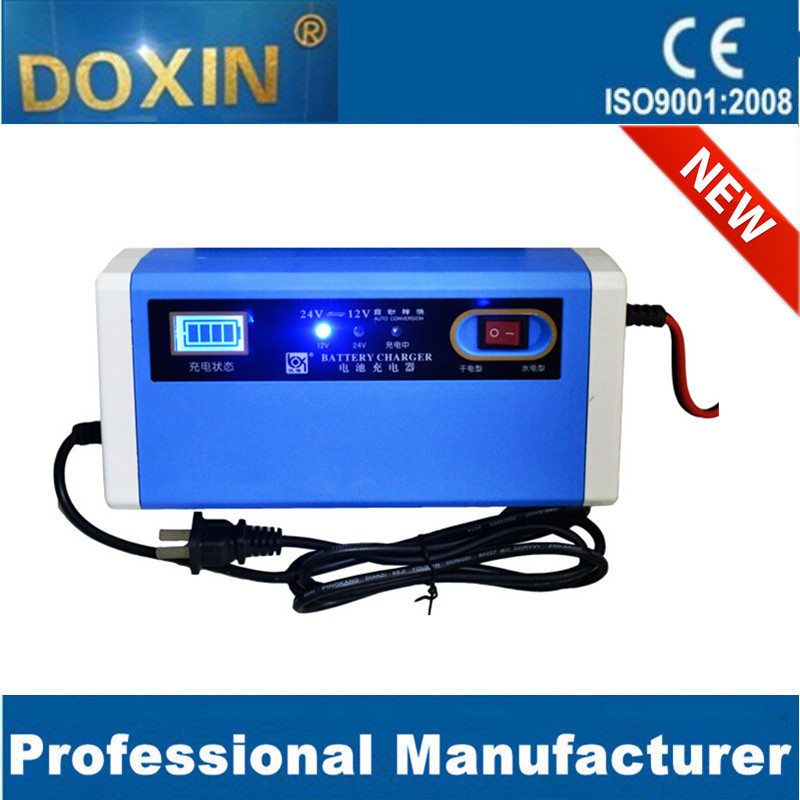

12v 24v 10ah automatic battery charger
Specification
Rated input voltage: AC220V-240V
Rated frequency: 47-63Hz
Output voltage: 12V and 24V
Output current: 10A
Power factor: >0.85
Full load efficiency: >87%
Constant charge voltage: 14.5-14.8v/29.0-29.8V
Floating voltage: 13.8V
Charging mode: three-step phase
12V10A charger is applicable for the lead-acid battery from 12V/75AH to 12V/200AH
Charging mode
Constant current mode: The charger supply constant charge current for the battery.
Constant voltage mode: Using the pulse width modulation(PWM) tech to control the charging current and output voltage of the charger which ensure the battery is fully charged and avoids over charging.
Floating charge mode: When the voltage of the battery is approaching the value of the constant voltage mode, and the current cut down to the given current gradually, that means the battery power is full, then the pilot lamp will turn green and the fan will stop working.The charger will turn the mode into floating charge mode automatically. At this moment, the battery can be stopped charging or keep on floating charge for half an hour.
Charging time
Theory charging time (hour) = Battery capacity(AH) / Chatging current(A)
Optimal charging current(A) = Battery capacity (AH) / 10
Charge Instructions
The red indicator is on means that the battery is charged by rated current.
When the battery charger switches to floating charging mode, the green indicator will be on. It means that the battery will get fully charged in about half an hour.
