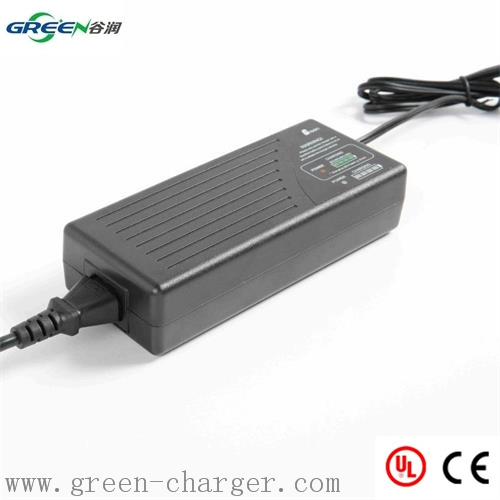

12V/24V/36V/48V Lead Acid Battery Charger

Name: 12V/24V/36V/48V Lead Acid Battery Charger
Brand: all-electronics-online.com
SKU: 690100245
Availability: InStock
Rating: 4.4 (94 reviews)

Price:	US $ 12-13.5/Piece
Trade Terms:	FOB
Min Order:	500/Piece
Pay Type:	T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	G100-XXA
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
For Use:	Standard Battery
Case:	PC+ABS Plastic
Customized:	Yes
Color:	Yes
Recovery Function:	Yes
MCU Controller:	Yes
Short Circuit Protection:	Yes
Reverse Potection:	Yes
Delivery Date:	About 15 Days After Confirm Order
Type:	Lead-Acid Battery
Charger Type:	Lead-Acid Battery Charger
Charger Application:	Electric Car, Electric Scooter,Electric Wheelchair
Nominal Voltage:	14.7V,29.4V,44.1V
Compatible Battery Type:	12V/24V/36V/48V
Size:	170X71X51mm
Socket Type:	VDE,UL,CCC,UK,PSE,SAA,CCC,TUV

Product Description

Charger name: Lead-acid battery charger
Charger suit for: 12V/24V/36V Lead acid battery pack

G100-XXA is a main member of digital-chargers from Green Digital Power-tech Co., Ltd. It represents today's new technology for lead-acid Battery charging. G100-XXA programmed four auto stages ( Ud-Im-Uo-Up) Charging process, It is designed for all kinds of 12V~36V lead-acid battery pack, Such as SLA, AGM and Gel battery. Stage "Ud" desulfurating the battery Through 18V pulse (for 12V battery), When the battery recovered, stage "Im" Will give bulk current charging. Then, "Uo" stage is followed, the output voltage Is limited on 14.7V( for 12V battery); When the battery is nearly full, stage"Up" Will turn on duty. At this stage, the battery is charged completely and the Charger give some pulse to maintenance the battery.

Further, G100 can display the charging process, indicate the battery Capacity from 25% to 100% timely. This is helpful for user.

For more safety, A100will inter protection mode when the battery polarity Reversed or the output connectors shorted.

Specification for A100-XXG
Input Voltage	100-240VAC, 50-60Hz
Input Current	1.6A
Back current drain	1.3mA
Charge voltage Limited	G100-12A	G100-24A	G100-36A
	14.7V+-1%	29.4V+-1%	44.1V+-1%
Bulk charge current	4.5A+-5%	2.8A+-5%	1.8A+-5%
Operate Temperature	-20° C~50° C,
Cooling	Natural convection. Do not cover the charger.
Charge principle	Auto 4 stages: Ud-I-Uo-Up
Battery type	All types of 12V lead-acid batteries. ( SLA, Gel, AGM^ . )
Battery capacity	7-80Ah
Size	170X71X51mm
Enclosure	IP54 (Dust protected, Water splashing resistance)
Weight	400g

Green-charger's engineers have dedicated to digital control power products for 13 years, specialize in the design and manufacture many types of NiMH, NiCd, Li-ion and Lead-acid battery charger and battery meter, and also is a professional in the face of high-end clients of the battery charger and battery meter. These products have high performance microprocessor technology to power your battery safely and quickly The main products are battery chargers that can be used in the Electrical-Vehicle, wheelchair, scooters, motorcycles, RC toy, RC flight, mobile light/lamp, LED lamp and many kinds of portable electrical device. The type of chargers have NiMH NiCd charger, lithium battery charger, lead-acid battery charger, LiFePO4 battery charger and so on. All sorts of 5W to 500W power charger all have production, is one of the most professional manufacturers of battery chargers in China.

After many years experiences, Green-charger made a super technology and rich experience of senior R&D engineers. We can develop battery chargers for NiMH, NiCd, Lead-Acid and Li-ion batter pack. The Battery chargers and Battery Management is our produces family also.

Our quality policy is: Providing high reliability of the products, to provide high satisfaction service. We are equipped with the advanced production and kind of test instruments, has the rich RoHS process production management, to ensure that every batch of products satisfy customers. Our products have CCC UL cUL CE VDE CB PSE FC EMC and so on.

We can according to the specific requirements of customers, customized all kinds of non-standard products to meet the needs
