| Prod Model: |
A200CM-12/A200CM-24/200CM-36A/A200CM-48 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| For Use: |
Standard Battery |
| Case: |
PC+ABS Plastic |
| Customized: |
Yes |
| Color: |
Yes |
| Recovery Function: |
Yes |
| MCU Controller: |
Yes |
| Short Circuit Protection: |
Yes |
| Reverse Potection: |
Yes |
| Delivery Date: |
2-3 Weeks |
| Type: |
Lead-Acid Batery |
| Charger Type: |
Lead-Acid Batery Charger |
| Charger Application: |
Electric Wheelchair, Electric Scooter, |
| Nominal Voltage: |
13.8V /27.6V/41.4V /55.2V |
| Size: |
213*94*54mm |
| Socket Type: |
UL, VDE, PSE, UK, SAA... |
Product Description

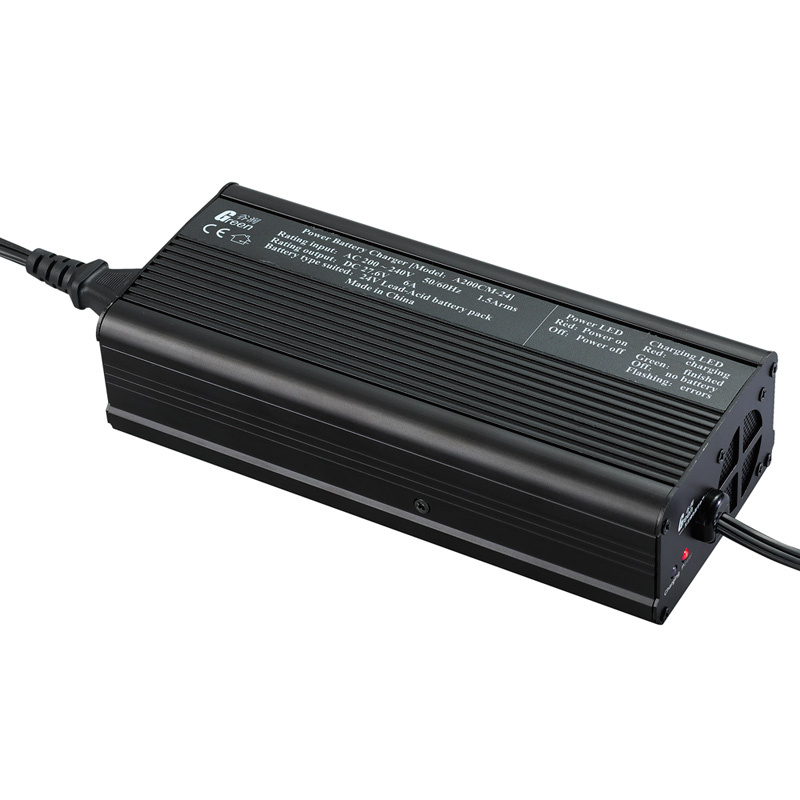

A200CM-XX Series 12V/24V/36V/48V Lead-Acid Battery Charger
-
| Specification |
|---|
| INPUT: AC 100 or 240V(defined when order) |
| Suit for: 12V/24V/36V/48V Lead-Acid Battery(VRLA, AGM, GEL) |
| Charge Process: CC-CV(H)-CV(L) |
| LED Indicator: Red Charging/Green Finished |
| Safety Approval: CE |
| size: 210 x 93 x 53mm(Aluminum) |
| Note: These models have no MOQ limitation |
Charger of Series A200CM-XX
| Charger Models | Input | Output | Suit for Battery |
|---|
| A200CM-12 | 100 or 240V(defined when order) | 13.8V 12A | 12 Volt 10~100Ah |
| A200CM-24 | 100 or 240V(defined when order) | 27.6V 8.0A | 24 Volt 8~50Ah |
| A200CM-36 | 100 or 240V(defined when order) | 41.4V 6.0A | 36 Volt 8~50Ah |
| A200CM-48 | 100 or 240V(defined when order) | 55.2V 3.5A | 48 Volt 8~30Ah |
1. The charger integrates power factor correction (PFC), it can avoid the impact of high current and can't produce pollution on the grid
2. The input AC voltage is 90V~264V 50~60Hz for A200-XX, and is 90V~132V or 200V~260V 50~60Hz for A200CM-XX
3. Efficiency > 87%, Power Factor > 0.97 [for A200] or >0.7[for A200CM]
4. With MCU controller, CC+CV(H)+CV(L) 3-stages charge method
5. Designed for 12V~48V Pb-Acid battery
Protection
1. The charger's internal relay makes the output voltage is less than 5.5V with no-load, when the output is connected to a battery, the output voltage of charger is normal
2. Short circuit protection: When the output of charger is shorted, the charger will close output automatically without any damage
3. Reverse polarity protection: When the output is connected to a battery reversely, the charger will close output automatically without any damage
4. Overheating protection: The internal temperature exceeds 80° C, the charger will close output automatically
If you have specific parameters and requirements for our High Power Lead-Acid Battery Charger, customization is available
