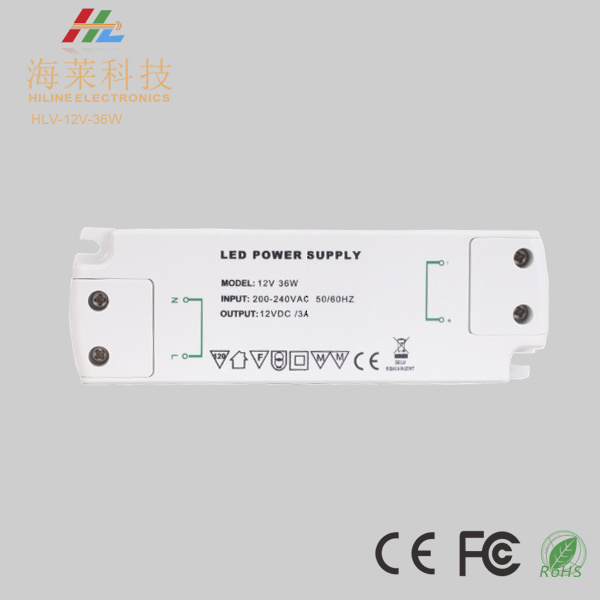

12V 24V 36W Plastic IP20 LED Driver

Name: 12V 24V 36W Plastic IP20 LED Driver
Brand: all-electronics-online.com
SKU: 787120635
Availability: InStock
Rating: 5 (119 reviews)

Price:	US $ 4.3-4.9/Piece
Min Order:	100/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	HLV-12V/24V-36W
Size:	1404522mm
Color:	White
Material:	Plastic
Output Type:	Multiple
Output Power:	1 - 50W
Connection Mode:	Series Switching Power Supply
Starting Mode:	Self-excited Switching Power Supply
Voltage Regulating Mode:	Width Modulation Type
Power Supplying System:	Level 2 Power Distribution Equipment
Certification:	FCC
Input Voltage:	AC90-250V

Product Description

12V 24V 36W Plastic IP20 LED Driver Features:

1. Constant Voltage design;
2. Fully isolated plastic case with terminal block style of I/O;
3. Compact size with high safety, reliability;
4. Protections: Short circuit/Over load;
5. Cooling by free air convection;
6. 100% full load burn-in test;
7. Widely used in LED Lighting;

12V 24V 36W Plastic IP20 LED Driver specs:

MODEL		HLV-12V-15W	HLV-24V-15W
OUTPUT	DC voltage	12V	24V
	Rated current	3A	1.5A
	Current range	0~3A	0~1.5A
	Rated Power	36W	36W
	Voltage tolerance	12±0.5V	24±0.5V
	Ripple & Noise	200mV	200mV
	Load regulation	±3%	±3%
	Setup time	≤2S	≤2S
INPUT	Voltage range	100-240VAC	100-240VAC
	AC Current	0.6A	0.6A
	Leakage Current	≤0.25mA	≤0.25mA
	Frequency range	50/60Hz	50/60Hz
	Efficiency (Typ.)	83%	80%
PROTECTION	Over load	110%-150%
PROTECTION	Short circuit	The driver shall not damage and with auto recovery function by short the DC output to Group
ENVIRONMENT	Working TEMP.	-20ºC~45ºC
	Storage TEMP.	-40ºC-85ºC
	Working Humidity	20~90% RH non condensing
	Vibration	10~500Hz,2G 10min/1cycle,period for 60min,each along X,Y,Z axes
	TEMP. coefficient	±0.03%/ºC(0~50ºC)
SAFETY & EMC	Safety Standards	Design refer to EN61347
	Withstand Voltage	I/P-O/P:1.5KVAC
	EMC	Design refer to EN55015, EN61547, EN61000
OTHERS	MTBF	150KHours (25ºC)
	Dimension	1404522mm(LWH)
	Master Carton	33.323.329cm(LWH)

12V 24V 36W Plastic IP20 LED Driver Packing & label:

1. Size for inner box: 142(L)*48(W)*24(H)mm
2. Master Carton :33.3*23.3*29cm(L*W*H)
3. Packing information: Net Weight:115.1G, 168pcs/ctn; Gross Weight/ctn:21.4KG
4.Natural Mark:
