12V 24V 48V Micro Hydraulic Power Pack DC Motor

Name: 12V 24V 48V Micro Hydraulic Power Pack DC Motor
Brand: all-electronics-online.com
SKU: 830075895
Availability: InStock
Rating: 4.7 (111 reviews)

Price:	US $ 55-70/Piece
Min Order:	1/Piece
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	zd1211-8/zd2411-8/zd4811-8
Volt:	12V/24V/48V
Current:	150A/75A/39A
Speed:	2300rmp
Protect Feature:	IP44
Rotation:	Cw
Application:	Power Tools
Operating Speed:	Constant Speed
Excitation Mode:	Compound
Structure And Working Principle:	Brush
Brand:	Sanghao

Product Description

12V 24V 48V Micro Hydraulic Power Pack DC Motor

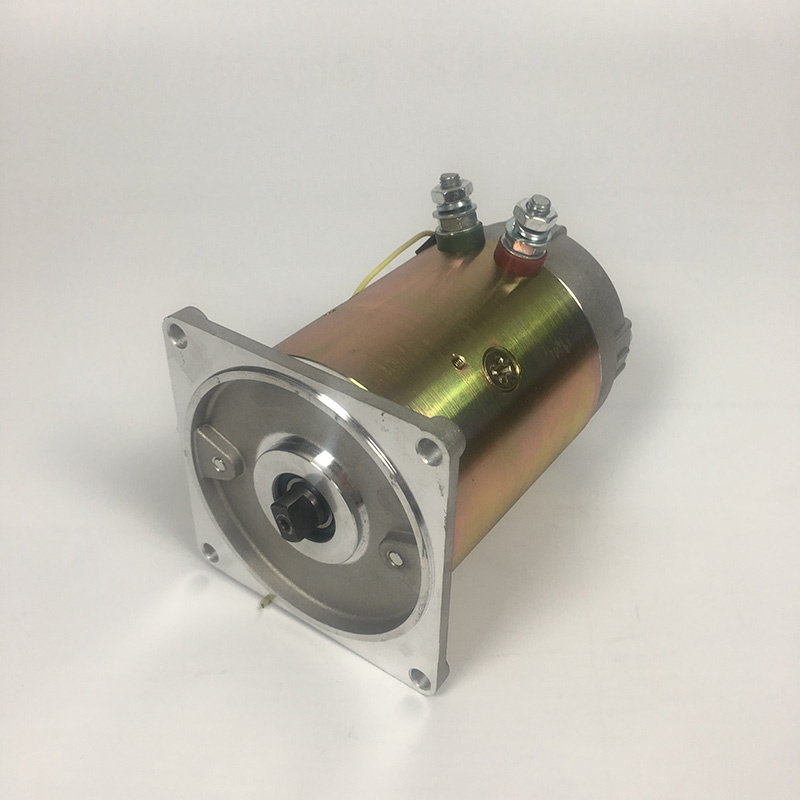

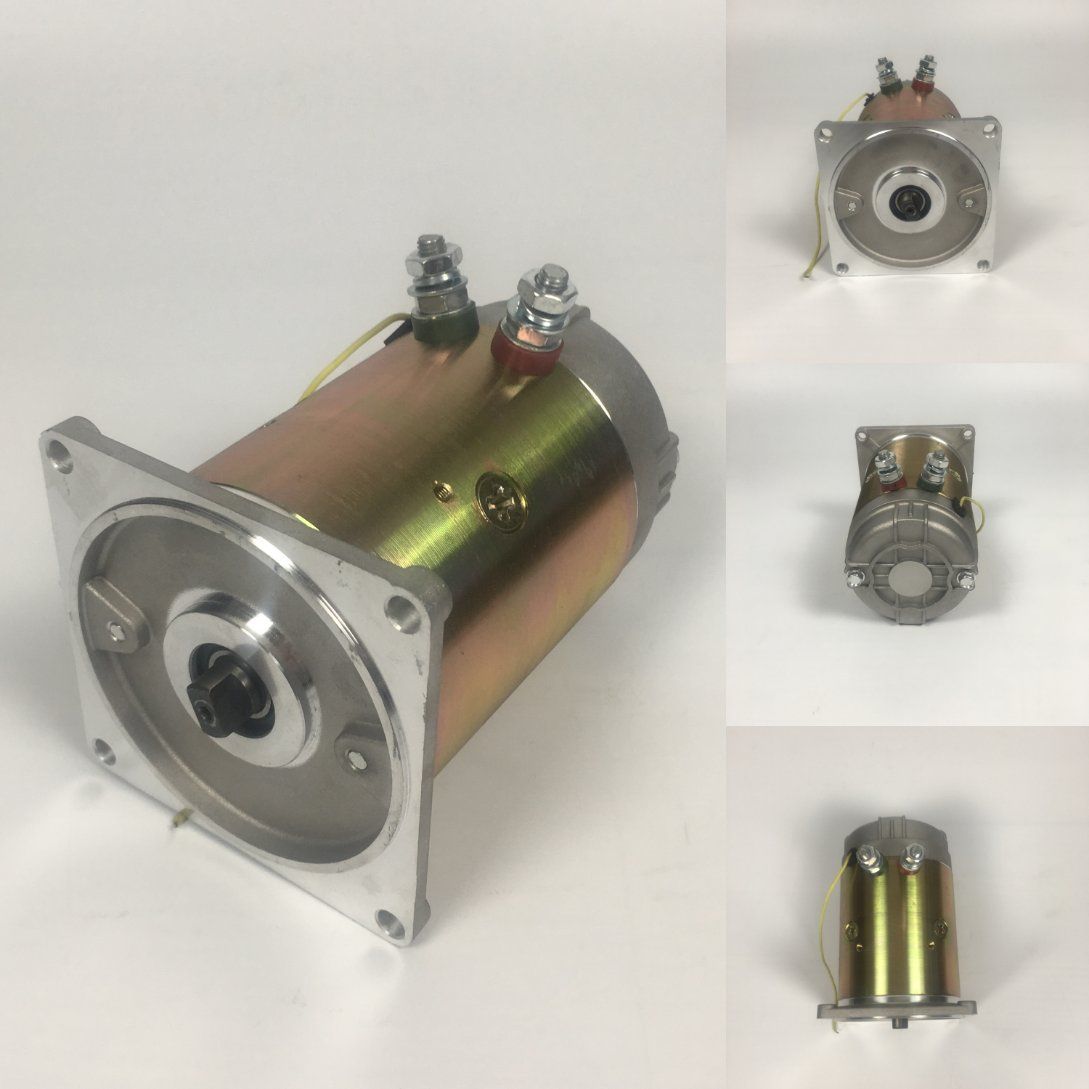

1. Product Picture

2. Technical Parameter Comparison

Type	Volt	Power	Current	Speed	Rotation	Protect Feature	Weight
zd1211-8	12V	0.8KW	150A	2300rmp	CW	IP44	4.3KG
zd2411-8	24V	0.8KW	75A	2300rmp	CW	IP44	4.3KG
zd4811-8	48V	0.8KW	39A	2300rmp	CW	IP44	4.3KG

3. Motor Package
Carton box and wooden pallet double guarantee the safe of motors.

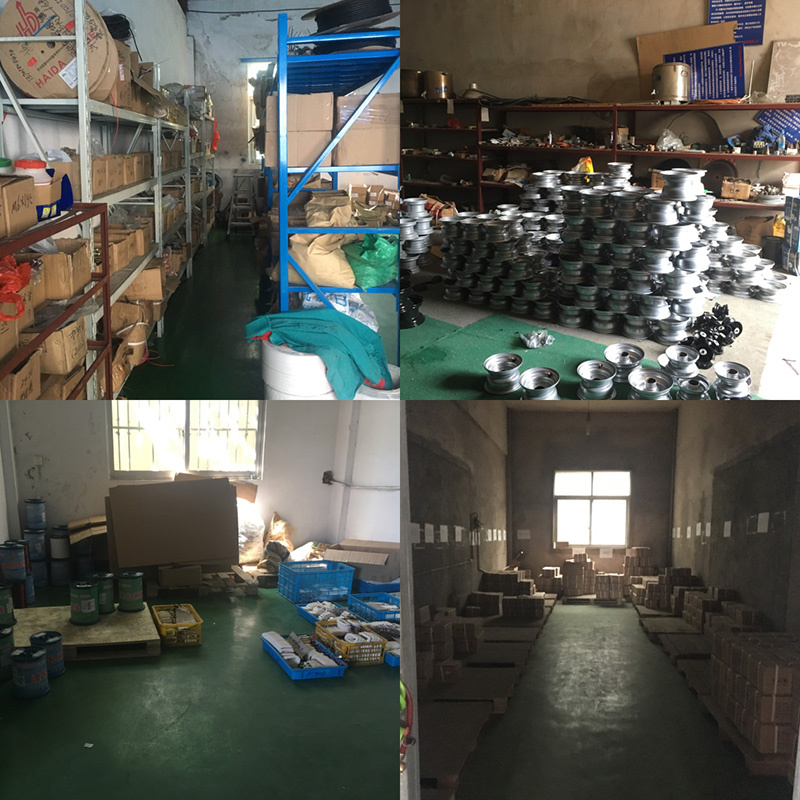

4. Factory Motor Warehouse
Each part of motor which we need during the production has individual warehouse to store them such as winding, tube and other accessories.The finished motors are put into another separate warehouses. Then it can be convenient for the workers to assembly the motor, package the motor and send the motor to our clients.

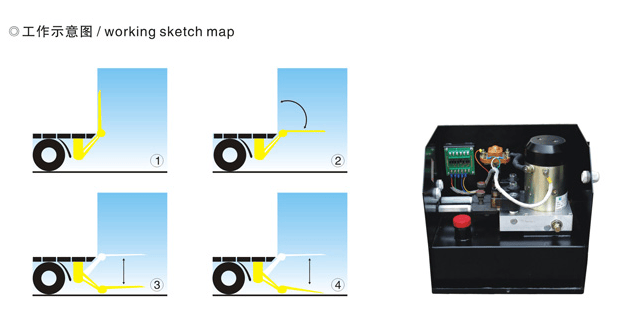

5. Application
Our factory has more than 60 various dc motors and volt ranges from 12V to 72V to satisfy different demand of our clients. Our motor mainly used in hydraulic power units such as lifting platform, van wing door machine, forlifter or etc.

6. FAQ
A. Are you a manufacture or trading company?
We are a manufacture which has our own company and located in Changzhou, Jiangsu.
B. Do you provide the sample?
Absolutely yes! We are glad to provide the sample.
C. Do you accept customized?
Yes, we have engineers can help you do the customized motor and had better have the sample.
D. How long you can get the products?
If our exist products, we will arrange package and send them out immediately.
If need to do it, it should depend on your qty, around 20days will send them out.

If you are interested to our products and want to know more information, pls donot hesitate to contact us. We are honored to povide the good service to you!

Changzhou Sanghao Vehicle Fitting Co., Ltd is established in 1992 and located in beautiful coast of Taihu Lake, which is a professional factory who mainly produce steel wheel hub and DC motor. The size of wheel hubs ranges from 4 inches to 12 inches, totally around 60 varieties. Different surface treatment of them can also be provided such as electrostatic spraying, hot galvanizing and etc. We have over 40 different kinds of DC motor whose power ranges from 0.3kw-4kw and all of them are used for hydraulic power unit for auto such as car tail plate, electric forklift, the lift platform of sanitation truck and etc. Our company makes 'doing every product perfectly and nicely and serving every client briskly and thoughtfully' as our purpose. Nowadays, we are constantly developing new products and absorbing new brains in order to make and improve first-class team and quality. At the same time, we have passed ISO9001-2000 to supervise our quality. We sincerely welcome customers at home and abroad to cooperate with us.
