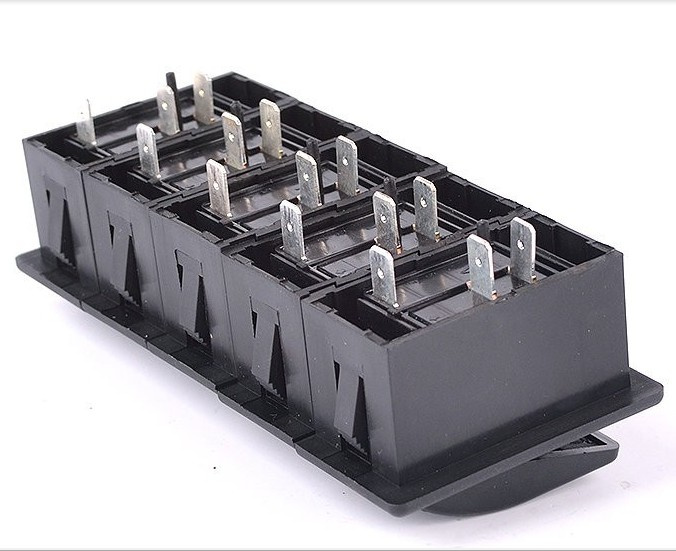

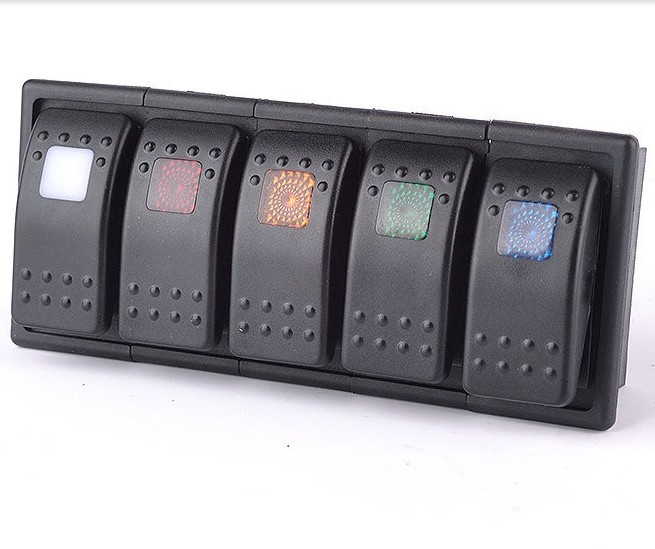

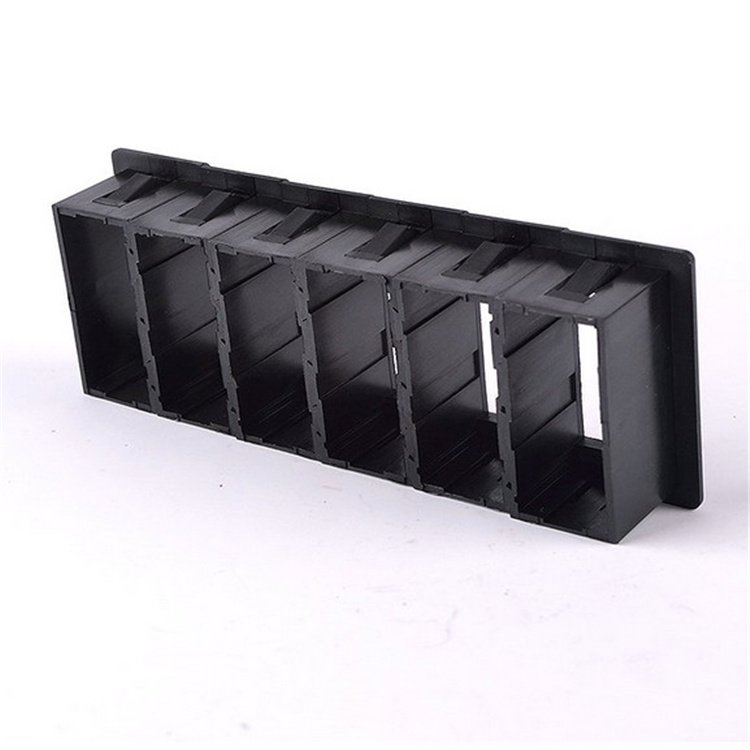

12V- 24V 5 LED Color Bar Rocker Switch Panel Arb Carling with Clip Holder

Name: 12V- 24V 5 LED Color Bar Rocker Switch Panel Arb Carling with Clip Holder
Brand: all-electronics-online.com
SKU: 762919615
Availability: InStock
Rating: 4.9 (130 reviews)

Price:	US $ 15.5-16.0/Piece
Trade Terms:	FOB
Min Order:	100/Piece
Pay Type:	L/C,T/T,D/P,Money Gram,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	MY
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
DC:	12V/20A, 24V/10A
Pin:	3 Pins
Material:	ABS Plastic Panel
Panel Cutout Dimesion:	36.8*21mm
Feature:	Waterproof Switch
Hxwxd:	42X24X40mm
Rating Ampere:	20A
Max. Voltage:	24V
Usage:	Digital Products
Standard:	Standard
Lamp:	With Lamp
Color:	Black
Certification:	CE
Condition:	New

Product Description

Description:

[1] super luxury high-end automobile refitting switch, with GreenLED indicator;

[2] CE certification, environmental friendly flame retardant materials;

[3] 12-24V voltage vehicle general; suitable for retrofit control car all equipment;

[4] output short-circuit protection, overload protection, polarity protection, multiple protection,more security for use.

Led indicator light:blue/white/red/yellOow/green

Polarity:SPST

switching function:ON-OFF /or(ON)-OFF

number of terminals:3

With light condition:1

Product size:49.57*24.4*49(mm)

installation of the product rule:37.2*21.2mm

weight:30g

Maximum continuous load:AC 125V/10A ,12V/20A,24V/10A

Maximum load and time:DC 12V /23A 24V 11.5A 5 seconds for once,Continuous 30 times

Minimum load current:Minimum load can be zero

DC maximum voltage:30v

DC minimum voltage:3v

Max contact load:AC 125V/10A ,12V/20A,24V/10A

Break the negative sectional maximum contact:AC 1500V 1 miunte

Working cycle:5s

Life cycle without load:20000

The life cycle of full load:10000

Contact materials / components:Silver tin oxide / copper

Operating temperature range:30K

Protection grade:IP66

Product material:CE,ABS waterproof material

Applicable models:Suitable for all 12/24v car battery installation and use, such as automobile, motorcycle, bus, ship, car, yacht, trailers and so on vehicle.

Product function:Control of various electrical equipment inside the opening or closing device, widely used

Product features:CE certification, environmental friendly flame resistant materials, waterproofing and anti combustion effect is remarkable.

*************************************************
