12V 24V 5W Mini Plastic Constant Voltage LED Driver

Name: 12V 24V 5W Mini Plastic Constant Voltage LED Driver
Brand: all-electronics-online.com
SKU: 685679665
Availability: InStock
Rating: 5 (99 reviews)

Price:	US $ 2.7-3.1/Piece
Trade Terms:	FOB,CIF,CIP
Min Order:	100/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	HLV-12V-5W
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Size:	140X45X22mm
Usage:	LED Strip LED Module
Output Type:	Single
Driving Method:	LED Regulator Voltage
Circuit Structure:	PWM Controlled
Brand:	Hiline

Product Description

12V 24V 5W mini Plastic constant voltage LED driver features:

1. constant voltage design;
2. fully isolated plastic case with terminal block style of I/O;
3. Compact size with high safety, reliability;
4. Protections: short circuit/over load/over current;
5. Cooling by free air convection;
6. 100% full load burn-in test;
7 Widely used in LED lighting;

12V 24V 5W mini Plastic constant voltage LED driver specs:

MODEL		HLV-12V-5W	HLV-24V-5W
OUTPUT	DC voltage	12V	24V
	Rated current	0.42A	0.21A
	Current range	0~0.42A	0~0.21A
	Rated Power	5W	5W
	Voltage tolerance	12±0.5V	24±0.5V
	Ripple & Noise	200mV	200mV
	Load regulation	±3%	±3%
	Setup time	≤2S	≤2S
INPUT	Voltage range	100-240VAC	100-240VAC
	AC Current	0.2A	0.2A
	Leakage Current	≤0.25mA	≤0.25mA
	Frequency range	50/60Hz	50/60Hz
	Efficiency (Typ.)	72%	75%
PROTECTION	Over load	110%-150%
PROTECTION	Short circuit	The driver shall not damage and with auto recovery function by short the DC output to Group
ENVIRONMENT	Working TEMP.	-20ºC~45ºC
	Storage TEMP.	-40ºC-85ºC
	Working Humidity	20~90% RH non condensing
	Vibration	10~500Hz,2G 10min/1cycle,period for 60min,each along X,Y,Z axes
	TEMP. coefficient	±0.03%/ºC(0~50ºC)
SAFETY & EMC	Safety Standards	Design refer to EN61347
	Withstand Voltage	I/P-O/P:1.5KVAC
	EMC	Design refer to EN55015, EN61547, EN61000
OTHERS	MTBF	150KHours (25ºC)
	Dimension	8339.522mm(LWH)
	Master Carton	4125.514cm(LWH)

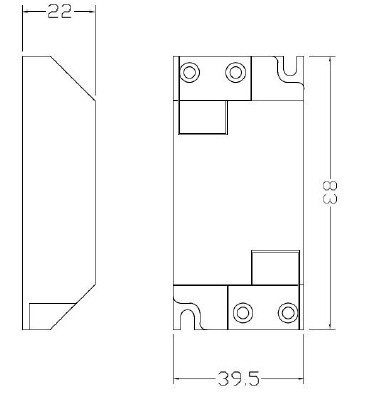

12V 24V 5W mini Plastic constant voltage LED driver size:

12V 24V 5W mini Plastic constant voltage LED driver Packing & label:

1. Size for inner box: 90(L)*40(W)*28(H)mm
2. Master Carton :41*25.5*14cm(L*W*H)
3. Packing information :Net Weight/pce:48.1g,100pcs/ctn; Gross weight/ctn: 6.1Kg.

4.Natural mark:
