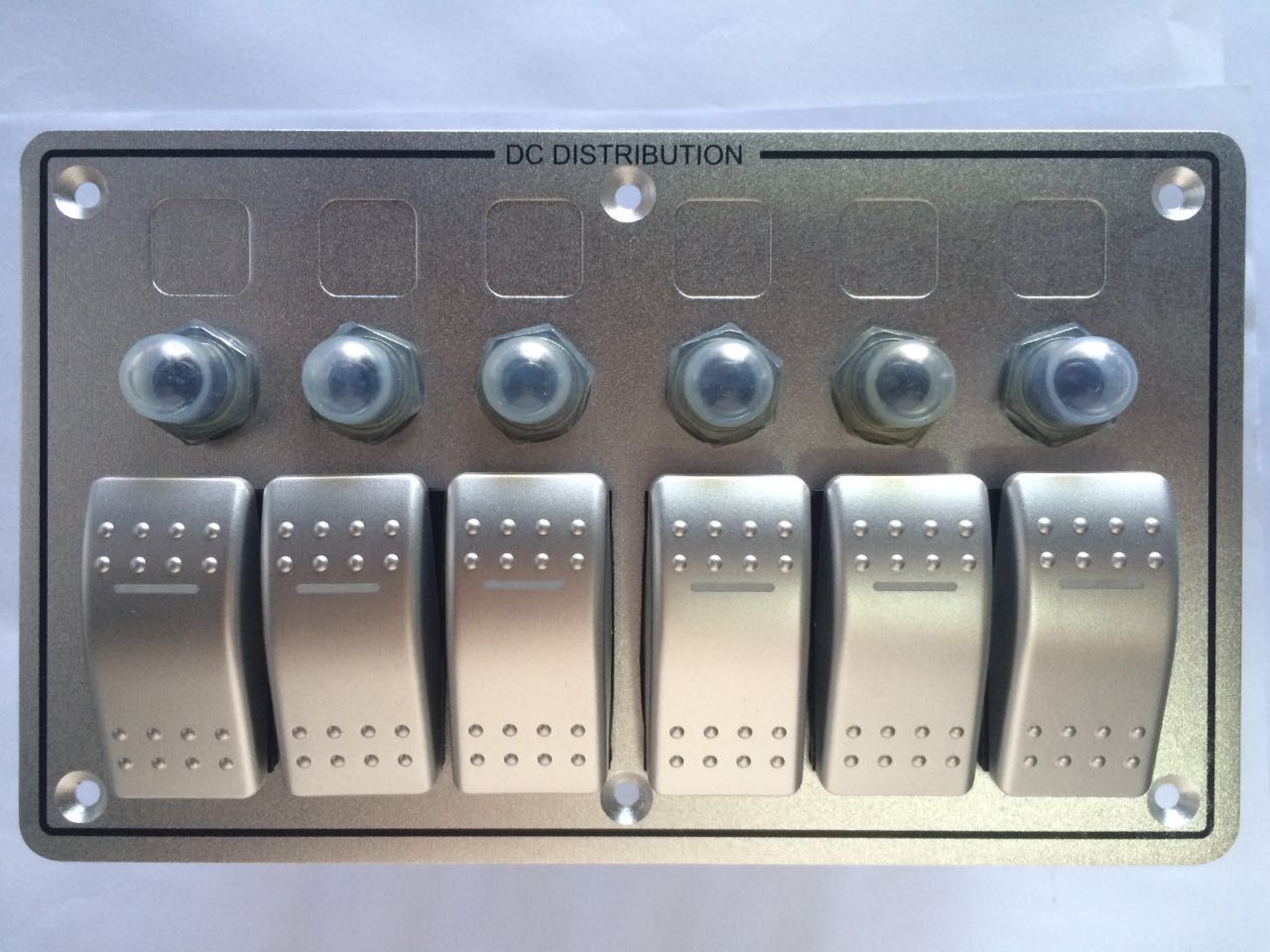

12V 24V 6 Gang Excellent Quality with Circuit Breakers Aluminum LED Rocker Switch

Prod Model:	MY
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Brand Name:	My
Max. Current:	DC 12V/20A, 24V/10A.
Max. Voltage:	DC 12V/20A, 24V/10A
Switch Color:	Black, Silver or Customised
Usage:	Vehicle
Standard:	Standard
Color:	Black
Certification:	CE
Condition:	New

Product Description

Switch Dimensions:	130 mm X100 mm	Mechanical Life:	100 000, 100,000 times	Products name:	Excellent 6 Gang 12V 24V Aluminum LED Rocker Switch Panel
Switch Color:	Black & silver	LED Light Color:	Amber\Orange\Red\Blue\Green	Panel Material:	ABS+PBT+PC+POM
Switch Type:	SPDT\DPDT\DPTT	Waterproof:	Ingress Protection 68
Circuit Breakers:	5A-10A-15A (order by the customer )	Fit For:	Marine /Off-Road /4X4 ATV /Motorcy

Packaging & Delivery

Packaging Details:	20 plate * 25PCS = 500PCS (each box) , the box size of carton is 34.5cm * 36 cm* 55 cm , the total weight is 18 kg (gross weight / each box)
Delivery Detail:	10-12 business days after confirmed the payment

Excellent 6 Gang 12V 24V Aluminum LED Rocker Switch Panel With Circuit Breakers

Description :
Brand New high quality 6 Gang Switch Panel  with inbuilt circuit Breaker and Red LED indicator. Made of high quality  aluminum,and be electrostatic spray. Specifically designed for Marine/MOTORHOME/SUV,it is very luxury be installed in your marine or  Automible.we have all kind of switch panel.please tell me,if you need to  purchase many.Our product is very popular in Europe and America .

Feature :
Sleek&Contemporary design,perfect for your machine
High quality,Made of aluminium
With rubber seal-cap to keep it water-tight,best for marine
Overload protection
SplashProof,anti-corrosion
Easy to install,can be installed horizontally or vertically(horizontally optional)


Specification
Model:8-30V Waterproof LED Backlight 6 Gang Switch Panel
Material Description:High quality aluminium-(White optional)
Installation:Pre-wired
Switches Available:6 Gang
AMP Rating per circuit:15AMP Max
Rocker Switch:6
Breaker:6(5A X 3;10A X 2;15A X 1)
Loop Circuit:ON-OFF
Switch System: Water-resistant enclosed Rocker switch
Rating:AC 125V 16A,250V 10A;DC 12V 20A,24V 10A
Dielectric Strength:AC 1500V 1minute
Operating Temperature:-25degree to 80degree
Electrical Life:10000 make and break cycles at full load
IP Rating:IP68
Dimensions:110.5(Width)X190.5(Height)X83(Depth)mm

Package :
1 X 12V/24V LED Aluminium ROCKER SWITCH PANEL
1 X pre-printed labels
