12V 24V DC Wardrobe PIR Motion Sensor

Name: 12V 24V DC Wardrobe PIR Motion Sensor
Brand: all-electronics-online.com
SKU: 820159065
Availability: InStock
Rating: 4.4 (49 reviews)

Price:	US $ 3.5-6.5/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	KA-S78
Warranty:	Two Years
Delivery Time:	Within 10 Days
Output:	Switching Sensor
Usage:	Light Sensor
Theory:	Infrared Sensor Switch
Package:	Customized Color Box or White Box
Delaying Time:	1 to 10min
Detection Distance:	5-8m
Power:	12V or 24V
Function Type:	PIR Sensor
Detection Type:	Infared Motion Sensor
Material:	PC
Certification:	Ce, RoHS
Customized:	OEM and ODM Orders Accepted

Product Description

KA-S78 12/24V PIR sensor specifications:

1) Supply voltage: DC12/24V
2) Output voltage: DC12/24V
3) Output: 1 channel
4) Sensing distance: 5 ~ 8 M.
5) Detection angle: 180 degrees.
6) Output current: <6A
7) Delay time: 1-10min (adjustable) Working temperature: -20-60 ºC
8) External dimension: L76 Χ W45 Χ H34 mm
9) Packing size: L104 Χ W64 Χ H41 mm
10) Net weight: 32g
11) Gross weight: 50g

Product introduction:

1. Connect the load wire at first,following by the power wire; Please ensure short circuit can not occur between connecting wire before you turn on the power;

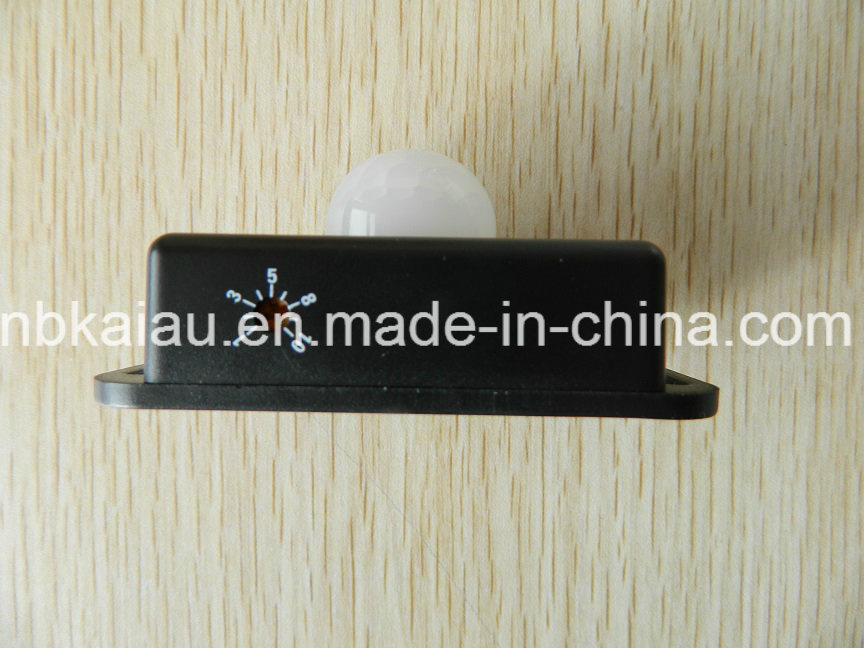

2. There is a time setting knob on the back of the controller, rotate the knob, you can set the delay time of human body induction switch, when detecting someone, it lights up the light, and after the time of people leaving reaches the set delay time, the light will be turn off automatically.

3. The controller signal output line and input line should be connected correctly.

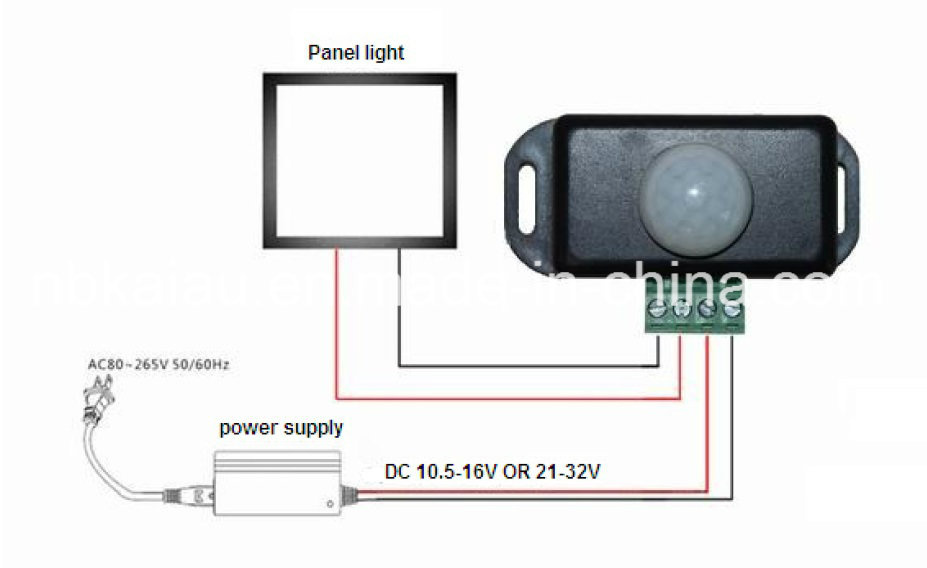

KA-S78 Wiring diagram:

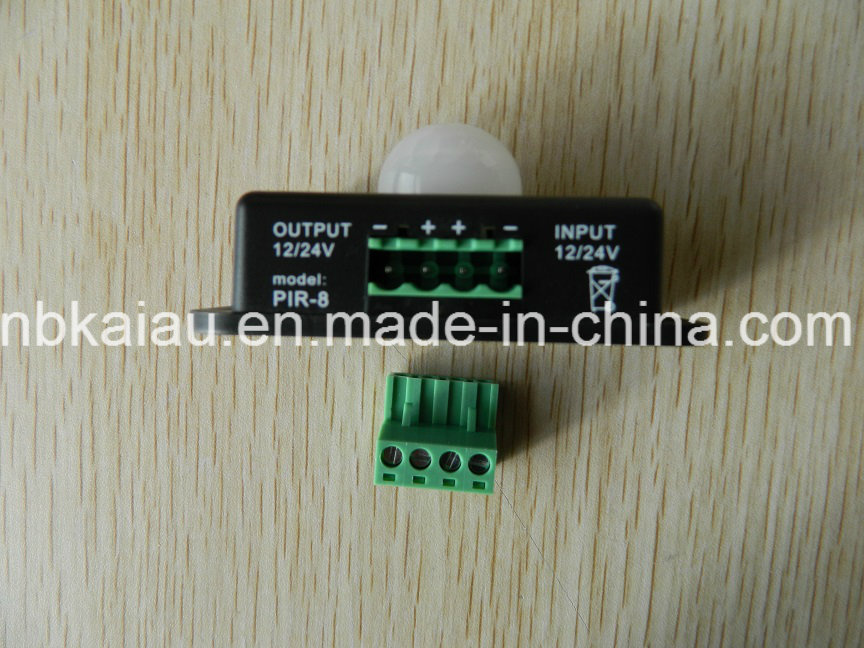

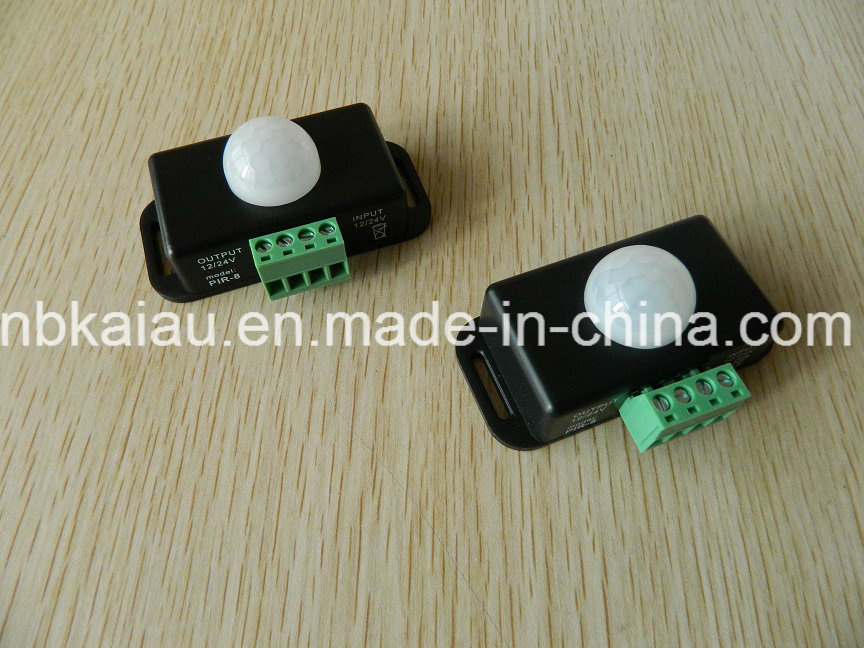

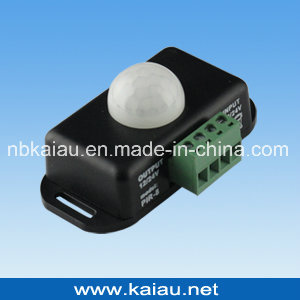

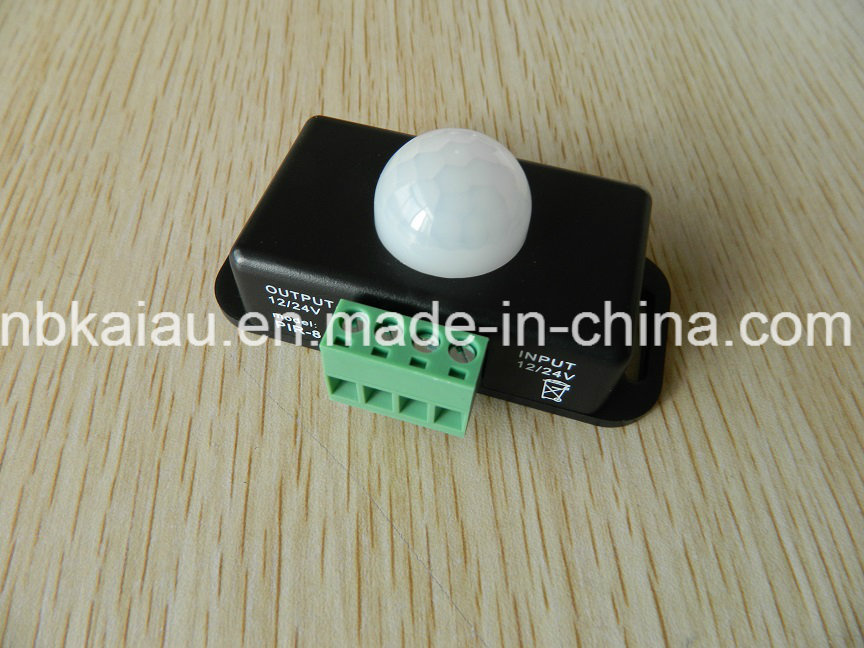

KA-S78 Actual Photo:
