12V 24V Hydraulic DC Motor

Name: 12V 24V Hydraulic DC Motor
Brand: all-electronics-online.com
SKU: 829794455
Availability: InStock
Rating: 4.6 (24 reviews)

Price:	US $ 45-50/Piece
Min Order:	1/Piece
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	zd1201/zd2401
Volt:	12V/24V
Power:	1.6kw/2.2kw
Speed:	2500rmp/2600rmp
Rotation:	Cw
Protect Feature:	IP44
Application:	Power Tools
Operating Speed:	Constant Speed
Excitation Mode:	Compound
Structure And Working Principle:	Brush
Brand:	Sanghao

Product Description

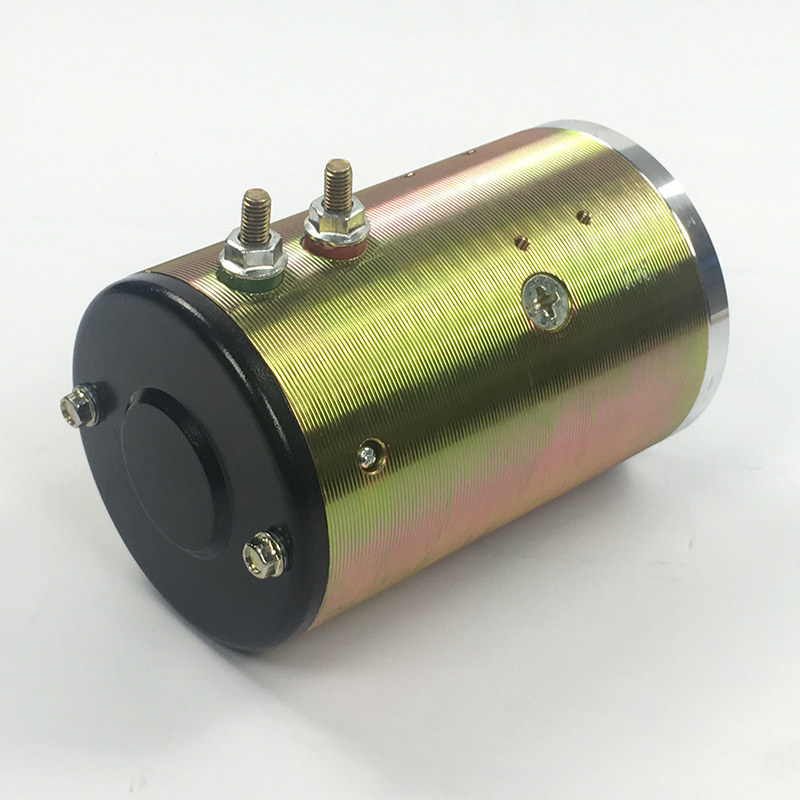

12V 24V Hydraulic DC Motor

1. Comparison of Specification

Type	Volt	Power	Current	Speed	Protect Feature	Rotation	Weight
zd1201	12V	1.6KW	260A	2500rmp	IP44	CW	7.5KG
zd2401	24V	2.2KW	155A	2600rmp	IP44	CW	7.5KG

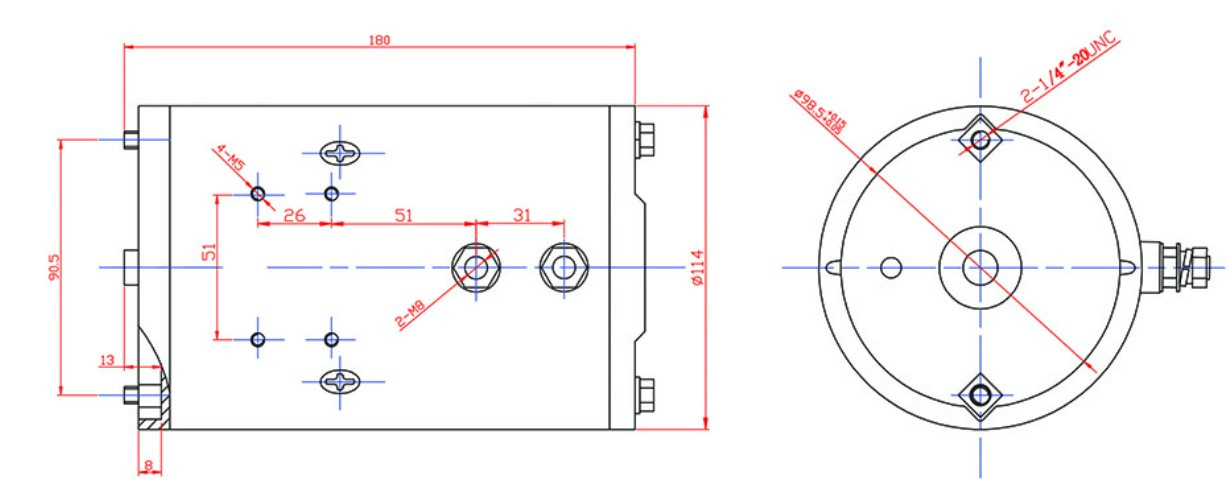

2. Outline Dimension

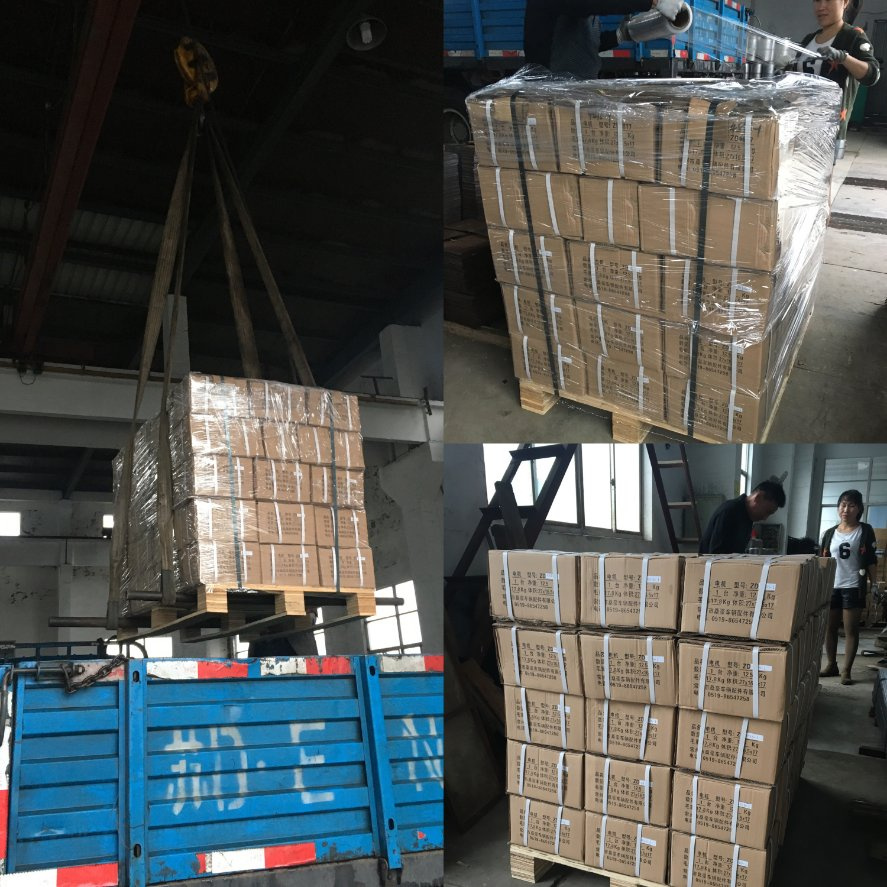

3. Package
Really safe package for the dc motor. Motor will be put into carton box first and we will also
put carton small pieces into the box to protect the motor. Carton box will be put into pallet then we will use belt to fix it and use pvc film to protect from the rain.

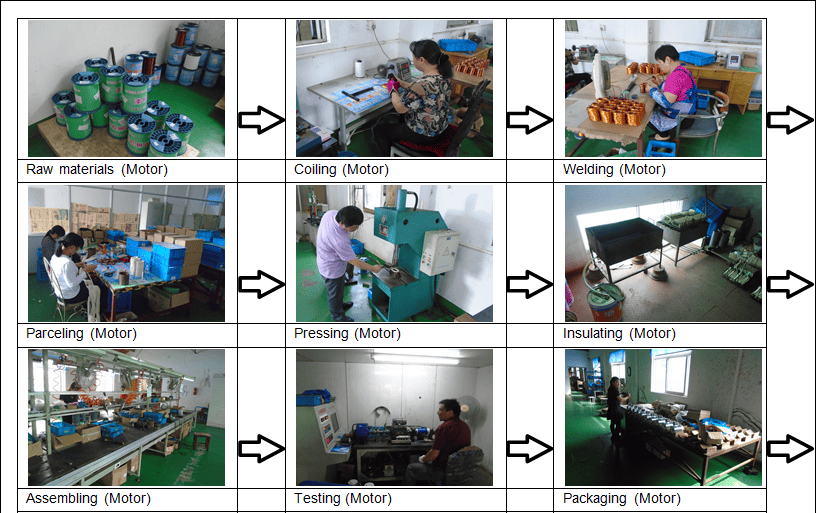

4. Motor Factory Shop
Our motor will go 9 steps to finish the motor package. The factory shops are mainly divided into two parts: assembly department and winding department. Each motor will go testing before package to see if the sound, speed, current and other technical parameters are ok. So quality is controlled in our factory.

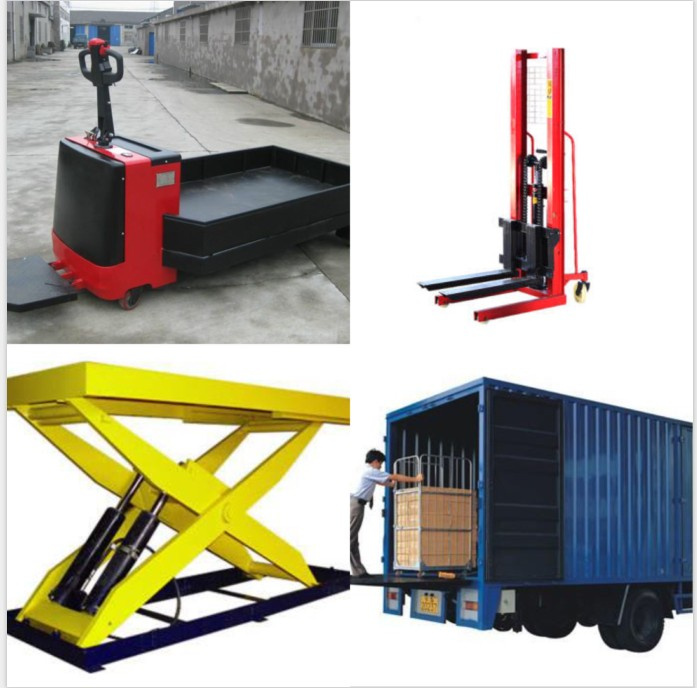

5. Application
More than 60 dc motors in our factory and they can be widely used in hydraulic power units,
cars, industrial or etc. More detail to say, our motors are used in van wing door machine, forklifter, lifting platfrom and etc.

6. FAQ
A. Are you a manufacture or trading company?
We are a manufacture which has our own company and located in Changzhou, Jiangsu.
B. Do you provide the sample?
Absolutely yes! We are glad to provide the sample.
C. Do you accept customized?
Yes, we have engineers can help you do the customized motor and had better have the sample.
D. How long you can get the products?
If our exist products, we will arrange package and send them out immediately.
If need to do it, it should depend on your qty, around 20days will send them out.

If you are interested to our products and want to know more information, pls donot hesitate to contact us. We are honored to povide the good service to you!

Changzhou Sanghao Vehicle Fitting Co., Ltd is established in 1992 and located in beautiful coast of Taihu Lake, which is a professional factory who mainly produce steel wheel hub and DC motor. The size of wheel hubs ranges from 4 inches to 12 inches, totally around 60 varieties. Different surface treatment of them can also be provided such as electrostatic spraying, hot galvanizing and etc. We have over 40 different kinds of DC motor whose power ranges from 0.3kw-4kw and all of them are used for hydraulic power unit for auto such as car tail plate, electric forklift, the lift platform of sanitation truck and etc. Our company makes 'doing every product perfectly and nicely and serving every client briskly and thoughtfully' as our purpose. Nowadays, we are constantly developing new products and absorbing new brains in order to make and improve first-class team and quality. At the same time, we have passed ISO9001-2000 to supervise our quality. We sincerely welcome customers at home and abroad to cooperate with us.
