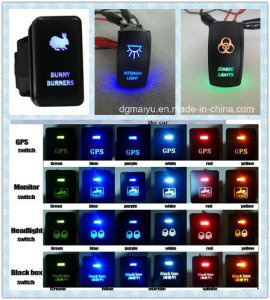

12V-24V Laser Engraved Waterproof Rocker Switch

Prod Model:	Waterproof Rocker Switch
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Max. Current:	20A
H*W*H Size:	42X24X40mm
Voltage:	12-24V
Rating Current:	10A 20A
Brand:	Maiyu
Pins:	5 Pins
Colors:	Optional
Waterproof:	IP 66
Approval:	CE RoHS
Usage:	Toys
Standard:	Standard
Lamp:	With Lamp
Certification:	CE
Condition:	New
Color:	Red, Yellow, Blue, Green, White, Purple, Customise

Product Description

Condition:New
Color:Red, Yellow, Blue, Green, White, Purple...

Max. Current:20A
Protection Level:9

Max. Voltage:250V
Rating Current:12V

Panel Cutout Dimesion:36.8*21mm
H*W*H:42X24X40mm

Feature:Waterproof Switch
Export Markets:Global
Additional Info.
Trademark:MAIYU

Packing:50PCS in a Blister Box, 500 PCS
Standard:CE, ROHS

Origin:Guangdong, China
Production Capacity:50000PCS/Month
Product Description

IP68 Dual LED dual color rocker switch with Laser Etched symbols

Details and the Specifications:

1.Abs plastic panel
2.waterproof rocker switch
3.500000 Mechanical Life
4. Process can be screen printing and laser carving
5. It has a face surface size of 0.90'' x 1.92'' and uses a standard din size mounting hole. Cutout Dimensions are 0.83'' x 1.45''.

These high quality 12 volt Rocker switch is a single throw ON - OFF switch designed to operate your 12 volt accessories. They have a face surface size of 2'' (50mm) x 1'' (25mm) and uses a standard din size mounting hole of 1.41'' (36mm) x .86'' (22mm) this is the standard size of most switch holes in modern vehicles, however it is best to check your particular hole size if unsure.

Single Pole Single Throw ON-OFF switch.
12VDC 20Amps, 24VDC 10Amps 125VAC 16Amps, 250V DA10Amps.
Black hard surface rocker.
Two LEDs in the switch.
Upper LED is ON only when the switch is turned ON.
Lower LED is independent.
Both LEDs have separate grounds.
Same size as the Carling and ARB switches.
Rated 16A 12V.
No rear barriers between terminals.

Company profile:

Dongguan Maiyu Electronic Co., Ltd is a professional manufacturer and exporter of Wall Switches, Car & Boat Rocker Switches, Button Switches, Auto Switches, Toyota Switches, Car Cigarette Lighter Power Socket, Toyota USB Socket, Outlet, Power Bank, Solar Outdoor Light & Lamp, Garden Light, Yard Lamp, Lawn Light & Lamp, Fuse, and other components.

We have ten years of experience in manufacturing industry, and our products have pasted certifications of CE & RoHS, etc.

"Customer Satisfaction" is our first priority.

---------------------------------------------------
