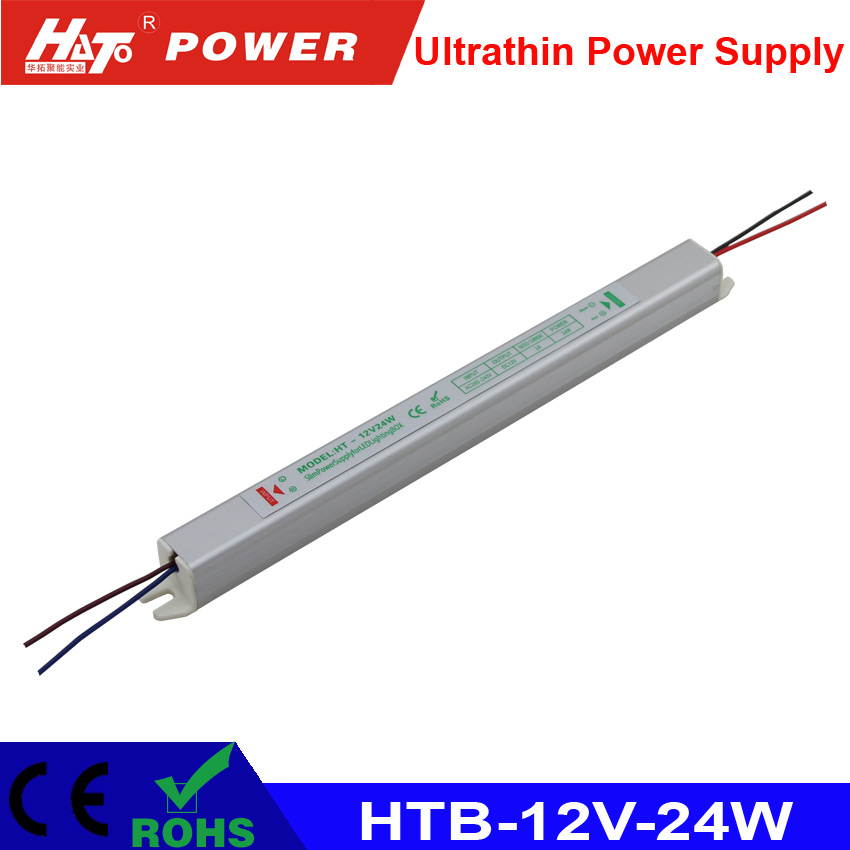

12V 24W Ultra Thin LED Power Supply for Light Box
| Price: |
US $ 2.08-18.34/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: |
HTB-12V-24W |
| Warranty: |
2 Years Warranty |
| Usage: |
Vehicle |
| Output Type: |
Single |
| Driving Method: |
LED Regulator Voltage |
| Circuit Structure: |
PWM Controlled |
| Power Supply Voltage: |
170-260V |
| Brand: |
Huatuo |
Product Description
Features:1. Universal AC input/ full range, suitable for all AC voltage2. Super slim size special for ultrathin advertising lighting box.3. Easy for install and no shadow in lighting box.4. Protection: Short circuit, Over load, Over voltage available 5. High stability and low ripple, increase light efficiency 6. Reliability: MTBF >50,000hours 7. Meet to safety standard and EMC8. 100% full load burn-in test keep good quality9. Suitable for LED lighting and moving sign applications10. 2 years warranty, repair rate controlled in 0.3%11. Normal Item keep 5000pcs in Stock for meeting your urgent order| Output Specifications |
| Item | HTB-12V-24W |
| Output voltage | 2.5V±0.5% | Rated Current | 2A |
| Rated Power | 24W | Current Range | 0-2A |
| Voltage Tolerance | ±0.1% | Ripple and Noise(max)
Note.2 | 120mVp-p |
| Load Regulation | ±0.5% | Line Regulation | ±0.5% |
| Hold up time(Typ.) | 50ms/230VAC 16ms/115VAC at full load | Efficiency | >80% |
| Input Specifications |
| Voltage Range | 170-260VAC | Frequency Range | 47~63Hz |
| Setup,Rise time note.6 | 500ms 20ms/230VAC 500ms20ms/115VAC at full load(for 11.6~12.4V);
500ms 20ms/230VAC 500ms20ms/115VAC at full load(for 11.6~12.4V) |
| AC Current | 5.72A/175V 4.4A/230V |
| Inrush Current (max.) | Cold star 4.2A/115V 2.1A/230V |
| Leakage Current | 0.5mA/250VAC |
| Protection |
| Over Current | 105 ~ 150% rated output power |
| Protection type: Hiccup mode, recovers automatically after fault condition is removed |
| Over Voltage | 13.8~16.2V 27.6~32.4V |
| Protection type: Shut down o/p voltage, re-power on to recover. |
| Short Circuit | Auto Recover |
| Protection grade | IP20 |
| Environment |
| Working Temp | -25~40°C Refer to output load derating curve | Working Humidity | 20~95% RH-no condensation |
| Storage Temp/Humidity | -40~+80°C, 10~95% RH | Temp.Coefficient | ±0.03%/°C(0~50°C) |
| Vibration Frequency | 10~500Hz, 2G 10min./1 cycle, period for 60min. each long X, Y, Z axes. |
| Reference Standards |
| Safety Standard | UL60950 879 1310 Class 2, CAN/CSA C22.2 No.222-M91, IP65 approved, Design refer to TUV EN61347-2-13 |
| Withstand Voltage | I/P-O/P:3KVAC |
| Isolation Resistance | I/P-O/P:>100M Ohms / 500VDC / 25°C / 70% RH |
| EMI Condition and Radiation | Compliance to EN55022(CISPR22)Class B |
| Harmonic Current | Compliance to EN61000-3-2,-3 |
| EMC Immunity | Compliance to EN61000-4-2,3,4,5,6,8,11; ENV50204, EN55024, light industry level, criteria A |
| Others |
| MTBF | 732Khrs min. MIL-HDBK-217F (25°C) |
| Housing | Aluminum |
| Cooling | Convection |

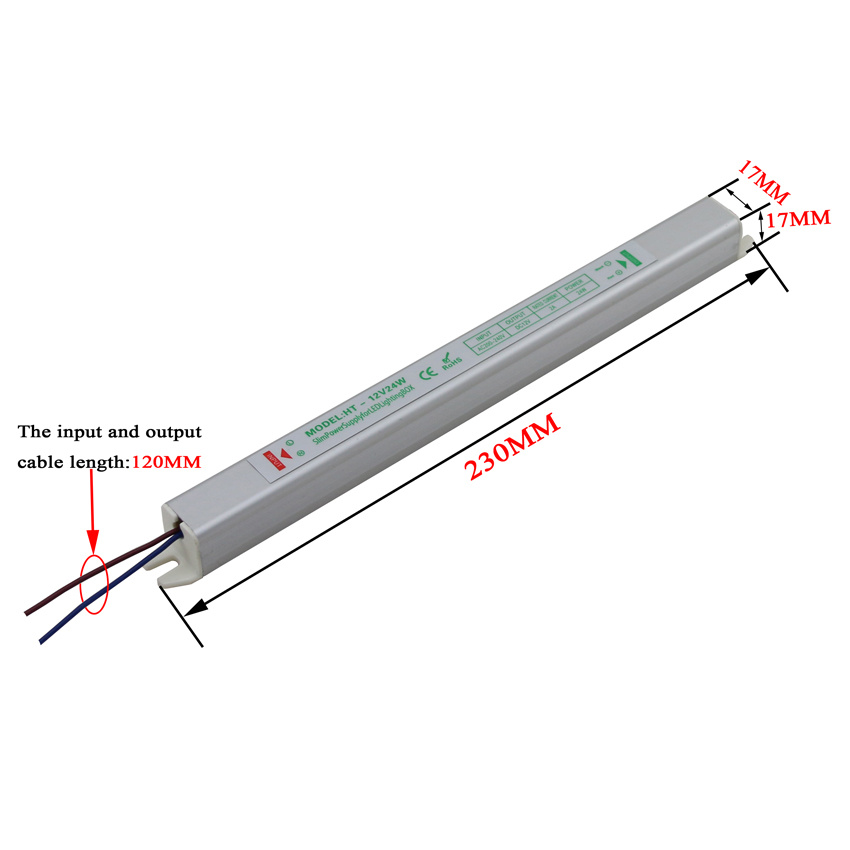

| Product Dimension | 230*17*17mm |
| Product Weight | 0.076kg |
| Packing | 1 PC in a box, 250 boxes in a Carton |
Shenzhen Huatuo Power Industrial Co., Ltd was found in October 2008, which is an high-tech enterprise with the integration of design, development, production and sales for LED power supply. With 9 years development, we have developed the new and patent products in the fields of LED power supply. The main products including: Non waterproof power supply, Slim non waterproof power supply, Aluminum shell rainproof power supply, Aluminum shell waterproof power supply, Plastic shell waterproof power supply, Ultra thin power supply. All the product are widely used in LED city lighting, Hotel, Square, Bridge lighting, Indoor decoration etc. Stable quality and good service of Huatuo have won a good reputation and trust all around our customers.
Huatuo has more than 8000 square meters modern production workshop, morn than 200 employees, 4 imported automatic production lines and 6 modern finished product assembly line. The company is equipped with modern research and development center in Hongkong, Taiwan, with morn than 20 senior R&D engineers of appearance, structure, electronics, software, testing and so on. So far we have successfully developed more than 100 models of LED power supply, more than 50 patent applications, all these products are very popular on domestic market and overseas.
Since the foundation of Huatuo, we consider "Specialty, Quality, Service are our pride". Over the years, 80% of our products are export to all over the world and established stable and long-term cooperation relationship with our customers. As special LED power supply manufacturer, we support OEM and ODM orders. We design and develop the products according to your special request. What's more. Welcome to be our agent of "HUATUO" in your market. We have special technical support, advertising support for our agents.
Thanks for your attention and support, welcome to our company!
