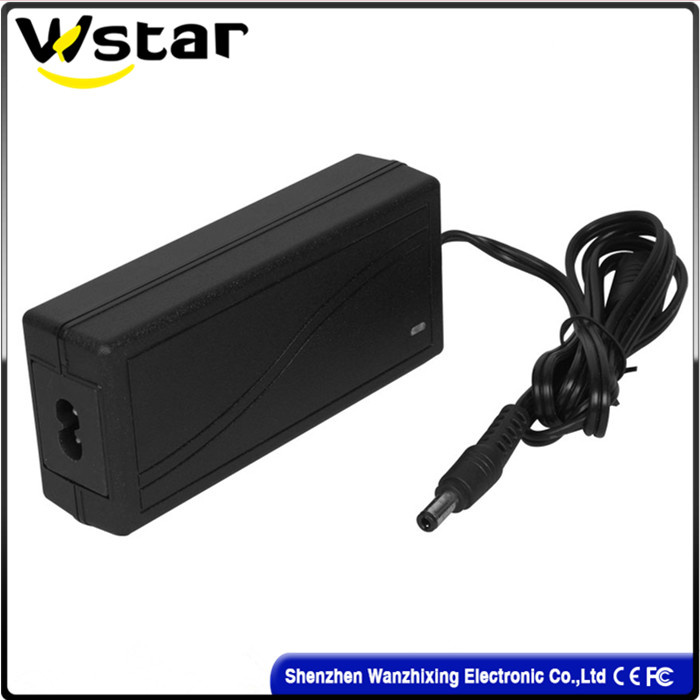

12V 2500mA AC Adapter for DVB

12V 2500mA AC Adapter for DVB
Price: US $ 3.6-3.95/Piece
Min Order: 1/Piece
Pay Type: L/C,T/T,Western Union
Prod Model: Wzx-889
Size: 88*36*28mm
OEM & ODM: Acceptable
Output: 12V/2500mA
Input: 50Hz-60Hz
Shipping: DHL/FedEx/UPS/EMS, by Air, by Sea
Pay Method: Tt,Western Union,L/C
Delivery Detail: Shipped in 10 Days After Payment
Output Type: Single
Warranty: 1 Year
Output Power: 1 - 50W
Connection Mode: Series Switching Power Supply
Starting Mode: Self-excited Switching Power Supply
Voltage Regulating Mode: Width Modulation Type
Power Supplying System: Terminal Power Distribution Equipment
Certification: FCC
Input Voltage: 100V-240V
Brand: Wzx

Product Description

12V 2500Ma AC Adapter For DVB
The Performance Parameters
The input voltage100v-240v  50Hz-60Hz
The output power30w
Commonly used output specifications12v/2500ma
Stand by power consumption 0.3w
The output voltage accuracy± 5%
Reliability
Under the condition of 25ºC rated input and output, The average trouble-free working time 50000 hours(Root tree MIL-HD-217 standard)
Safety,EMC
Conform to theEN60950,En55022,UL,CE,CB Etc
Environmental requirements
working temperature0 ºC -40 ºC maximum load
Storage temperature -20 ºC -60 ºC
 Humidity 0%-95%
 Production Size88*36*28mm
 OtherConsumer Electronics Products, Toys, DVD/ MP3/MP4, IP camera, Antenna Communications products, Wireless AP, Wireless Router, IP phones, Security Systems, Set-top boxes, Health care electronics, LED lighting products and so on.
AC PlugUSA, EU, UK, AU, CN, Japan, Korea optional
MaterialABS+PC
Protection (1)Over voltage protection
(2)Over Current Protection
(3)Short circuit protection
ColorBlack/white and color you want
DC plug/jack/connector:Outer diameter * Inner diameter* Length (O.D*I.D*L),straight and right angle(1)5.5*2.5*12   (2)5.5*2.1*10 (3)4.0*1.2*10   (4)3.5*1.35*10  (5)2.5*0.7*8
(6)available custom
certificateCE  FCC  ROHS
