12V 25n. M 50: 1 DC Gear Motor

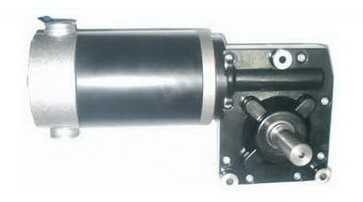

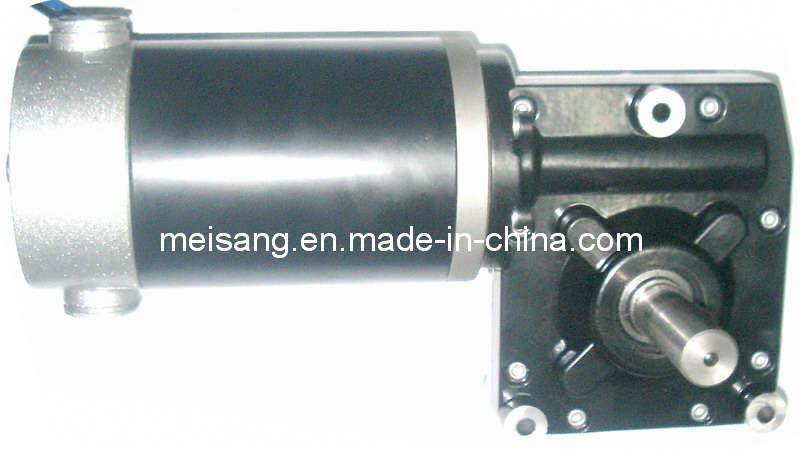

Name: 12V 25n. M 50: 1 DC Gear Motor
Brand: all-electronics-online.com
SKU: 613099654
Availability: InStock
Rating: 4.8 (38 reviews)

Price:	US $ 72-86/Piece
Trade Terms:	FOB,CIF,CIP
Min Order:	50/Piece
Pay Type:	L/C,T/T,Paypal,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	90ZYT150-1250WG50
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Western Europe
Model:	90zyt150-1250wg50
Voltage:	12VDC
Rated Speed:	90rpm
No-Load Speed:	100rpm
Rated Torque:	25n.M
Rated Current:	20A
Gear Ration:	50:1
Structure And Working Principle:	Brush
Operating Speed:	Adjust Speed
Application:	Power Tools
Excitation Mode:	Excited
Brand:	Sunrise Motor
Type:	PMDC Motor

Product Description

PMDC MOTOR
MODEL: 90ZYT150-1250WG50
Voltage: 12VDC
Torque: 25N. M,
Current: 20A,
Rated speed: 90rpm
No-load speed:100rpm
Gear ratio: 50: 1

SPECIFICAL MOTORS CAN BE CUSTOMIZED PER YOUR REQUIREMENTS.

Model	Voltage (V DC)	No Load		Rated Load			Gear Ratio
Model	Voltage (V DC)	Current (A)	Speed (r/min)	Torque (N. m)	Current (A)	Speed (r/min)	Gear Ratio
90ZYT150-1250WG50	12	3.8	100	25	20	90	50: 1
90ZYT155-1250WG50	12	3.8	100	45	38	90	50: 1
90ZYTA144-1251WG50	12	5	102	45	26	94	50: 1
90ZYTA144-1253WG30	12	5	175	30	26	155	30: 1

Changzhou Sunrise Electric Motor Company was founded in 2004 and is located about 200 km west of Shanghai. SUNRISE ELECTRIC MOTOR manufacture and export PMDC motors, BLDC motors, Hybrid Stepping motors with high torque output (0.2N. M - 28N. M), and customized motors which are per customers' drawings, specification and technical requirements. Also, we source and customize products associated with electric motor applications such as, motor controllers and drivers, motor sensing boards (PCB), etc.

The motors introduced can be used for commercial and residential applications such as industrial automation, office equipment, appliances for household, etc.

The motors listed have been exported overseas through our sales representatives in North America and Europe.
