12V 28ah Wholesale SLA Solar System Battery for Home Application

Prod Model:	FG194
Item Name:	12V 28ah Wholesale SLA Solar System Battery
Maintenance Type:	Free
Size:	166*175*125*mm
Weight:	8.3kg/PCS
Material:	Fire Proof Case
Warranty:	3 Years
Terminal:	Copper/Lead
Working Temperate:	-15 to 45
Certificate:	Ce, MSDS
Cell:	6
Type:	Lead-Acid Batteries
Usage:	Electric Bicycle
Nominal Voltage:	12V
Discharge Rate:	High Discharge Rate
Shape:	Square Battery
Rechargeable:	Chargeable

Product Description

12v 28ah 12V 28AH Wholesale SLA Solar System Battery for Home Application

12V28AH Lead Acid Battery

1. Product parameters

Model: TL12260
Certificate: CE, UL, RoHS, MSDS, UN38.3
Voltage: 12V
Capacity: 28Ah
Dimension: 166*175*125*mm(Length× Width× High/Total High)
Net weight: 8.3KG
Quantity per carton: 1PCS
Gross weight per carton: 8.5kg

Applications:

Solar and wind systems Cable TV Telecommunications Wheelchair UPS

Military Equipment Emergency lighting Power Plants Medical Devices Golf Cart

Battery Use and Maintenance:
1) Please use constant-voltage charge.
2) In floating charge, the voltage is 2.23 to 2.27 per unit cell.
3) In cycle use, the voltage is 2.35 to 2.45 per unit cell, the max. Current is no more than 25%° C
4) Please do tighten the bolts to avoid sparkle and poor contact when the battery is in use.
5) Please do not use it near the heat source and open flame.
6) Please keep it at low temperature. Please change it while there is liquid leaking or damage.
Other items:


Style	Size(mm)	Plate	Weight(kg)
SJ12V1.3Ah	97*43*51*57	24	0.53
SJ12V2.6Ah	70*47*99*105	24	0.8
SJ12V5.5Ah	90*70*101*107	36	1.6
SJ12V7Ah	151*65*94*100	48	2.1
SJ12V12Ah	151*98*95*101	72	3.6
SJ12V17Ah	181*77*167*167	48	4.9
SJ12V24Ah	177*165*126*126	66	7.3
SJ12V24Ah	177*165*126*126	42	8.3
SJ12V24Ah	177*165*126*126	42	8.7
SM12V33Ah	196*131*155*180	42	9.2
SM12V40Ah	196*165*175	42	12
SM12V55Ah	229*138*208*227	48	15
SM12V55Ah	229*138*208*227	54	16.5
SM12V65Ah	350*166*175	66	19
SM12V70Ah	350*166*175	72	21
SM12V80Ah	350*166*175	78	22
SM12V90Ah	307*168*208*227	66	25
SM12V100Ah	328*172*222(222)	66	28
SM12V120Ah	406*174*208*233	90	33
SM12V134Ah	340.5*173*280(285)	66	36
SM12V150Ah	483*170*241*241	102	43
SM12V180Ah	532*207*215*240	126	52
SM12V200Ah	522*240*219*244	126	58
SM12V210Ah	522*240*219*228	150	61
SM12V260Ah	522*240*219*228	162	69

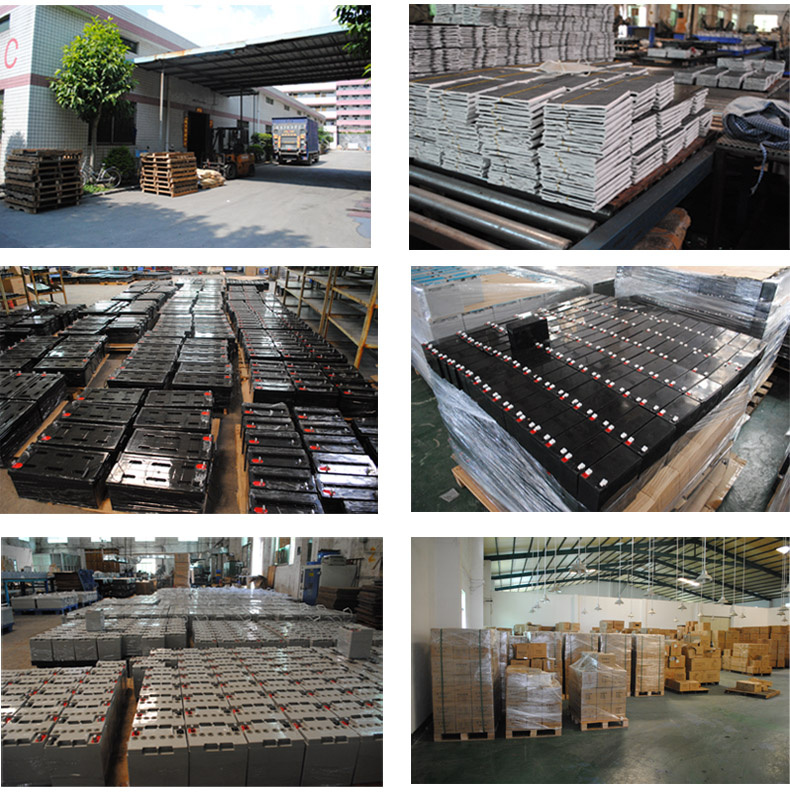

Factory Show:


Packing Details:


Our Services:

 Samples and OEM, Warranty and After-Sale Service:

•  Sample can be provided for quality test.
•  OEM Welcomed
•  Warranty:2 Year
•  After-Sale Service: 24 Hour-Hot Line for Consultacncy and Technical Support

How To Ask for Support if products failure in warranty?
1. Email us about PI number, serial number,Product S/N number,  show us more details such as: pictures, your testing report or video, if it is the quality problem of product itself, we will resend a new one in next order.
2. we will submit your case to our after sales department.
3.Usually within 24 hours, we will email you the best solutions.

Our Qualification:


Payment Terms:

Payment Terms	T/T	EXW	30% T/T in advance, paid the balance before shipment
		FOB
		CFR(C&F)	30% T/T in advance, paid the balance against copy of B/L
		CIF
	L/C	L/C amount above 50,000 usd, we can accept L/C at sight
	West Union	Amount lower than 5000usd
	Paypal
Delivery time	15 working days after receiving payment for one container


FAQ:
Q1: How to choose a right battery?
A1:Tell us your demand, then our sales will recommend a suitable panel to you.
Q2: How about the delivery time?
A2:  7 days for sample; 15 days for bulk order.
Q3: What is the warranty of lead acid battery?
A3: 2 years warranty on FGET-Solar product.
Q4: How to solve the technical problem?
A4: 24 hours after-service consultancy just for you and to make your problem to solve easily.
