| Prod Model: |
QW120-020-S |
| Input Voltage: |
AC100-240V 50/60Hz |
| Voltage: |
12V |
| Current: |
2A |
| Plug-in Type: |
Yes |
| Delivery Date: |
15days |
| Warranty: |
One Year |
| Charger Type: |
Electric Charger |
| Nominal Voltage: |
12V |
| Type: |
Lead Acid Battery |
Product Description

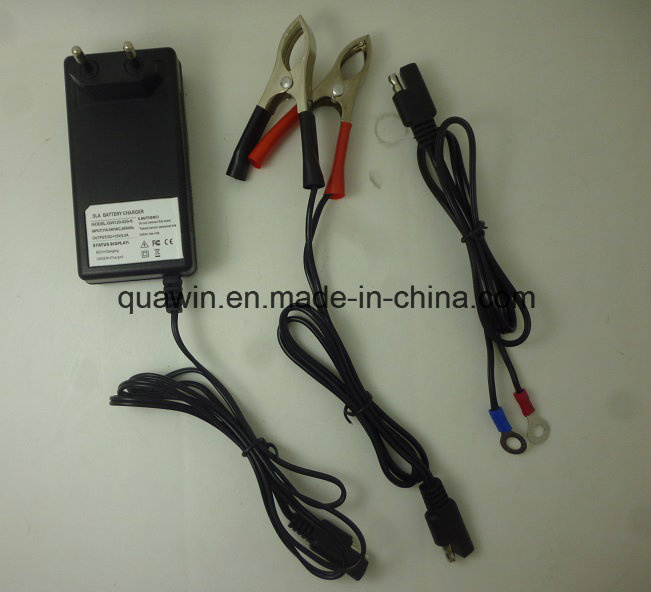

cigarette charger 12v 2a lead acid battery charger
Specification:
| Model | Lead acid battery charger |
| Input | 100-240Vac 50/60Hz |
| Input plug(power cords) | EU---US---UK---AUS---South Korea---Brazil Plugs |
| Battery voltage | 6V/12V/24V/36V/48V/60V |
| Output | 12v2a 24v1a---wall mount type |
| Output Voltage at no load | 6.8-6.9V at no load: 6V battery
13.6-13.8V at no load: 12V battery
20.4-20.7V at no load: 18V battery
27.6-27.8V at no load: 24V battery
41.4-42V at no load: 36V battery
54.4-55.2V at no load: 48V battery |
| Highest Charge Voltage | 7.2-7.3V : 6V battery
14.4-14.8V : 12V battery
21.6-22.2V : 18V battery
29.2-29.6V : 24V battery
43.8-44.4V : 36V battery
58.4-59.2V : 48V battery |
| Charge mode | 3-stage Mode: CC---CV--float mode |
| Led Indicator(Dual Color) | Red---in Charging; Green--Finish charge/ no load |
| Led Switch current | 10-15% of charge current |
| Safe Protection | Over-load protection Over-current protection |
| Short circuit protection Polarity Reverse Protection |
| Safe Certificate | CE |
| Efficiency | >80% |
| Output Connector | DC jack, XLR, JST, Cigar Lighter, Alligator Clips,Viation Plug.etc |
| Power Consumption | ≤0.5W at Rated Voltage(adapter at no load) |
| Ripple And Noise | Output voltage 1%, Ripple&Noise≤120mv |
| High-Voltage test | Primary to secondary: 3 kV / 5mA 60S |
| Leakage Current | 0.5mA(max) at input 240V AC |
| Drop Test | 0.75m drop test, 6 times |
| Burn-In Test | 100% load, 5hours |
| MTBF | 50,000 hours@ 25°C |
| Application | UPS, E-bike, Motor, Solar systems, Torch, Lamps.etc. |
Features:
100V-240V AC input for worldwide power support.
Full auto 3 satges( CC+CV(H)+CV(F) ) charging process,
Constant charging current for faster charging, save you much more time.
Stabilized output;low rippple
It can charge any 12V SLA/VRLA/GEL/AGM battery with capacity 7-12Ah.
Specification:
Input: AC 100-240V 50-60Hz 1.0A
Output: DC 13.8
Charging current: 2A
Weight: 350g(only body)
Safety protections:
Over Voltage protection
Short Circuit protection
Polarity error protection
Over power protection
The charger turn trickle-off charging mode if battery is full (1/10C), and indicate by LED:
Charging ----- Red LED
Battery Full -- Green LED
Call us to know more details datasheet.
Warning:
Charge 12V lead acid battery/SLA/VRLA/GEL/AGM rechargeable battery only.
Don't expose the product to rain or humidity to prevent from electric shock.
It is normal if the product gets slightly hot when using.
Keep the product out of children's reach.
Don't remove the cover to prevent from being electric shocke
