12V 2A 24W Power Adaptor (DOE VI, COC Tire 2)

Name: 12V 2A 24W Power Adaptor (DOE VI, COC Tire 2)
Brand: all-electronics-online.com
SKU: 819862485
Availability: InStock
Rating: 4.7 (145 reviews)

Price:	Negotiable/Piece
Min Order:	2000/Piece
Pay Type:	T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	KSA-24W
Usage:	Network Terminal, Information Tech Equipment
Output Type:	DC
Connection:	Plug In
Color:	Black, White
Type:	OEM, ODM

Product Description

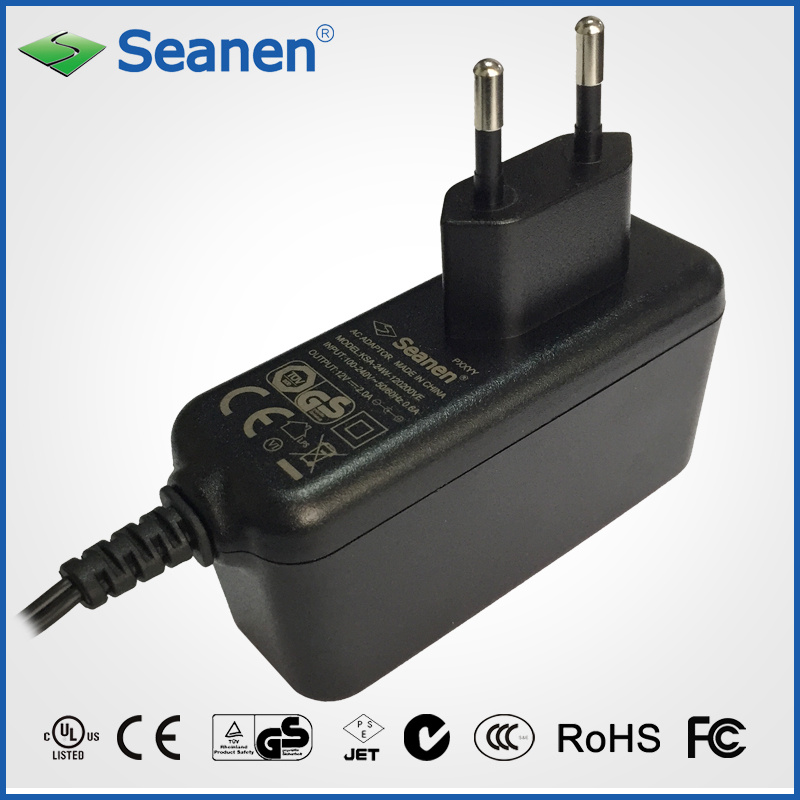

12V 2A 24W EU Power Adaptor

1) Rated Input: 100-240V AC, 50/60Hz
2) Operating range: 90-264V AC, 47-63Hz
3)Output: 12VDC 2A 24W
4) RoHS, PAHs, REACH, WEEE compliant
5) Energy efficiency: DOE VI, COC Tire 2
6) Input current: 0.25A max
7) Power consumption (no loading): 0.075W Max
8) Leakage Current: 0.25mA max
9) Load regulation: ± 5%
10) Ripple and noise: <150MVP-p
11) MTBF: 50K hours at 25'C
12) Safety standard: EN 60950-1, CSA C22.2, UL60950

Safety Approvals
UL/cUL/GS/CE/CB/SAA/CCC/PSE

Protections
1) Short circuit protection
2) Over voltage protection
3) Over current protection

Envionmental requirements
1) Operating Temperature: 0-40°C
2) Storage Temperature: -25°C+80°C
3) Operating Relative humidity: 10-90% RH

SPECIFICATION
Input	Input voltage	90-264VAC
	Frequency range	47-63Hz
	leakage current	0.25mA max
	Power consumption (no loading)	0.075W Max
	Energy efficiency	DOE VI, COC Tire 2
Output	Voltage	12VDC
	Current	2A
	Power	24W
	Load regulation	+/-5%
	Hold-up time	7ms minimun at 115V AC / full load
Connector	DC cable	2468 2C 6FT or others
Connector	DC plug	Per customer request
Protections	Short circuit protection	Yes
	Over voltage protection	Yes
	Over current protection	Yes
Envionmental requirements	Operating Temperature	0-40°C
	Storage Temperature	-25°C+80°C
	Operating Relative humidity	10-90% RH
Others	MTBF	50K hours at 25'C
	Led indicator	/
	Size	89.03344.5mm (LWH)
Safety Approvals	UL/cUL/GS/CE/CB/C-TICK/CCC/PSE/EMC
Standards	UL60950-1,IEC/EN60950-1,AS/NZS60950-1,J60950,FCC part 15 class B
Compliance	RoHS, PAHS, REACH, WEEE

Company Brief Introduction:

Seanen is a technology company specializing in developing, manufacturing and marketing high quality AC/DC adaptors, switching power supplies and chargers. Being professional and dedicated to the industry, Seanen is aim to provide the highest standard products combined with extra safe, high efficiency, high stability ,cost effective and environment-friendly.

Our standard products cover the full range items,from 0.5W to 120W output power,
safety approved including UL/cUL, TUV-GS, CE, C-TICK, PSE, K-mark, CCC, EMC and FCC etc.
compliant with DOE VI, RoHS, PAHs, REACH and WEEE.,

we can also offer customized service to design the optimal solution to meet the most exacting requirements that your applications demand and put into production promptly.

Based on first-class products, competitive price and excellent service, we believe it will be a long term business relationship once you work with us.

Seanen, your reliable power partner.

Established in 1999, Seanen is a technology company specializing in developing, manufacturing and marketing high quality AC/DC adaptors, switching power supplies, chargers and LED drivers. Being professional and dedicated to the industry, Seanen is aim to provide the highest standard products combined with extra safe, high efficiency, high stability, cost effective and environment-friendly.

Our factory covers more than 15, 000 square meter of production space, staffed with more than 1, 000 skilled employees, with a capacity of 50K units per day. Our highly vertical integration manufacturing covers from moulding to plastic injection, metal parts, SMD, PCB assembly, aging test, ICT test etc, so as to ensure the stable high quality, competitive price and punctual delivery.

Our standard products cover the full range items from 0.5W to 120W output power, and safety approved including UL/cUL, TUV-GS, CE, C-TICK, PSE, K-mark, CCC, EMC and FCC etc. Our products compliant with CEC V, RoHS, PAHs, REACH and WEEE., we can also offer customized service to design the optimal solution to meet the most exacting requirements that your applications demand and put into production promptly.

Based on first-class products, competitive price and excellent service, we believe it will be a long term business relationship once you work with us. Seanen, your reliable power partner.
