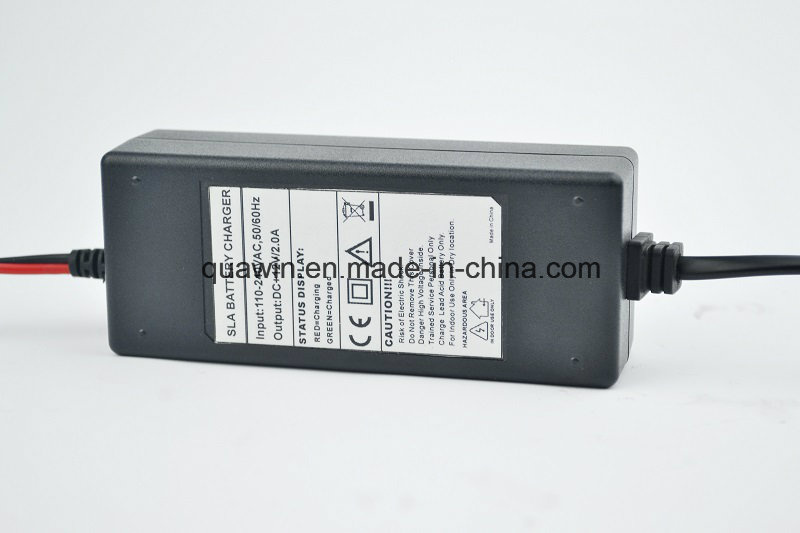

12V 2A SLA Battery Charger

Name: 12V 2A SLA Battery Charger
Brand: all-electronics-online.com
SKU: 796998255
Availability: InStock
Rating: 4.7 (23 reviews)

Price:	Negotiable/Piece
Min Order:	200/Piece
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	QW120-020-S
Input Voltage:	AC100-240V 50/60Hz
Desktop Type:	Yes
Voltage:	12V
Delivery Date:	15days
Warranty:	One Year
Charger Type:	Electric Charger
Nominal Voltage:	12V
Type:	Lead Acid Battery
Socket Type:	Can Be Customized

Product Description

12V 2A 1A SLA/AGM/VRLA /GEL charger

Features:
100V-240V AC input for worldwide power support.
Full auto 3 satges( CC+CV(H)+CV(F) ) charging process,
Constant charging current for faster charging, save you much more time.
Stabilized output;low rippple
It can charge any 12V SLA/VRLA/GEL/AGM battery with capacity 7-12Ah.

Specification:
        Input: AC 100-240V 50-60Hz 1.0A
        Output: DC 13.8
        Charging current: 1.8A
        Weight: 150g(only body)

ITEM	UNIT	SPECIFICATION
Rating Input Voltage	V ac	100~240Vac 50/60Hz
Item Model		QW120-020-S
Rating output voltage	V dc	13.9
Output voltage range	V dc	10 ~ 15
Charging current	A	1.8A± 0.2A
Suit with Battery type		12V 12~20Ah VRLA
Charge End condition		I < 0.45A or V>14.9V
Charge Mode		Auto 3 stages CC+CV(H)+CV(L)
LED indicator (Bi-color)		Red: charging Green: finished/idle
Output Shorted protect	-	YES
Output Reversed protect		YES
Max. output power	W	30
Efficiency	%	>80%

Safety protections:
Over Voltage protection
Short Circuit protection
Polarity error protection
Over power protection
The charger turn trickle-off charging mode if battery is full (1/10C), and indicate by LED:
Charging ----- Red LED
Battery Full -- Green LED
Call us to know more details datasheet.

Warning:
Charge 12V lead acid battery/SLA/VRLA/GEL/AGM rechargeable battery only.
Don't expose the product to rain or humidity to prevent from electric shock.
It is normal if the product gets slightly hot when using.
Keep the product out of children's reach.
Don't remove the cover to prevent from being electric shocke
